A9160009 Switch cap

A9160009

Switch cap

For rocker switch-application.

Supply

1 switch cap

  • To be used for
  • View Customising Options

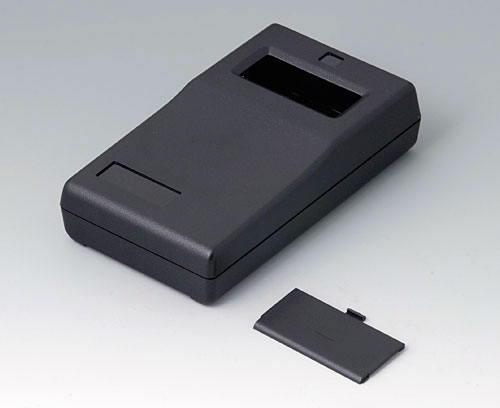

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060009

HAND-HELD-BOX P, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
145x80x36.5mm

Customising options for A9160009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
