AltText

A4240008

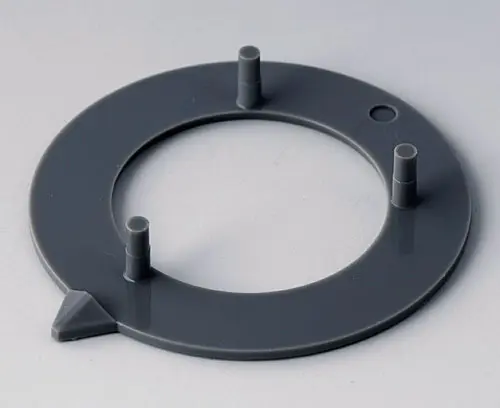

Arrow disk 40

Suitable for round knob 40. Arrow disk simply to pin up.

Supply

1 arrow disk

  • To be used for
  • View Customising Options
AltText

A2540060

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2540060

ROUND KNOB 40, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
40x15mm
Bore hole 6mm
AltText

A2540068

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2540068

ROUND KNOB 40, without line
product added to your list
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Bore hole 6mm
AltText

A2540080

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,8 Nm, function = 1,8 Nm.

Supply 1 round knob

Close

A2540080

ROUND KNOB 40, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
40x15mm
Bore hole 8mm
AltText

A2640060

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2640060

ROUND KNOB 40, with line
product added to your list
ABS (UL 94 HB)
black RAL 9005
40x15mm
Bore hole 6mm
AltText

A2640068

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2640068

ROUND KNOB 40, with line
product added to your list
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Bore hole 6mm

Customising options for A4240008

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
dusty grey RAL 7037
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
