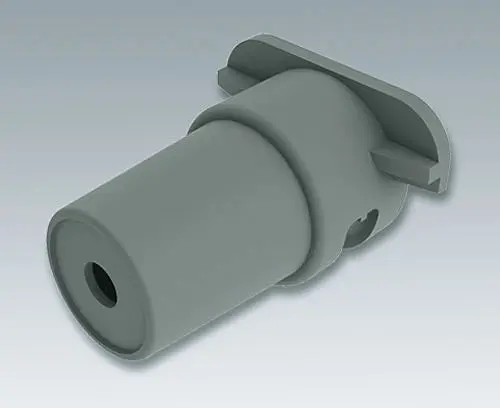

B2610121 Cable strain, 3.4 - 4.2

B2610121

Cable strain, 3.4 - 4.2

For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version

For cables Ø 3.4 - 4.2 mm

Supply

1 cable bushing

  • To be used for

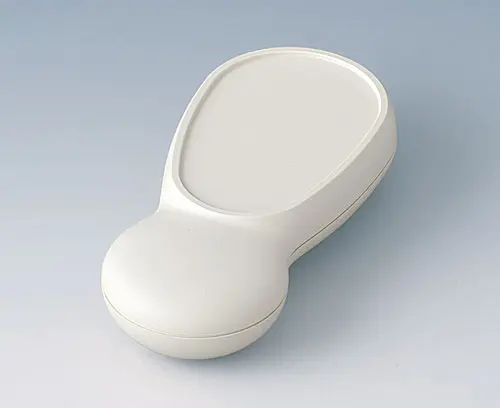

B2510107 BLOB UNIT

B2510107

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2510107

BLOB UNIT
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
130x60x30mm
IP 54 opt.

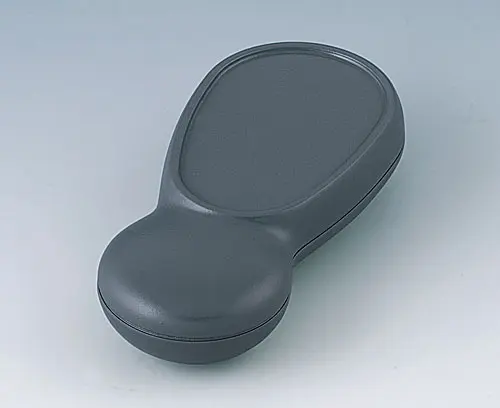

B2510108 BLOB UNIT

B2510108

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2510108

BLOB UNIT
product added to your list
ABS (UL 94 HB)
lava
130x60x30mm
IP 54 opt.

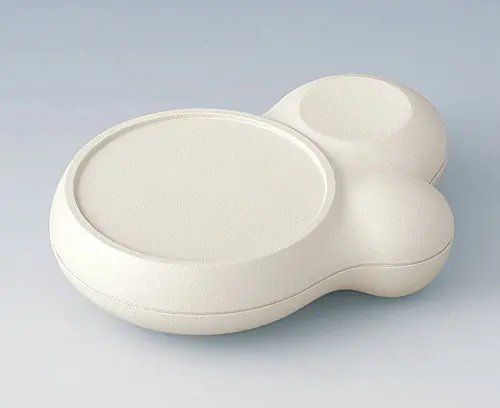

B2512107 BLOB CONTROL

B2512107

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2512107

BLOB CONTROL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
114x76x31mm
IP 54 opt.

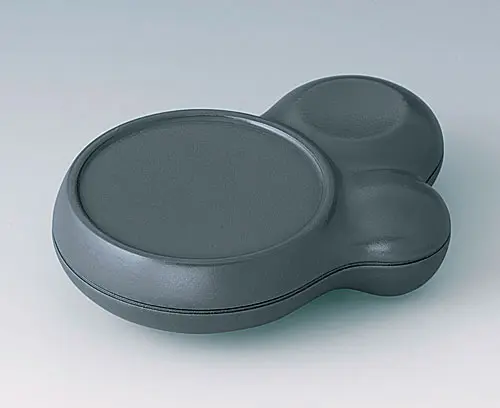

B2512108 BLOB CONTROL

B2512108

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2512108

BLOB CONTROL
product added to your list
ABS (UL 94 HB)
lava
114x76x31mm
IP 54 opt.
B2514107 BLOB PANEL

B2514107

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2514107

BLOB PANEL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
200x165x36mm
IP 54 opt.

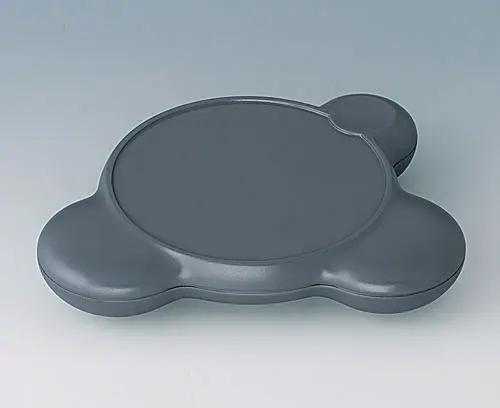

B2514108 BLOB PANEL

B2514108

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Close

B2514108

BLOB PANEL
product added to your list
ABS (UL 94 HB)
lava
200x165x36mm
IP 54 opt.
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
volcano
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
