CARRYTEC L

Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, compatible with VESA standard (100 x 100 mm). Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply

Top and bottom parts, TPE handle pad, assembly kit

  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Close

A9338218

Battery compartment kit, 5 x AA
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
93x98mm
IP 54

Accessory "station"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male
product added to your list
gold-plated
B4308228 Base plate for station

B4308228

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Close

B4308228

Base plate for station
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
B4313218 Station L

B4313218

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Close

B4313218

Station L
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
B4313248 Adapter for Station L

B4313248

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Close

B4313248

Adapter for Station L
product added to your list
ASA+PC-FR (UL 94 V-0)
lava

Accessory "protection"

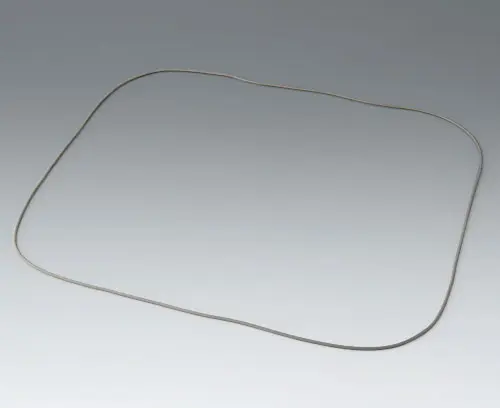

B4313001 Sealing L

B4313001

Sealing L For raising the protection class IP 54 of the CARRYTEC L.

Supply 1 sealing

Close

B4313001

Sealing L
product added to your list

Accessory "wall/holder"

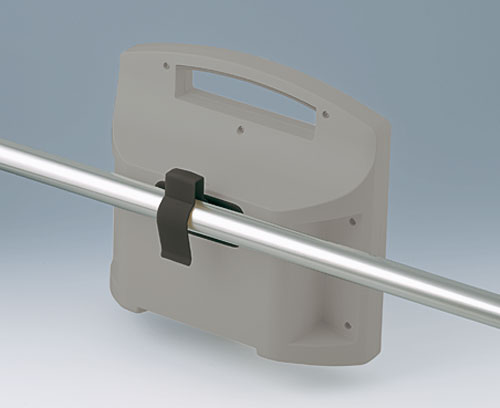

B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Close

B4308238

Holding clamps
product added to your list
PA 6
lava

Accessory "carrying"

B4308309 Brackets

B4308309

Brackets Universal accessory for mounting a shoulder strap or something equivalent (separate article). Allows comfortable case carrying.
Fixing in 2 mounting holes: hole distance 17.3 mm, ø 6.5 mm. Minimum wall thickness of 3 mm necessary.

Supply 2 brackets, 4 screws and 4 washers

Close

B4308309

Brackets
product added to your list
Plastic
black RAL 9005
K0300012 Shoulder strap 330 / 340

K0300012

Shoulder strap 330 / 340 The shoulder strap can be used for carry cases 330 and 340 as well as Carrytec enclosures with separate brackets (B4308309). The upholstered strap is wedge-shaped in order to prevent the strap from slipping off the shoulder, and ensures optimum load distribution. The shoulder strap can easily be adjusted to the size of the user.

Samples free of charge are not available.

Supply 1 shoulder strap

Close

K0300012

Shoulder strap 330 / 340
product added to your list
black
1600x55x5mm

Accessory "screws"

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
product added to your list
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your list

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male
product added to your list
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178008

Contacts, female
product added to your list
gold-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Close

A9193042

Mounting plates for contacts
product added to your list
ABS (UL 94 HB)
black RAL 9005
A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Close

A9193044

Contacting kit, 6-pin
product added to your list
ABS (UL 94 HB)
black RAL 9005

Customising options for B4213208

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Colour
Enclosure lava,
Handle pad orange
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
348 mm
Height
303 mm
Depth
117 mm
PCB length, base
310 mm
PCB width, base
213 mm
PCB length, top
305 mm
PCB width, top
216 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
1211 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
