A3223003

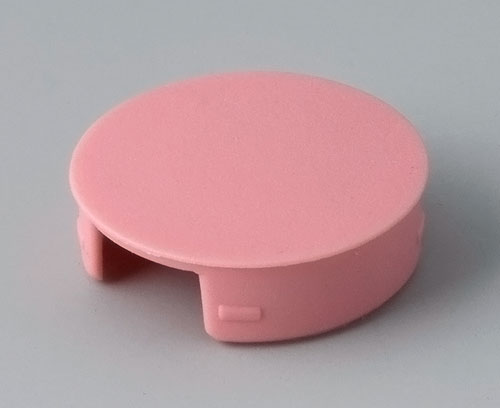

Cover 23

Suitable for COM-KNOB 23. Cover simply to pin up.

Supply

1 cover

  • Components/Accessories
  • View Customising Options

System components to complete

AltText

A3023048

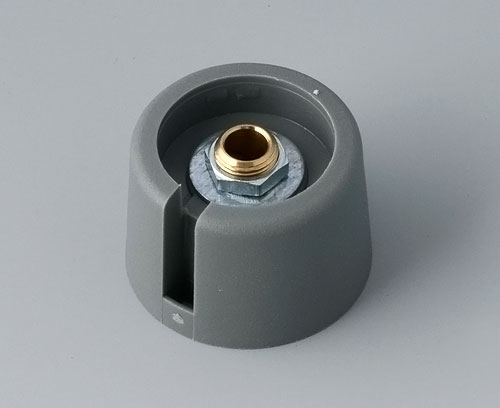

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023048

COM-KNOBS 23, with recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 4mm
AltText

A3023049

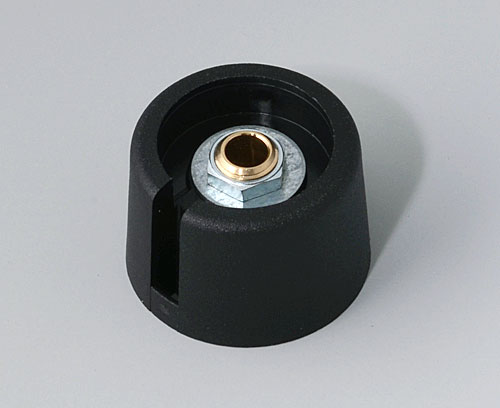

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023049

COM-KNOBS 23, with recess
product added to your list
PA 6
nero
23x16mm
Bore hole 4mm
AltText

A3023068

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023068

COM-KNOBS 23, with recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 6mm
AltText

A3023069

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023069

COM-KNOBS 23, with recess
product added to your list
PA 6
nero
23x16mm
Bore hole 6mm
AltText

A3023638

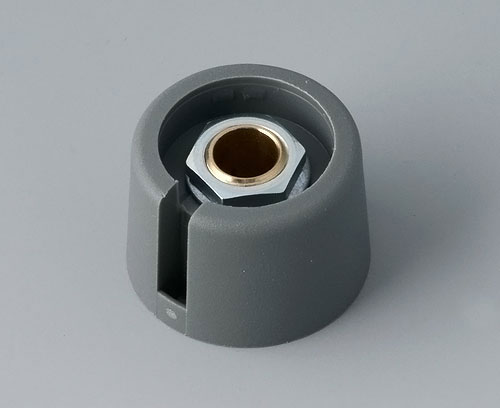

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023638

COM-KNOBS 23, with recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 1/4″
AltText

A3023639

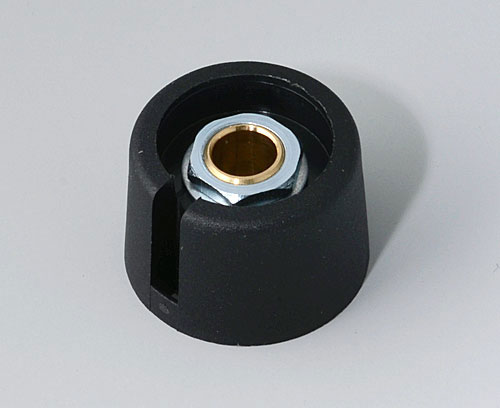

COM-KNOBS 23, with recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (with recess)

Close

A3023639

COM-KNOBS 23, with recess
product added to your list
PA 6
nero
23x16mm
Bore hole 1/4″
AltText

A3123048

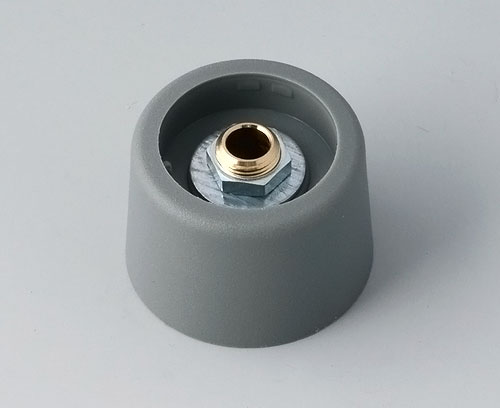

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123048

COM-KNOBS 23, without recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 4mm
AltText

A3123049

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123049

COM-KNOBS 23, without recess
product added to your list
PA 6
nero
23x16mm
Bore hole 4mm
AltText

A3123068

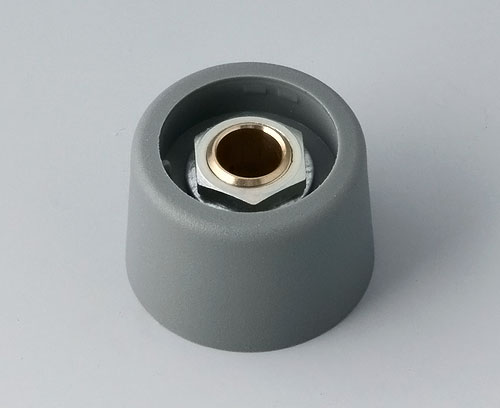

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123068

COM-KNOBS 23, without recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 6mm
AltText

A3123069

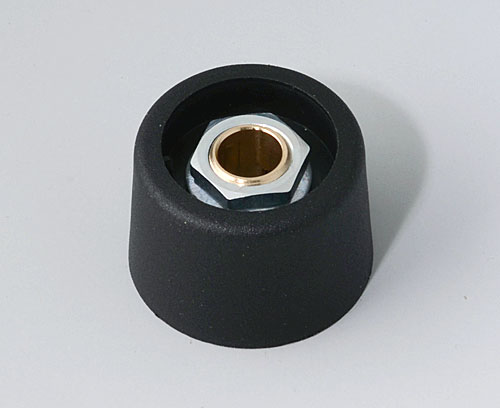

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123069

COM-KNOBS 23, without recess
product added to your list
PA 6
nero
23x16mm
Bore hole 6mm
AltText

A3123638

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123638

COM-KNOBS 23, without recess
product added to your list
PA 6
volcano
23x16mm
Bore hole 1/4″
AltText

A3123639

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3123639

COM-KNOBS 23, without recess
product added to your list
PA 6
nero
23x16mm
Bore hole 1/4″

Customising options for A3223003

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Colour
coral
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
