A2416030 SPINDLE-SHAPED KNOB 16, with line

A2416030

SPINDLE-SHAPED KNOB 16, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.5 Nm, function = 0.5 Nm.

Supply

1 spindle-shaped knob

  • Components/Accessories
  • View Customising Options

System components to complete

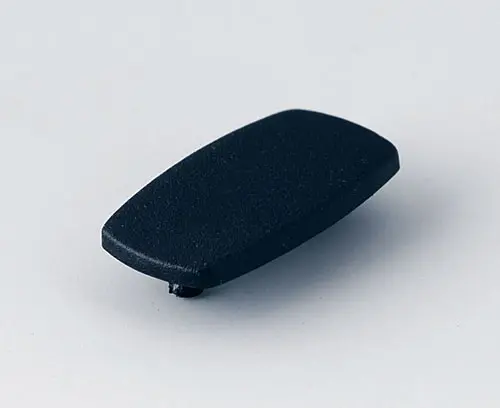

A5016000 Cover 16, without line

A5016000

Cover 16, without line Suitable for spindle-shaped knob 16. Cover simply to pin up.

Supply 1 cover

Close

A5016000

Cover 16, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
A5016100 Cover 16, with line

A5016100

Cover 16, with line Suitable for spindle-shaped knob 16. Cover simply to pin up. White marking.

Supply 1 cover

Close

A5016100

Cover 16, with line
product added to your list
ABS (UL 94 HB)
black RAL 9005

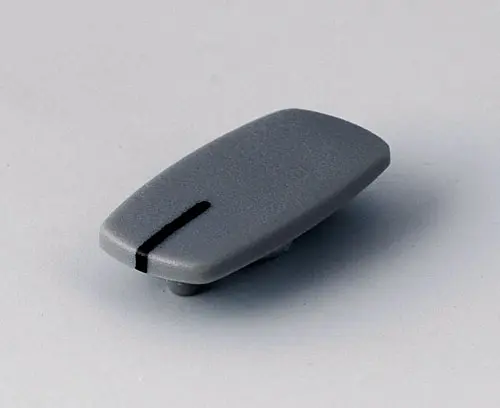

A5016108 Cover 16, with line

A5016108

Cover 16, with line Suitable for spindle-shaped knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Close

A5016108

Cover 16, with line
product added to your list
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

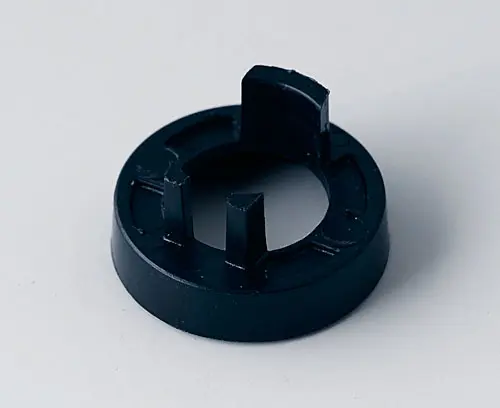

A5116000 Nut cover 16, without line

A5116000

Nut cover 16, without line Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply 1 nut cover

Close

A5116000

Nut cover 16, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75 For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shape knobs from ø 10.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your list
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75 For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shape knobs from ø 10.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your list
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers to screens. Fits under knob and nut cover. Suitable for round, wing and spindle-shaped knob from ø 10.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your list
A6300000 Spanner

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Close

A6300000

Spanner
product added to your list

Customising options for A2416030

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Diameter
16 mm
Height
16 mm
Bore hole
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3.7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
