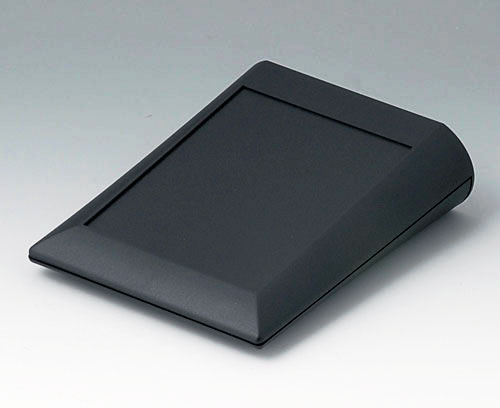

A0612009 COMTEC 120 F, Vers. I


COMTEC 120 F, Vers. I

Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.


Without battery compartment


1 top and bottom part, assembly kit

  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

B1350048 Wall suspension elements


Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit



Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A9199008 Set of screws


Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws



Set of screws
product added to your list

Customising options for A0612009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
120 mm
150 mm
42.8 mm
PCB length, base
128 mm
PCB width, base
94 mm
PCB length, top
137 mm
PCB width, top
105 mm
Keypad length
109.85 mm
Keypad width
87.85 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
132 g
Customs tariff number
(OKW product)
Country of manufacture
