B4030317

DATEC-TERMINAL L, Vers. III

Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version

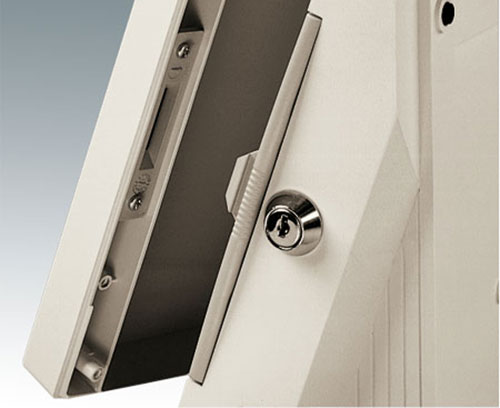

Machined for assembly of hinge, quick-action lock and keylock

Supply

1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B4030317

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory to complete

B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

B4016671

Cover strip M / L
product added to your list

transparent
B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

B4016677

Cover strip M / L
product added to your list

off-white RAL 9002
B4030417 Lid L closed, flat

B4030417

Lid L closed, flat Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

B4030417

Lid L closed, flat
product added to your list

off-white RAL 9002
268x62x24mm
B4030617 Cover L, flat

B4030617

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4030617

Cover L, flat
product added to your list

off-white RAL 9002
302x220x29mm
B4030621 Cover L, flat

B4030621

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4030621

Cover L, flat
product added to your list

transparent
302x220x29mm
B4030631 Cover L, convex

B4030631

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

B4030631

Cover L, convex
product added to your list

transparent
302x220x29mm
B4030637 Cover L, convex

B4030637

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

B4030637

Cover L, convex
product added to your list

off-white RAL 9002
302x220x29mm
B4030657 Cover L, high

B4030657

Cover L, high Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

B4030657

Cover L, high
product added to your list

off-white RAL 9002
302x220x50mm
B4130116 Front panel LH

B4130116

Front panel LH Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

B4130116

Front panel LH
product added to your list

matt anodised
262x209x2mm

Accessory "wall/holder"

B4130147 Wall suspension element L

B4130147

Wall suspension element L Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

B4130147

Wall suspension element L
product added to your list

galvanized
214x260x12mm

Customising options for B4030317

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: cover / cover convex and closed lid
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
302 mm
Depth
272 mm
Height
101 mm
PCB length, base
255 mm
PCB width, base
258 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
606 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4030317 and don't forget to request a quotation!
