B3115167 Sloping control panel S

B3115167

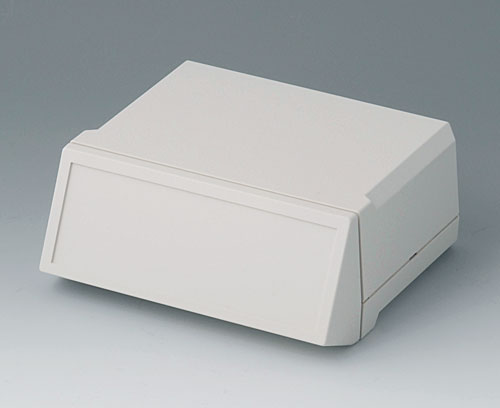

Sloping control panel S

Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply

1 sloping control panel

  • To be used for
  • View Customising Options
B3015127 MOTEC S, flat/high

B3015127

MOTEC S, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Close

B3015127

MOTEC S, flat/high
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
155x105x65mm
IP 40

Customising options for B3115167

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
off-white RAL 9002
Keypad length
137.8 mm
Keypad width
46.8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
46 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
