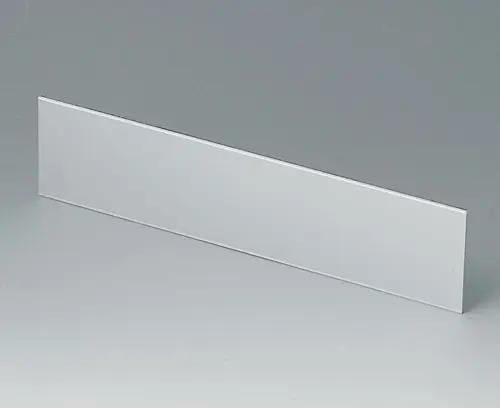

B3120100 Front / rear panel M

B3120100

Front / rear panel M

Suitable for MOTEC M B3020117 with flat base and top part.

Supply

1 front panel

  • To be used for
  • View Customising Options

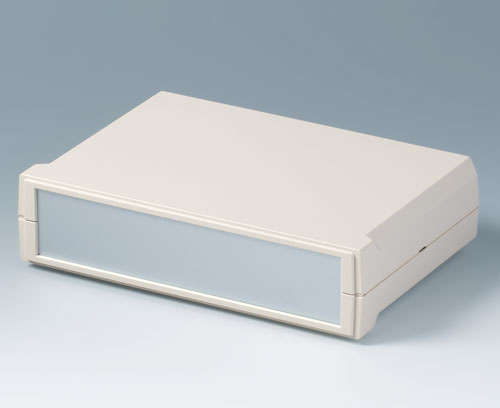

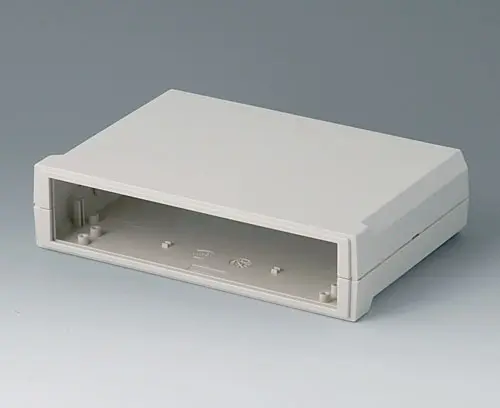

B3020117 MOTEC M, flat/flat

B3020117

MOTEC M, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Close

B3020117

MOTEC M, flat/flat
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
205x140x50mm
IP 40

Customising options for B3120100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
185 mm
Height
42 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
30 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
