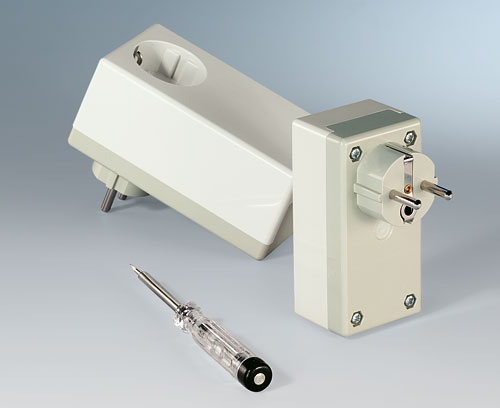

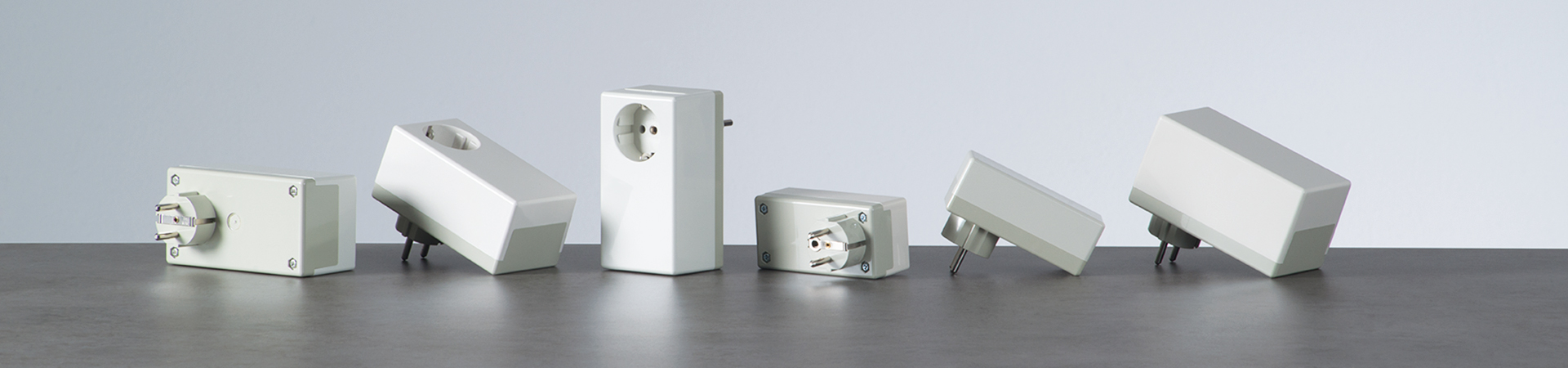

Plug Cases

Enclosures with integrated plug

Our PLUG CASES provide an extremely functional solution for your electronics: robust and impact resistant.

  • plastic enclosures in flame-resistant material (UL 94 V-0)
  • country-specific  versions “Germany” and “France”
  • German version also with integrated socket
  • robust and impact-resistant material; the ball-thrust hardness test is performed at 125°C
  • internal fastening pillars for PCBs; four self-tapping screws are included
  • protection class IP 40

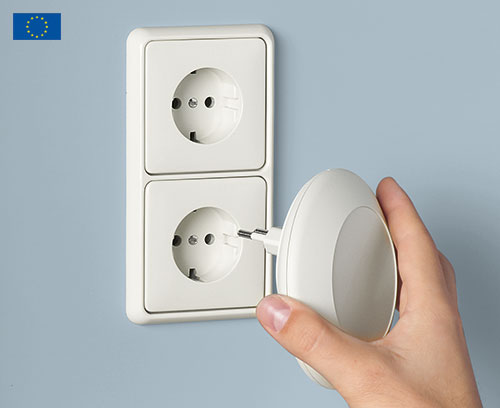

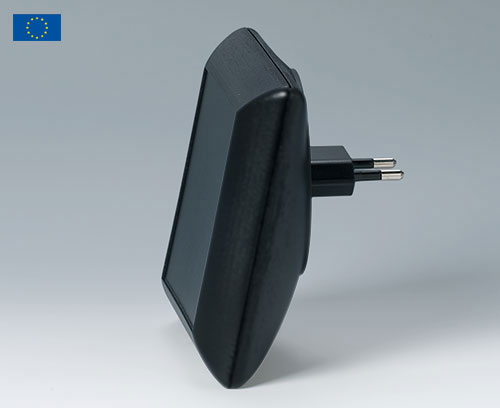

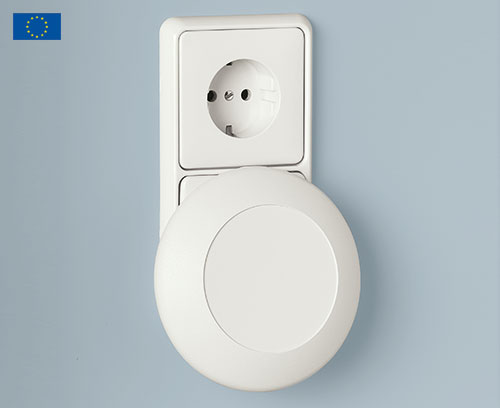

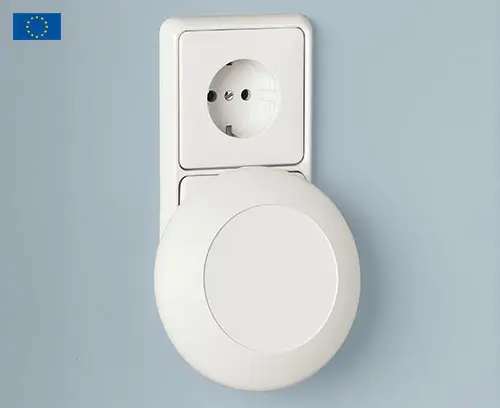

For enclosures with integrated Euro plugs please refer to our ART-CASE range

Application fields

  • Units with direct mains supply for controllers, signaling, switches, networks etc.
  • Browse Full List
  • Accessories
  • View Customising Options
AltText

A9011665

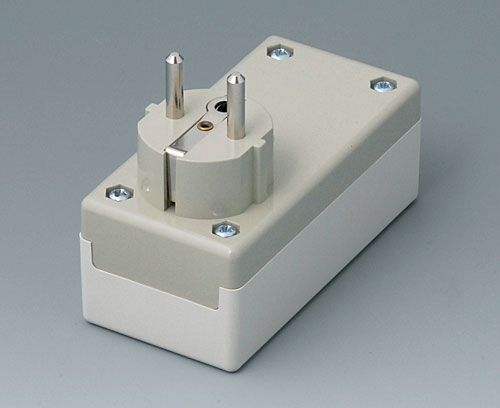

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Close

A9011665

PLUG CASE F / D, Vers. I
product added to your list
PC+ABS (UL 94 V-0)
off-white RAL 9002
100x50x40mm
AltText

A9021665

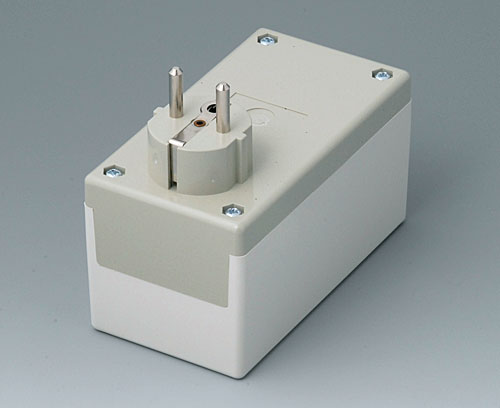

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Close

A9021665

PLUG CASE F / D, Vers. I
product added to your list
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x65mm
AltText

A9022465

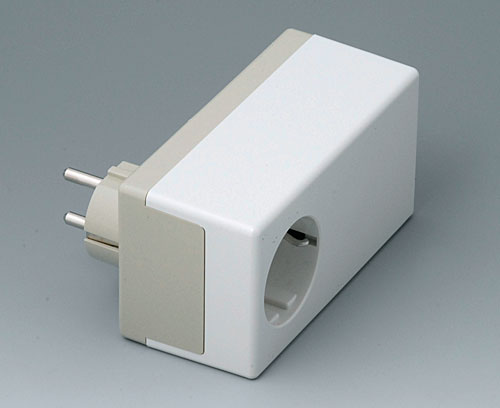

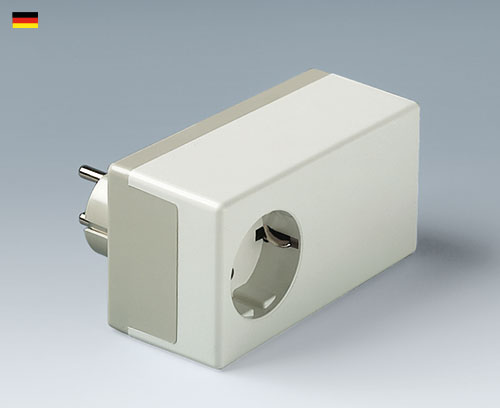

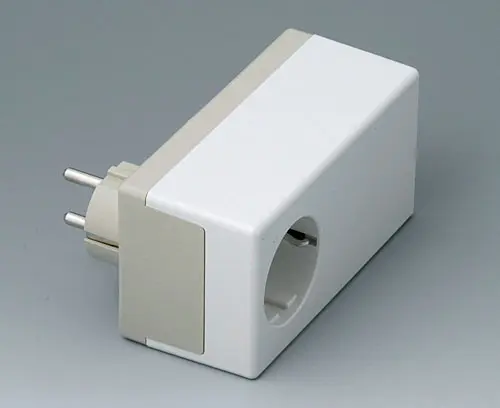

PLUG CASE D, Vers. II Two-part plug case, German version. Fixing towers for the PCB assembly.

Version With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply 1 top part with integrated socket and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Close

A9022465

PLUG CASE D, Vers. II
product added to your list
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x55mm
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
AltText

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your list
AltText

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your list
Stainless steel

Customising options for Plug Cases

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
