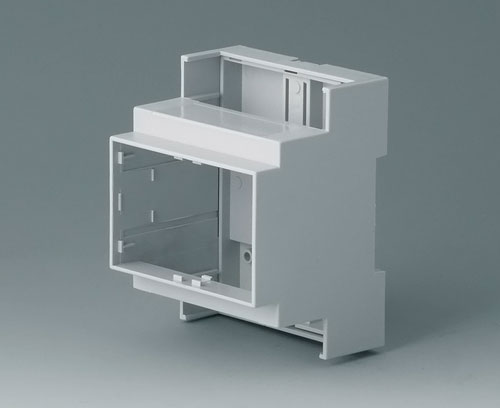

B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version

Front open, connection side with free through passage

Supply

1 bottom part, 2 clips, 1 top part

  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

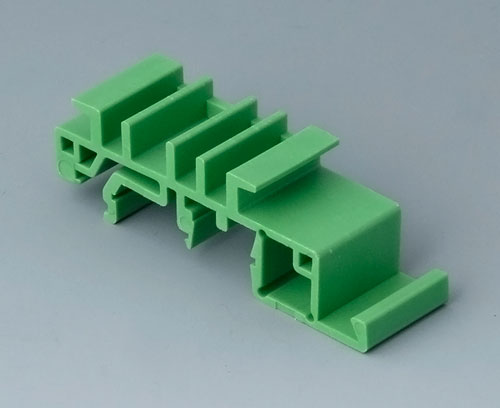

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Close

B6811542

Adapter
product added to your list
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Close

B6601222

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Close

B6601223

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Close

B6602222

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)

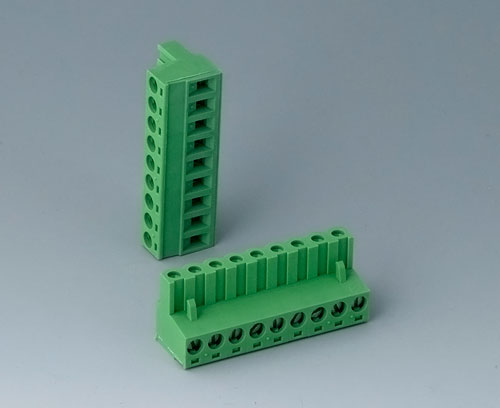

B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Close

B6602223

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)
B6603222 Plug header, block 5.08

B6603222

Plug header, block 5.08 Male terminal block, 5.08. 12-pin.

Supply 1 piece

Close

B6603222

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)

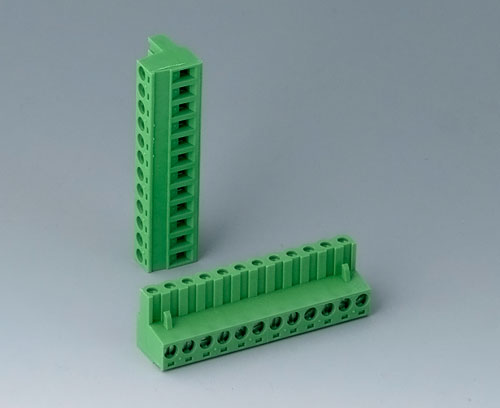

B6603223 Plug header, block 5.08

B6603223

Plug header, block 5.08 Female terminal block, 5.08. 12-pin.

Supply 1 piece

Close

B6603223

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Close

B6606222

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)

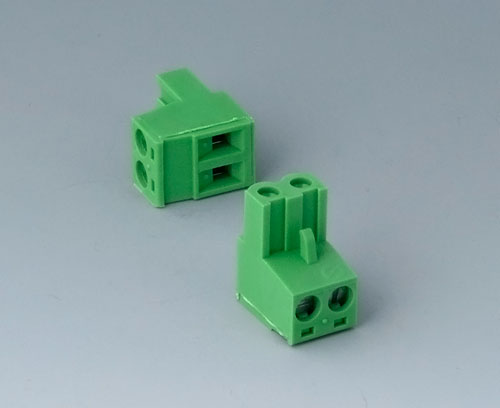

B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Close

B6606223

Plug header, block 5.08
product added to your list
PA 6 (UL 94 V-0)

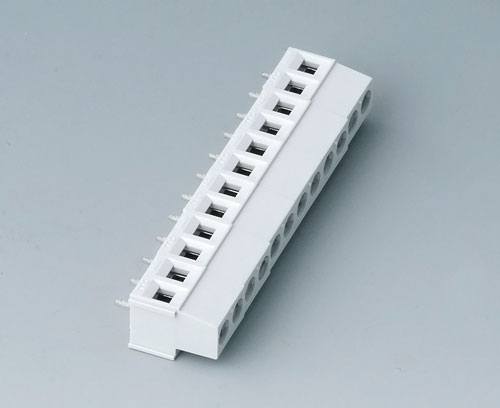

B6803650 Terminal block, block 5.08

B6803650

Terminal block, block 5.08 PCB terminal block, 5.08. 12-pin.

Supply 1 piece

Close

B6803650

Terminal block, block 5.08
product added to your list
PA 68 (UL 94 V-0)
light grey

Accessory "terminal guards"

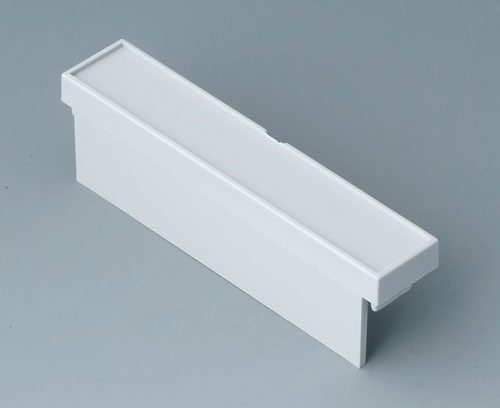

B6803111 Terminal guards, closed

B6803111

Terminal guards, closed Easy assembly through snap-in installation of the case parts.

Version Closed

Supply 1 piece

Close

B6803111

Terminal guards, closed
product added to your list
PC (UL 94 V-0)
light grey

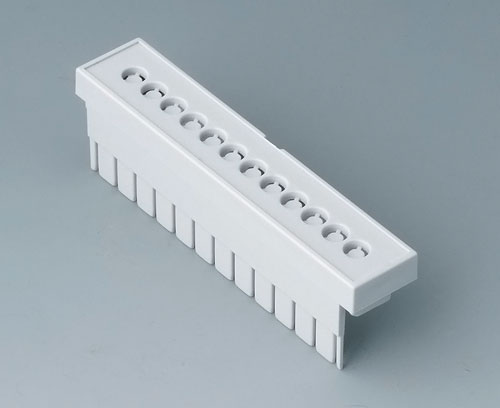

B6803112 Terminal guards, perforated, 5.08

B6803112

Terminal guards, perforated, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Close

B6803112

Terminal guards, perforated, 5.08
product added to your list
PC (UL 94 V-0)
light grey

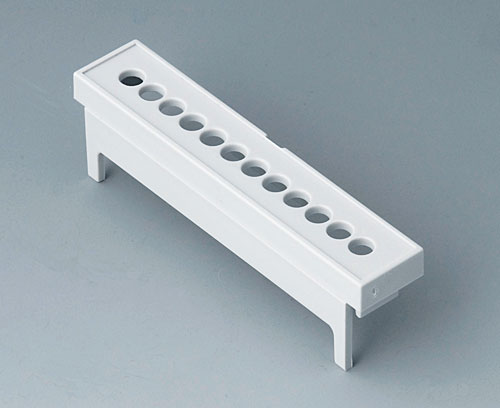

B6803113 Terminal guards, with holes, 5.08

B6803113

Terminal guards, with holes, 5.08 Easy assembly through snap-in installation of the case parts.

Version 12 poles (designed to allow the use of terminals, block 5.08)

Supply 1 piece

Close

B6803113

Terminal guards, with holes, 5.08
product added to your list
PC (UL 94 V-0)
light grey

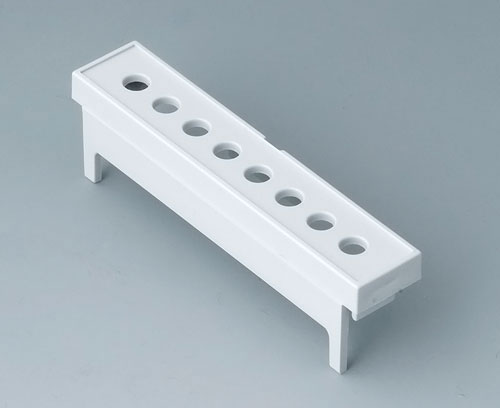

B6803114 Terminal guards, with holes, 7.5 & 7.62

B6803114

Terminal guards, with holes, 7.5 & 7.62 Easy assembly through snap-in installation of the case parts.

Version 8 poles (designed to allow the use of terminals, block 7.5 & 7.62)

Supply 1 piece

Close

B6803114

Terminal guards, with holes, 7.5 & 7.62
product added to your list
PC (UL 94 V-0)
light grey
B6803115 Terminal guards, with holes, 10.16

B6803115

Terminal guards, with holes, 10.16 Easy assembly through snap-in installation of the case parts.

Version 6 poles (designed to allow the use of terminals, block 10.16)

Supply 1 piece

Close

B6803115

Terminal guards, with holes, 10.16
product added to your list
PC (UL 94 V-0)
light grey

Accessory

B6803101 Front lid convex without hinge

B6803101

Front lid convex without hinge Snap-in.

Supply 1 front lid

Close

B6803101

Front lid convex without hinge
product added to your list
PC (UL 94 V-0)
light grey
B6803120 Frame

B6803120

Frame Allows additional PCB position as well as the use of the front lid convex with hinge. Snap-in.

Supply 1 frame

Close

B6803120

Frame
product added to your list
PC (UL 94 V-0)
light grey
B6803201 Front lid convex without hinge

B6803201

Front lid convex without hinge Snap-in.

Supply 1 front lid

Close

B6803201

Front lid convex without hinge
product added to your list
PC (UL 94 V-0)
transparent
B6803202 Front lid convex with hinge

B6803202

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

Close

B6803202

Front lid convex with hinge
product added to your list
PC (UL 94 V-0)
transparent
B6803301 Front lid convex without hinge

B6803301

Front lid convex without hinge Snap-in.

Supply 1 front lid

Close

B6803301

Front lid convex without hinge
product added to your list
PC (UL 94 V-0)
red transparent
B6803302 Front lid convex with hinge

B6803302

Front lid convex with hinge Only suitable for RAILTEC C with frame.

Supply 1 front lid

Close

B6803302

Front lid convex with hinge
product added to your list
PC (UL 94 V-0)
red transparent

Customising options for B6703100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
71 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
51 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
