CIME/M/SCR Self-tapping screw

CIME/M/SCR

Self-tapping screw

Self-tapping screw for fixing end covers to the base sections.  Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.

Supply

1 self-tapping screw

  • To be used for
CIME/E/BExxx RAILTEC SUP. EXT 107, base section

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section Extruded base section for 107 mm PCBs  - 'XXX' in part no = your PCB width (we will supply the base extrusion pre-cut to this dimension). E.g. 200 mm wide PCB = order Part No. CIME/E/BE200. Minimum cut = 70 mm. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.
Note: The weight shown in purchasing data refers to profiles with 100 mm length.

Supply 1 base section (cut to your PCB size)

Close

CIME/E/BExxx

RAILTEC SUP. EXT 107, base section
product added to your list
PA (UL 94 V-0)
green
117x18mm

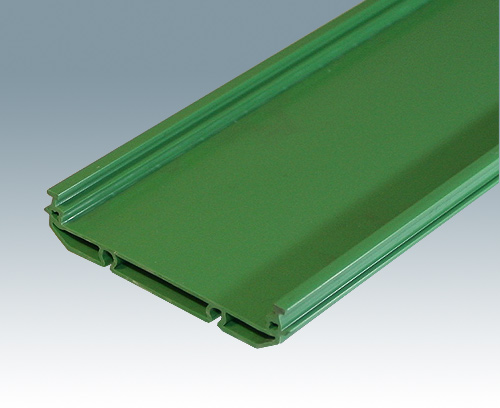

CIME/M/BExxx RAILTEC SUP. EXT 72, base section

CIME/M/BExxx

RAILTEC SUP. EXT 72, base section Extruded base section for 72 mm PCBs  - 'xxx' in part no = your PCB width less 4 mm (we will supply the base extrusion pre-cut to this dimension). E.g. 200 mm PCB = base extrusion is cut to 196 mm - order Part No. CIME/M/BE196. Minimum cut = 70 mm. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.
Note: The weight shown in purchasing data refers to profiles with 100 mm length.

Supply 1 base section (cut to your PCB size)

Close

CIME/M/BExxx

RAILTEC SUP. EXT 72, base section
product added to your list
PA (UL 94 V-0)
green
80x16mm
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.6 g
Customs tariff number
(OKW product)
73181559
Country of manufacture
U.K.
