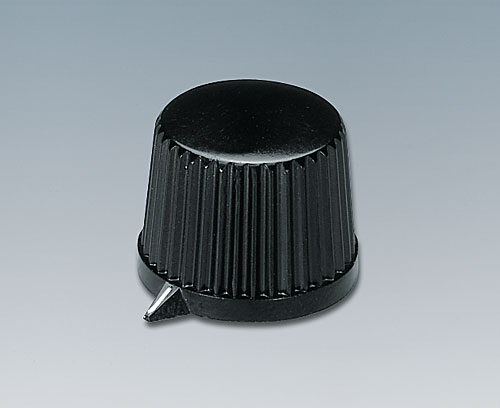

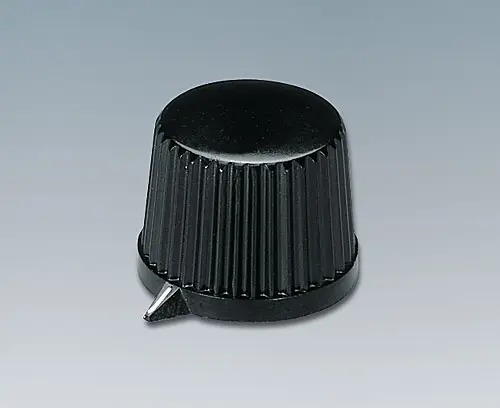

A1313560 TUNING KNOB, with lateral screw fixing

A1313560

TUNING KNOB, with lateral screw fixing

Suitable for rotary potentiometer with round shaft ends. With indicator. White marking.

Supply

1 tuning knob

  • View Customising Options

Customising options for A1313560

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Diameter
20 mm
Height
15.4 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Taiwan
