A1316240

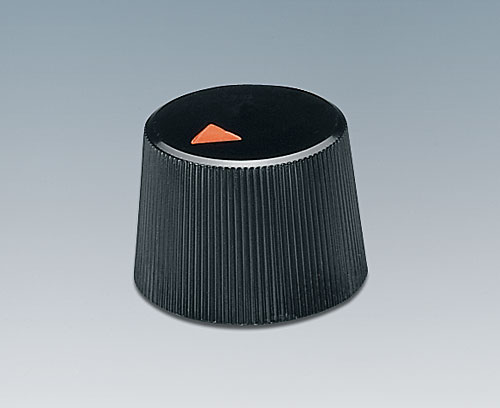

TUNING KNOB, with lateral screw fixing
Suitable for rotary potentiometer with round shaft ends. Red marking.
Supply1 tuning knob
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A1316240
Please select the product details you would like to include in the PDF.
Add to my basket
Customising options for A1316240
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Diameter
16.4 mm
Height
12.3 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 123 KB
- AutoCAD DWG-File 333 KB
- AutoCAD DXF-File 1,156 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 157 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027462.x_t 855 KB
- 00027462.step 1,873 KB
- 00027462.sat 2,547 KB
Weight/1 part
3.9 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Taiwan
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A1316240 and don't forget to request a quotation!
