NEW ROUND & OVAL EXTRUDED ENCLOSURES

Synergy Aluminium Enclosures

January 2015

UNIQUE RANGE OF EXTRUDED ALUMINIUM ENCLOSURES

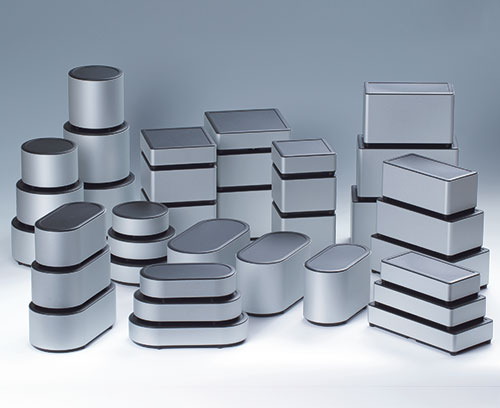

OKW has added new Round and Oval models to its elegant new range of SYNERGY electronic enclosures – its first to be manufactured from both plastic and aluminium. The new models mean the SYNERGY range now offers 36 enclosures in four types – Round, Oval, Square and Edge (rectangular) – all with a superb quality surface finish for high value handheld, desktop and wall mounted electronics equipment.

Applications include medical and therapeutic systems, measurement and control technology, home automation, peripherals and building services electronics.

SYNERGY enclosures are the first to feature OKW’s new fast-connect system which is based around four internal assembly pillars that hold each enclosure together. Glass reinforced polyamide pillars snap in to the recessed top panel, locate the assembly extrusion and are fixed to the bottom part with four stainless steel Torx T10 anti-tamper screws. Several pillars can be snapped together to create custom heights in 5 mm increments (on request).

The main body section of each case is extruded from AlMgSi 0.5 aluminium. It is blasted with glass beads and anodised in silver (or black on request) to create an extremely high quality finish. All the anodising is done by a specialist company which works for German manufacturers of high specification TV and home entertainment systems.

SYNERGY’s top and base sections are manufactured from UV-resistant ASA+PC-FR (UL 94 V-0). They are black (RAL 9005) as standard but custom colours can be specified on demand. PCBs can be mounted in the top and bottom. Cables of up to ø 3 mm can be routed out of the bottom section. There is also plenty of space for interfaces on the other surfaces.

Round and Square models are offered in three plan sizes: 100 mm x 100 mm; 120 mm x 120 mm; 140 mm x 140 mm, all in heights of 40, 70 or 100 mm. Oval and Edge (rectangular) models are also available in three plan sizes: 160 mm x 80 mm; 180 mm x 90 mm; 200 mm x 100 mm, all in 40, 70 or 100 mm heights.

Options and accessories include battery compartments for three or four 1.5V AA cells, an extender kit for the PCB pillars, plus a suspension kit that enables SYNERGY to be wall mounted with only one screw.

Customisation services include CNC milling and drilling, printing or engraving of legends and logos, special finishes, keypads and assembly.
