AltText

A6016019

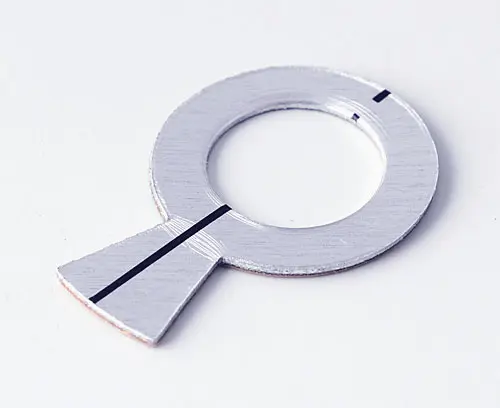

Stator 16

Suitable for round and wing knobs 16 / COM-KNOB 16. Stator with self-adhesive foil. Black marking.

Supply

1 Stator

  • To be used for
AltText

A2516040

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 round knob

Close

A2516040

ROUND KNOB 16, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
16x15mm
Bore hole 4mm
AltText

A2516060

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2516060

ROUND KNOB 16, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
16x15mm
Bore hole 6mm
AltText

A2516068

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2516068

ROUND KNOB 16, without line
product added to your list
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
Bore hole 6mm
AltText

A2516630

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2516630

ROUND KNOB 16, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
16x15mm
Bore hole 1/4″
AltText

A2516638

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2516638

ROUND KNOB 16, without line
product added to your list
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
Bore hole 1/4″
AltText

A3116048

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116048

COM-KNOBS 16, without recess
product added to your list
PA 6
volcano
16x16mm
Bore hole 4mm
AltText

A3116049

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116049

COM-KNOBS 16, without recess
product added to your list
PA 6
nero
16x16mm
Bore hole 4mm
AltText

A3116068

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116068

COM-KNOBS 16, without recess
product added to your list
PA 6
volcano
16x16mm
Bore hole 6mm
AltText

A3116069

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116069

COM-KNOBS 16, without recess
product added to your list
PA 6
nero
16x16mm
Bore hole 6mm
AltText

A3116638

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116638

COM-KNOBS 16, without recess
product added to your list
PA 6
volcano
16x16mm
Bore hole 1/4″
AltText

A3116639

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3116639

COM-KNOBS 16, without recess
product added to your list
PA 6
nero
16x16mm
Bore hole 1/4″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.2 g
Customs tariff number
(OKW product)
83100000
Country of manufacture
Germany
