B6032041 DIN-MODULAR CASE TYPE A, Vers. I

B6032041

DIN-MODULAR CASE TYPE A, Vers. I

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version

With 2 guide ridges for mounting PCBs

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Components/Accessories
  • View Customising Options

Accessory to complete

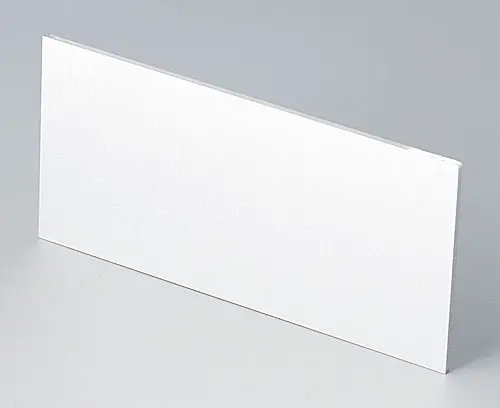

B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132111

Front panel
product added to your list
Aluminium
matt anodised
91.5x43.4x1.5mm

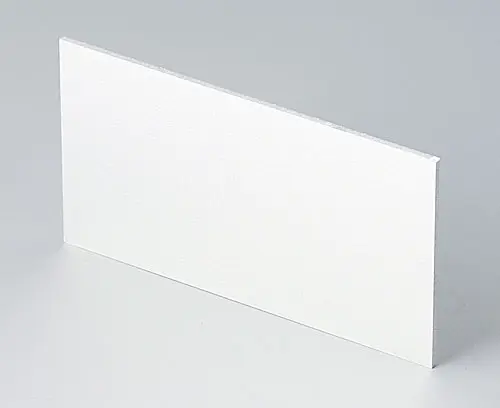

B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Close

B6132112

Rear panel
product added to your list
Aluminium
matt anodised
73.5x39.6x1mm

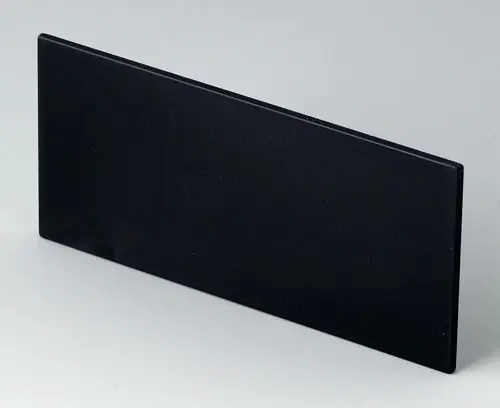

B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132221

Front panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
91.6x43.5x2mm

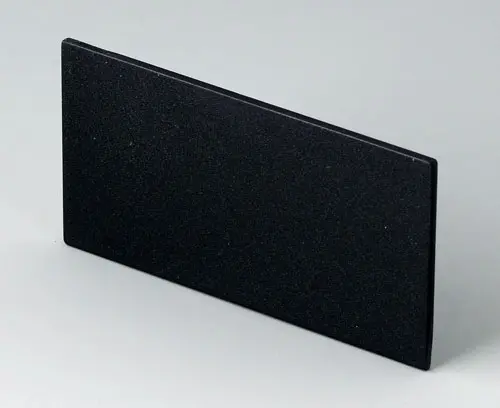

B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Close

B6132222

Rear panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
73.6x39.75x1.7mm

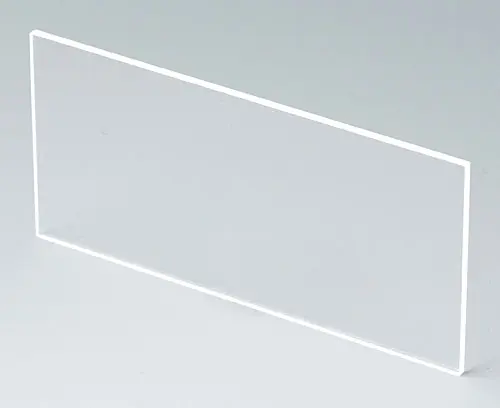

B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132331

Front panel
product added to your list
Acrylic glass
transparent
91.5x43.4x2mm

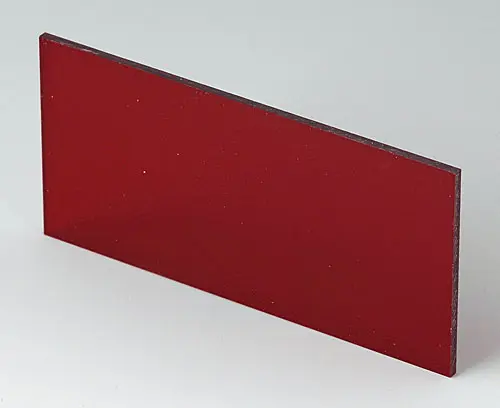

B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132341

Front panel
product added to your list
Acrylic glass
red transparent
91.5x43.4x2mm
B6132451 Front panel

B6132451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Close

B6132451

Front panel
product added to your list
PC (IR)
91.6x43.5x2mm

Accessory "protection"

B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 48.

Supply 1 protection cover

Close

B6132533

Protection cover
product added to your list
PC
transparent

Customising options for B6032041

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Standards
Width
96 mm
Height
48 mm
Depth
109 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
87 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
