Accessories for enclosures
A9078109
DATEC-CONTROL M, Vers. I
Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.
VersionWith closed operating area, recessed: 1.7 mm deep
SupplyTop and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9078109
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "battery"
A9178118

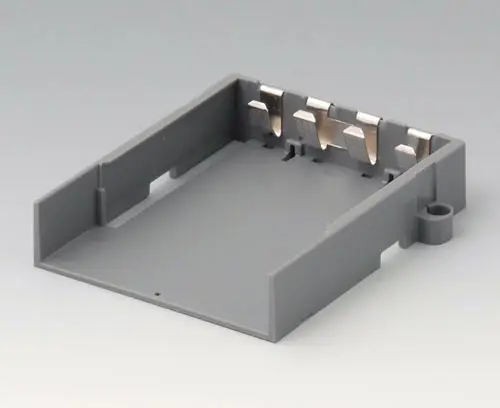

Battery compartment holder
Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.
Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws
A9178118
Battery compartment holderproduct added to your list
volcano
A9178128

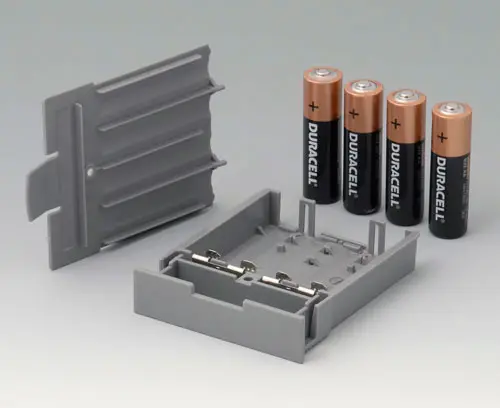

Battery compartment, M/L, 4 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 4 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178128
Battery compartment, M/L, 4 x AAproduct added to your list
volcano

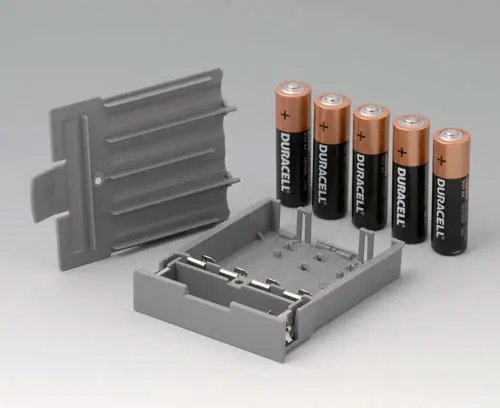

A9178158
Battery compartment, M/L, 5 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 5 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178158
Battery compartment, M/L, 5 x AAproduct added to your list
volcano
A9178178

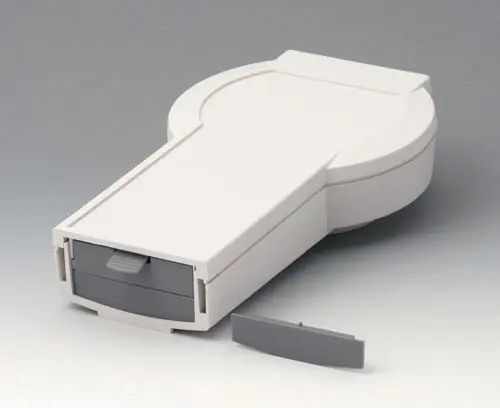

End plate for electronic area, Vers. I
Simply inserted into the guides in the bottom part.
Version To close the electronic area
Supply 1 end plate for electronic area
A9178178
End plate for electronic area, Vers. Iproduct added to your list
volcano
A9178188

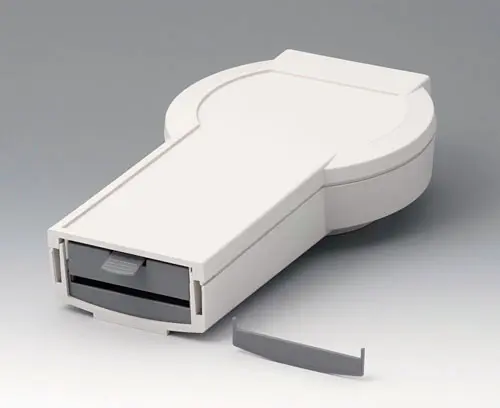

End plate for electronic area, Vers. II
Simply inserted into the guides in the bottom part.
Version For use with a PCMCIA-card type I
Supply 1 end plate for electronic area
A9178188
End plate for electronic area, Vers. IIproduct added to your list
volcano
A9178198

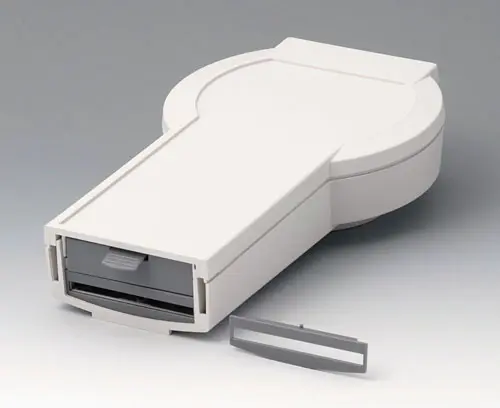

End plate for electronic area, Vers. III
Simply inserted into the guides in the bottom part.
Version For use with a PCMCIA-card type I
Supply 1 end plate for electronic area
A9178198
End plate for electronic area, Vers. IIIproduct added to your list
volcano
Accessory "station"
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleproduct added to your list
A9178118
Battery compartment holder
Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.
Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws
A9178118
Battery compartment holderproduct added to your list
volcano
A9178128
Battery compartment, M/L, 4 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 4 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178128
Battery compartment, M/L, 4 x AAproduct added to your list
volcano
A9178139

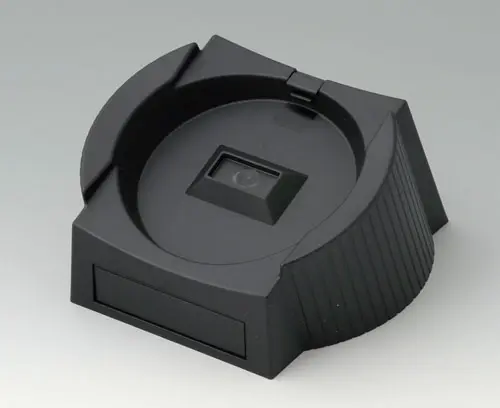

Station, Vers. I
Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.
Version Desktop version
Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads
A9178139
Station, Vers. Iproduct added to your list
black RAL 9005
A9178158
Battery compartment, M/L, 5 x AA
Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.
Version For 5 mignon cells 1.5 V (AA)
Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw
A9178158
Battery compartment, M/L, 5 x AAproduct added to your list
volcano

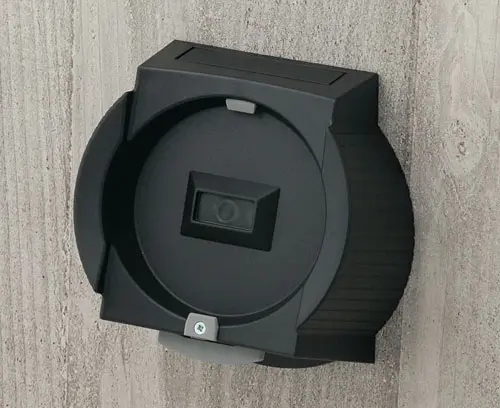

A9178169
Station, Vers. II
Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.
Version Wall-mounting
Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism
A9178169
Station, Vers. IIproduct added to your list
black RAL 9005
Accessory "protection"
A9178006

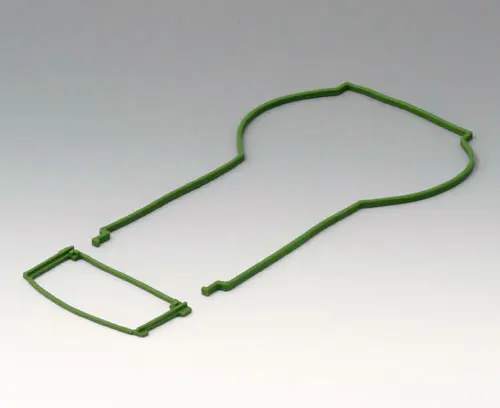

Sealing kit M
Application: for increasing the protection class, of DATEC-CONTROL M.
Supply 1 sealing kit
A9178006
Sealing kit Mproduct added to your list
A9178108
Protector M
Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Version without hanging belt.
Supply 1 protector
A9178108
Protector Mproduct added to your list
volcano

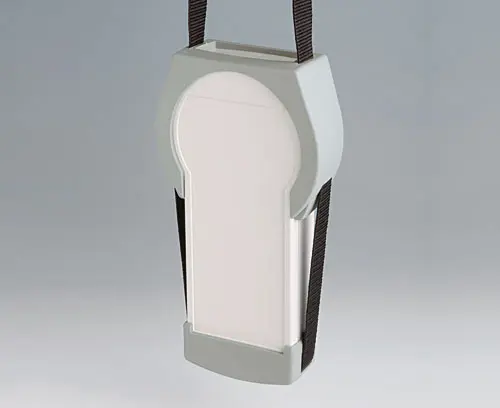

A9178208
Protector M
Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Version With shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle)
Supply 1 protector, 1 shoulder strap
A9178208
Protector Mproduct added to your list
volcano
Accessory "wall/holder"
A9226119

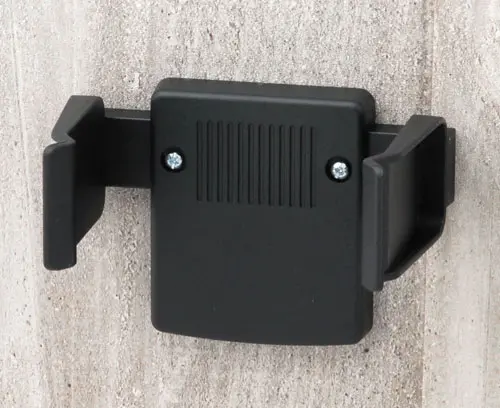

Wall suspension element
Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226119
Wall suspension elementproduct added to your list
black RAL 9005
Accessory
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleproduct added to your list
Customising options for A9078109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Application Examples
- Purchasing Data
Material
Protection class
Necessary accessories: sealing kit
Colour
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
243 mm
Width
130 mm
Height
60 mm
PCB length, base
207 mm
PCB width, base
80 mm
PCB length, top
113 mm
PCB width, top
78 mm
Keypad length
189.2 mm
Keypad width
78 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 259 KB
- AutoCAD DWG-File 532 KB
- AutoCAD DXF-File 1,997 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 9,320 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007907.x_t 9,875 KB
- 00007907.STEP 21,675 KB
- 00007907.SAT 33,819 KB
External Accessory - miscellaneous
Weight/1 part
263 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9078109 and don't forget to request a quotation!
