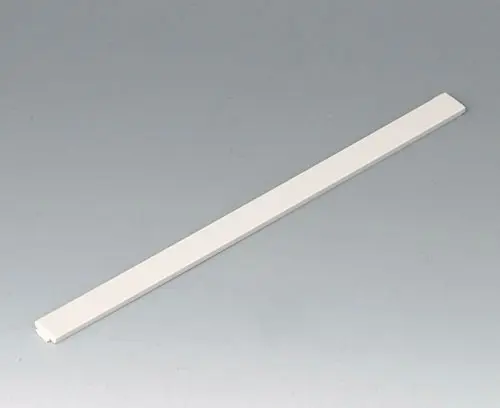

B4113677 Cover strip S / SL

B4113677

Cover strip S / SL

For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply

1 cover strip

  • To be used for
  • View Customising Options

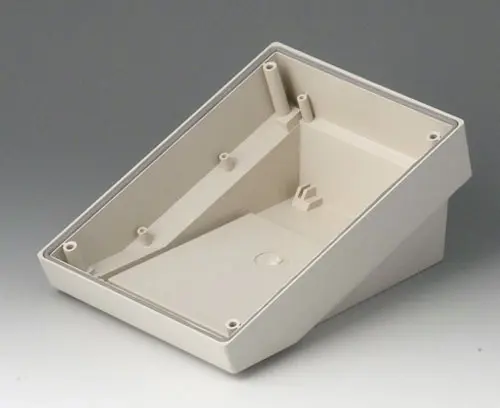

B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4013117

DATEC-TERMINAL S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

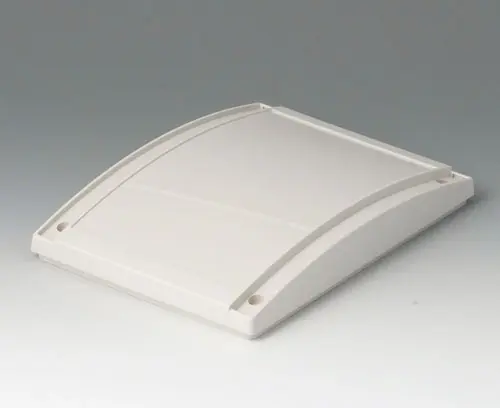

B4013637 Cover S, convex

B4013637

Cover S, convex Suitable for DATEC-TERMINAL S. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Close

B4013637

Cover S, convex
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
130x180x28mm
B4026117 DATEC-TERMINAL SL

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4026117

DATEC-TERMINAL SL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
264x180x86mm
IP 54 opt.

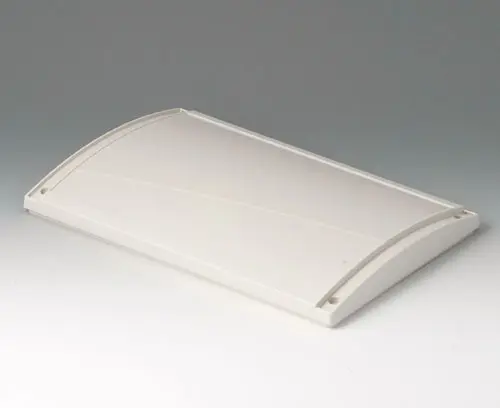

B4026637 Cover SL, convex

B4026637

Cover SL, convex Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Close

B4026637

Cover SL, convex
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
263x180x28mm

Customising options for B4113677

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
