AltText

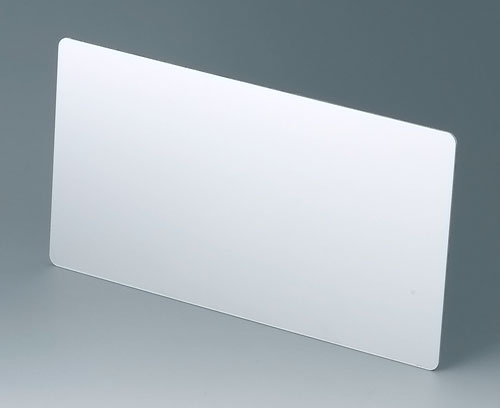

A0334270

Front / rear panel 42 TE 3 HE

Front/rear panel for case 42 TE 3 HE.

Supply

1 front panel

  • To be used for
  • View Customising Options
AltText

A0114170

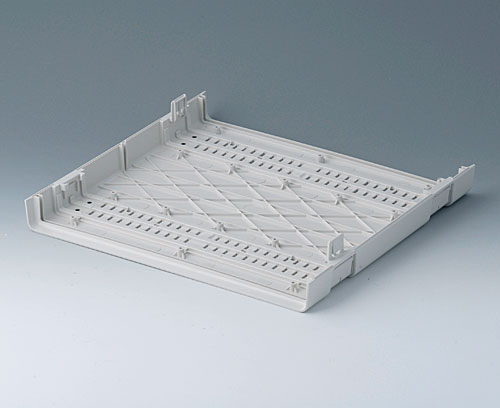

Shell 42 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).

Supply 1 shell

Close

A0114170

Shell 42 TE
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x27mm
AltText

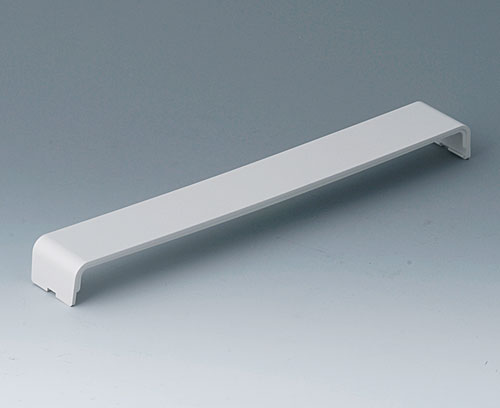

A0114370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Close

A0114370

Snap-in panel, without slots
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

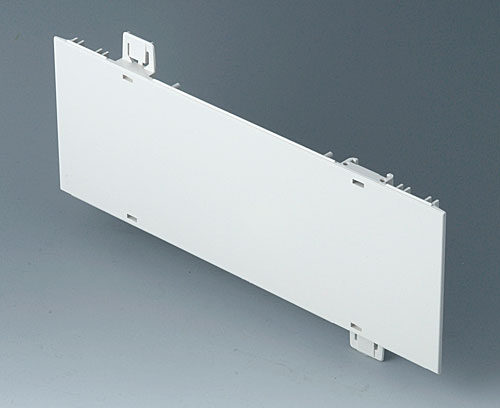

A0120270

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0120270

Side panel 2 HE
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
250x88.9mm
AltText

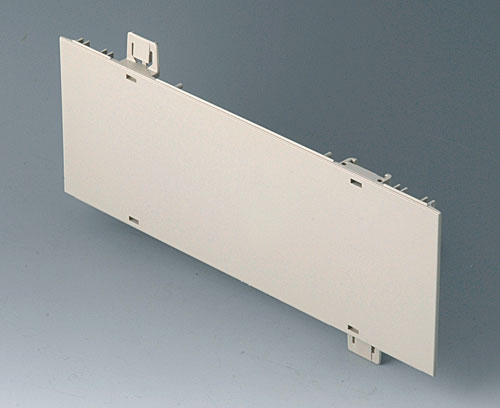

A0120280

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0120280

Side panel 2 HE
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
250x88.9mm
AltText

A0121270

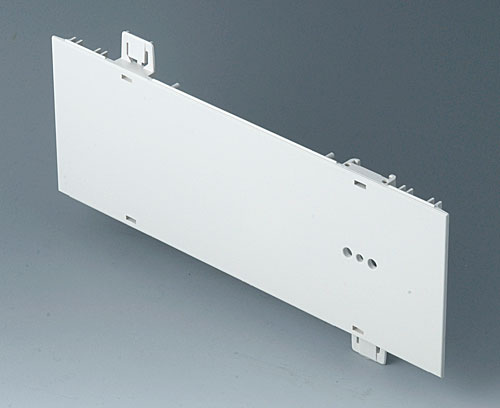

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0121270

Side panel 2 HE, for handle mounting
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
250x88.9mm
AltText

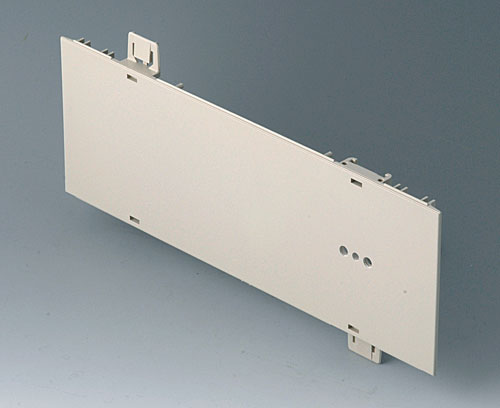

A0121280

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0121280

Side panel 2 HE, for handle mounting
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
250x88.9mm
AltText

A0124370

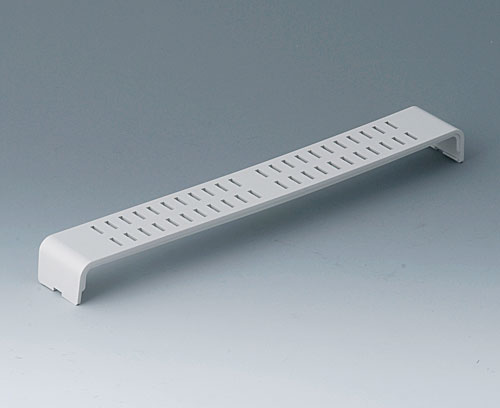

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Close

A0124370

Snap-in panel, with slots
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

A0134370

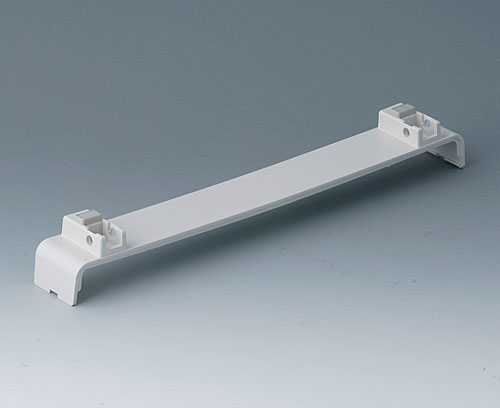

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).

Supply 1 snap-in panel without slots, with feet

Close

A0134370

Snap-in panel, without slots, with feet
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

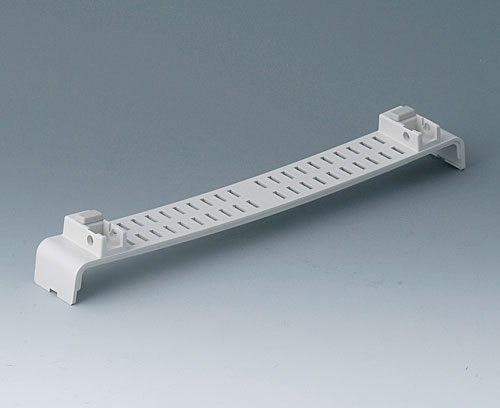

A0144370

Snap-in panel with, slots, with feet Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Close

A0144370

Snap-in panel with, slots, with feet
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

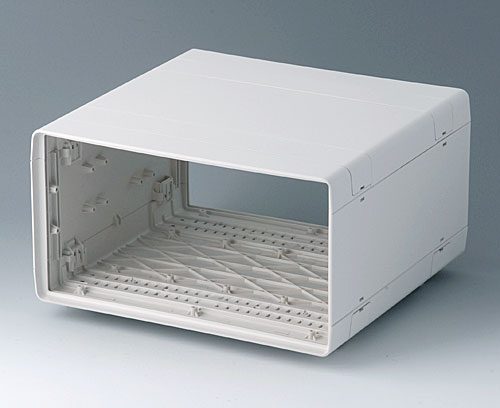

A0234070

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Close

A0234070

EURO CASE 42 TE, without handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

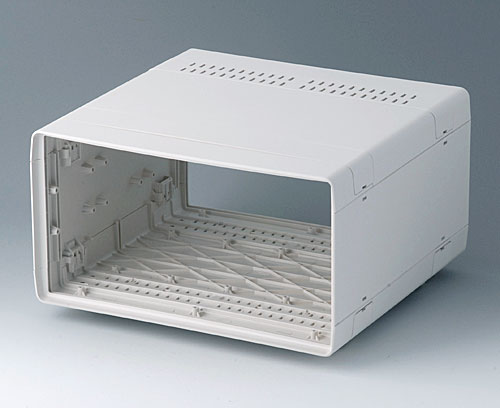

A0234170

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Close

A0234170

EURO CASE 42 TE, without handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

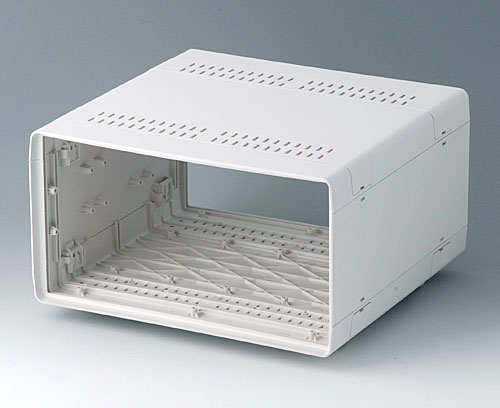

A0234270

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Close

A0234270

EURO CASE 42 TE, without handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

A0234470

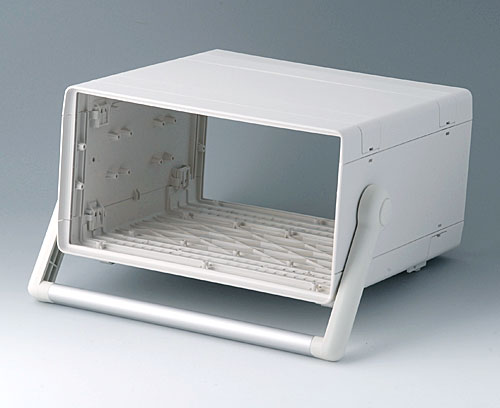

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle

Close

A0234470

EURO CASE 42 TE, with handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

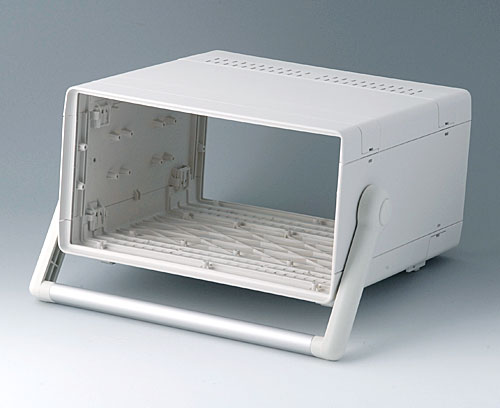

A0234570

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle

Close

A0234570

EURO CASE 42 TE, with handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

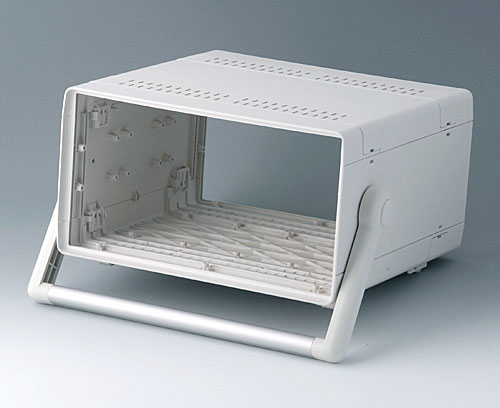

A0234670

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle

Close

A0234670

EURO CASE 42 TE, with handle
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
260x250x143mm
AltText

A0344216

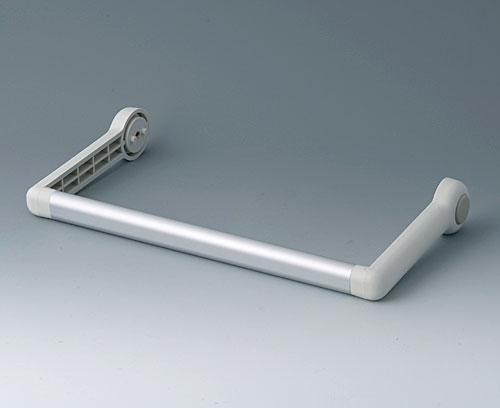

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344216

Handle 42 TE
product added to your list
PA 6
off-white RAL 9002
AltText

A0344217

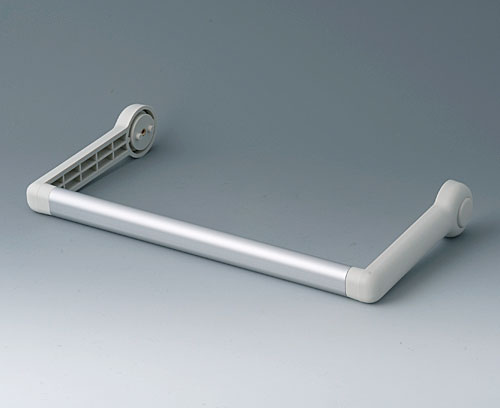

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344217

Handle 42 TE
product added to your list
PA 6
off-white RAL 9002
AltText

A0344218

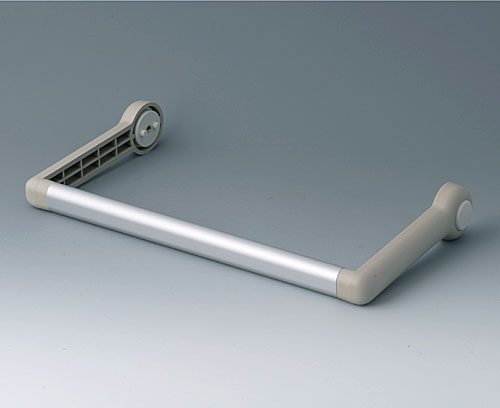

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344218

Handle 42 TE
product added to your list
PA 6
pebble grey RAL 7032

Customising options for A0334270

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
250.8 mm
Height
135.2 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
182 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
