A9500030 Sealing 80

A9500030

Sealing 80

For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply

1 seal

  • To be used for

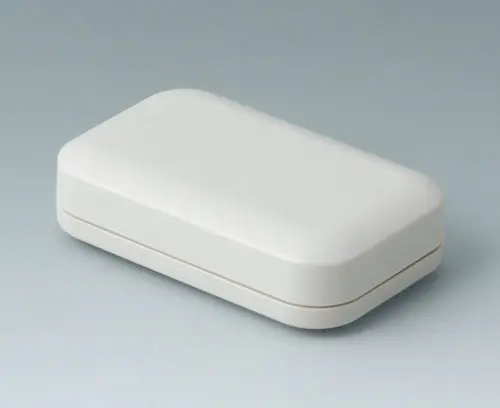

A9401107 EVOTEC 80, Vers. I

A9401107

EVOTEC 80, Vers. I 2-part plastic enclosure with flat top part, height 22. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9401107

EVOTEC 80, Vers. I
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
80x50x22mm
IP 65 opt., IP 40

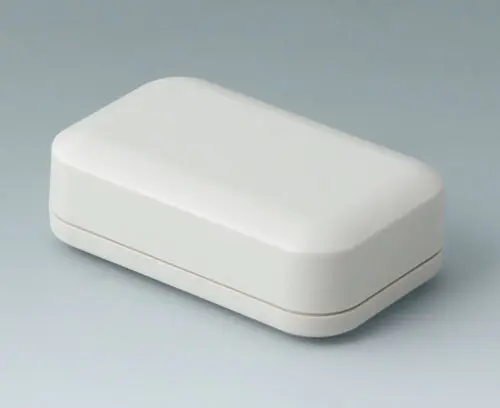

A9403107 EVOTEC 80, Vers. I

A9403107

EVOTEC 80, Vers. I 2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9403107

EVOTEC 80, Vers. I
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
80x50x26mm
IP 65 opt., IP 40

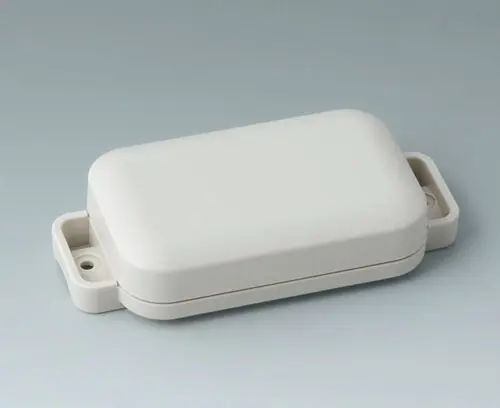

C3204107 EASYTEC 80

C3204107

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Close

C3204107

EASYTEC 80
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
101x50x22mm
IP 65 opt., IP 40

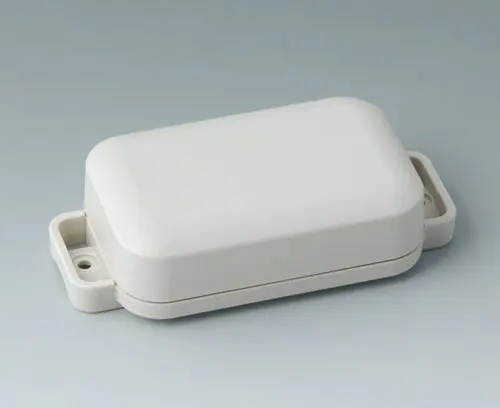

C3204207 EASYTEC 80

C3204207

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Close

C3204207

EASYTEC 80
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
101x50x26mm
IP 65 opt., IP 40
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Germany
