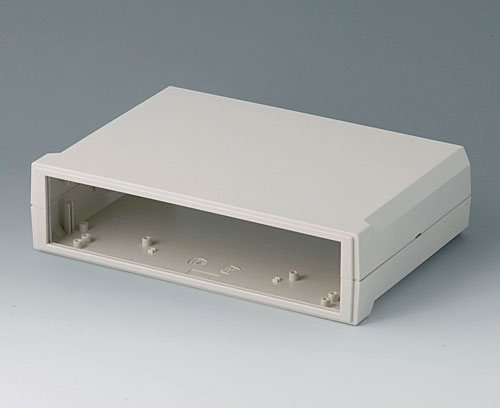

B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat

Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply

1 top and base part, 4 self-adhesive case feet

  • Components/Accessories
  • View Customising Options

Accessory to complete

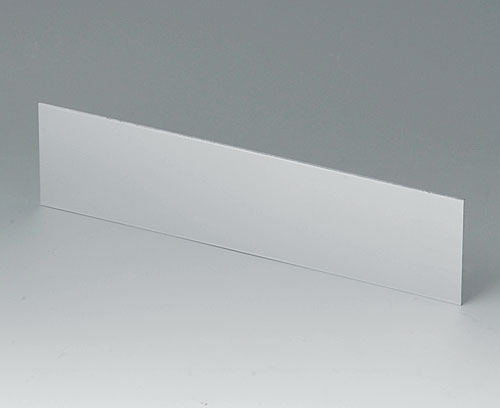

B3123100 Front / rear panel L

B3123100

Front / rear panel L Suitable for MOTEC L B3023117 with flat base and top part.

Supply 1 front panel

Close

B3123100

Front / rear panel L
product added to your list
Aluminium
matt anodised
214x52x1.5mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your list

Customising options for B3023117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Colour
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
235 mm
Depth
165 mm
Height
60 mm
PCB length, base
208 mm
PCB width, base
150 mm
Keypad length
210 mm
Keypad width
47 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
322 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
