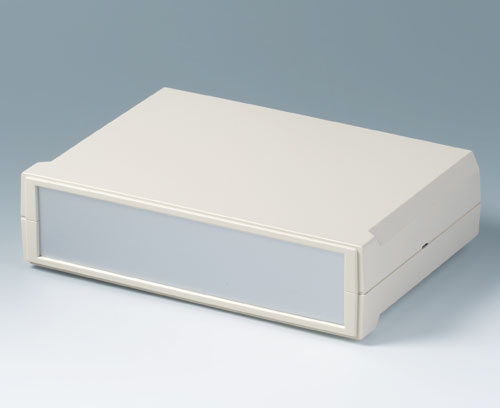

B3123100 Front / rear panel L

B3123100

Front / rear panel L

Suitable for MOTEC L B3023117 with flat base and top part.

Supply

1 front panel

  • To be used for
  • View Customising Options
B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Close

B3023117

MOTEC-L, flat/flat
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
235x165x60mm
IP 40

Customising options for B3123100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
214 mm
Height
52 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
45 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
