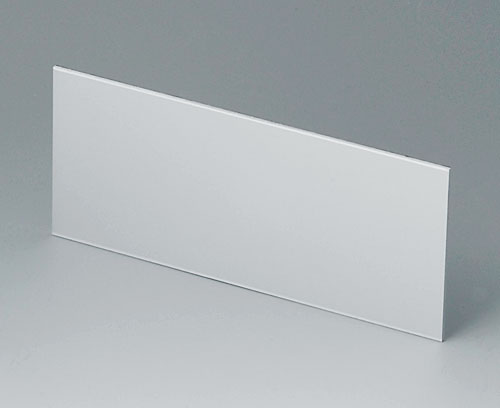

B3115110 Front / rear panel S

B3115110

Front / rear panel S

Suitable for MOTEC S B3015127 with flat base and high top part.

Supply

1 front panel

  • To be used for
  • View Customising Options

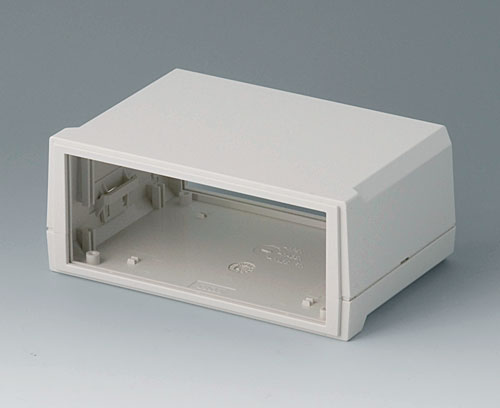

B3015127 MOTEC S, flat/high

B3015127

MOTEC S, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Close

B3015127

MOTEC S, flat/high
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
155x105x65mm
IP 40

Customising options for B3115110

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
136 mm
Height
57 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
