C2108161 ROBUST-BOX WIDTH 80, Vers. I

C2108161

ROBUST-BOX WIDTH 80, Vers. I

Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply

2 case shells with sealing, cover strips top and bottom, assembly kit

  • Components/Accessories
  • View Customising Options

Accessory "protection"

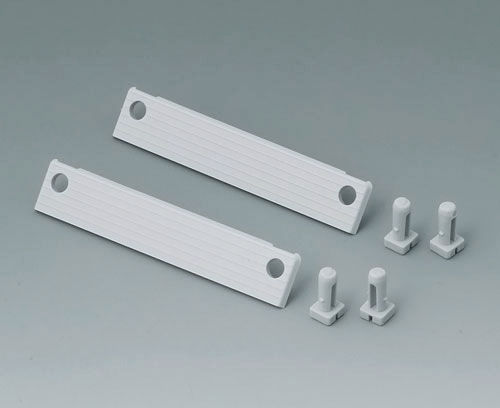

C2299048 Security kit width 80

C2299048

Security kit width 80 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299048

Security kit width 80
product added to your list
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalisation element M6x0.75
product added to your list
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalisation element M10x1
product added to your list
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your list
EPDM
light grey RAL 7035
IP 67

Accessory "wall/holder"

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

Close

C2201088

Fastening elements to DIN-Rails
product added to your list
PA 6
light grey RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your list
PA 6 (UL 94 HB)
light grey RAL 7035
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover, e.g. during servicing. Can be fitted to any case side. Not applicable for sizes 200 x 300 and 240 x 360 mm.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your list
PP
natural-coloured
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Close

C2299088

Hinge
product added to your list
PA 6
light grey RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your list

Accessory

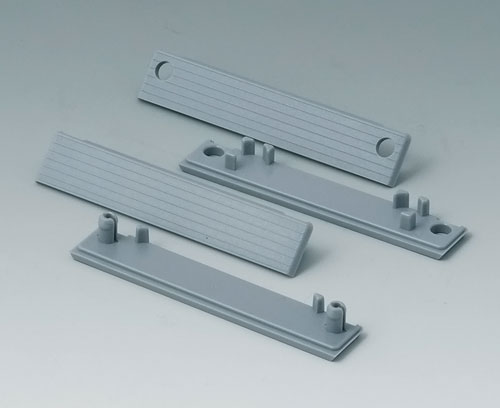

C2201082 Cover strips 80

C2201082

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201082

Cover strips 80
product added to your list
PC (UL 94 HB)
silver grey RAL 7001

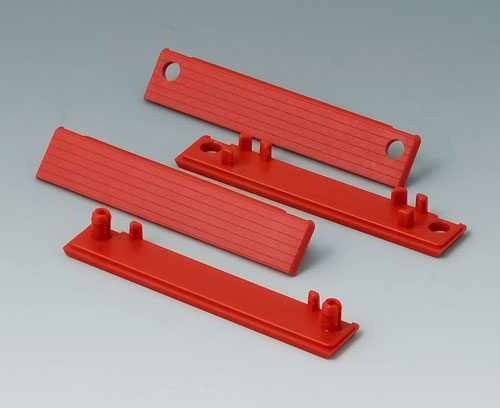

C2201084 Cover strips 80

C2201084

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201084

Cover strips 80
product added to your list
PC (UL 94 HB)
red RAL 3020

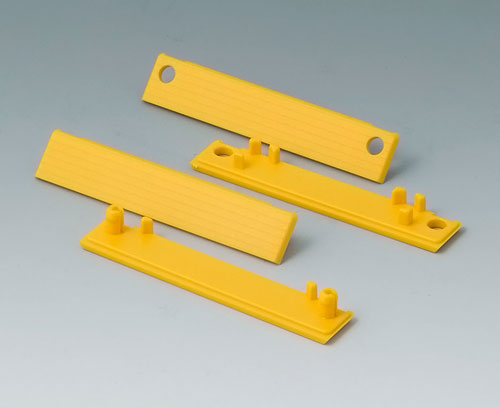

C2201085 Cover strips 80

C2201085

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201085

Cover strips 80
product added to your list
PC (UL 94 HB)
yellow RAL 1023

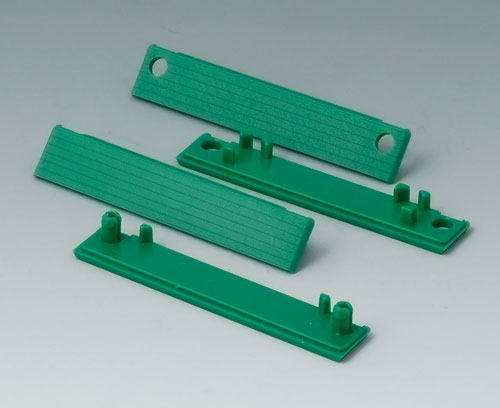

C2201086 Cover strips 80

C2201086

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201086

Cover strips 80
product added to your list
PC (UL 94 HB)
green RAL 6024

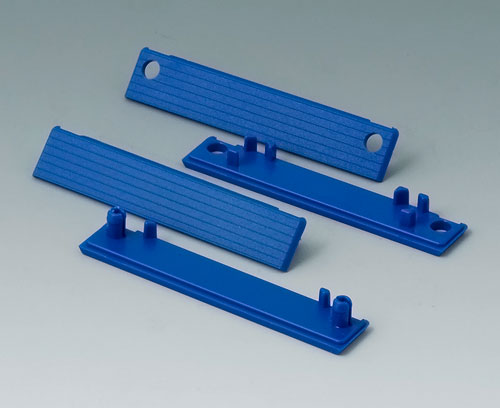

C2201087 Cover strips 80

C2201087

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201087

Cover strips 80
product added to your list
PC (UL 94 HB)
blue RAL 5017
C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your list
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Close

C2299068

PCB support
product added to your list
PC (UL 94 HB)
light grey RAL 7035

Customising options for C2108161

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Colour
light grey RAL 7035
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
160 mm
Width
80 mm
Height
80 mm
PCB length, base
120 mm
PCB width, base
65 mm
PCB length, top
120 mm
PCB width, top
65 mm
Keypad length
122.5 mm
Keypad width
65.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
322 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
