B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II

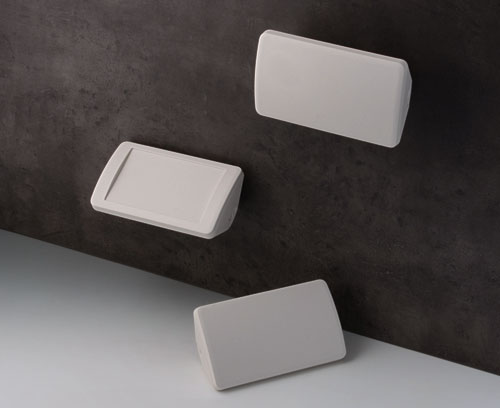

Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version

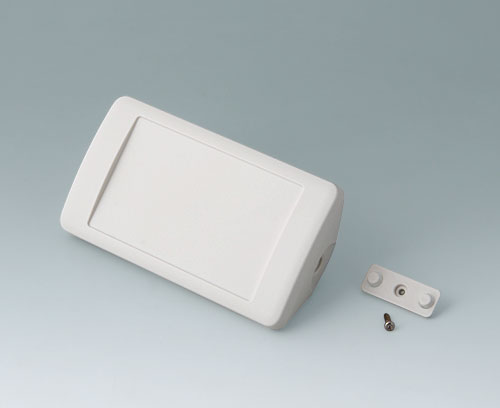

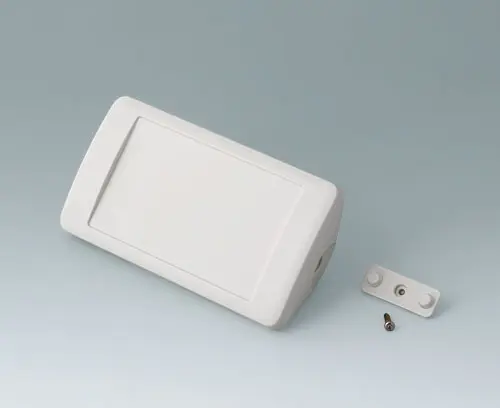

Case-top with recessed operating area

Supply

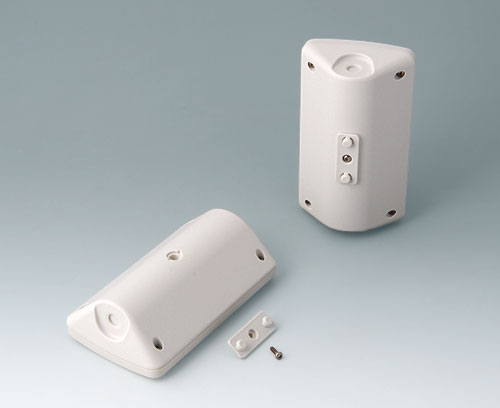

Top and bottom parts, assembly kit incl. universal adapter

  • Components/Accessories
  • View Customising Options

Accessory "station"

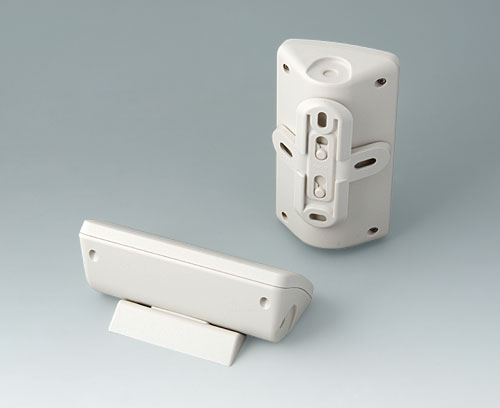

B4705207 Desktop stand set

B4705207

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Close

B4705207

Desktop stand set
product added to your list
ASA+PC-FR (UL 94 V-0)

Accessory "protection"

B4708920 Seal S

B4708920

Seal S To raise the protection class to IP 55. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Close

B4708920

Seal S
product added to your list

Accessory "wall/holder"

B4705907 Wall suspension element

B4705907

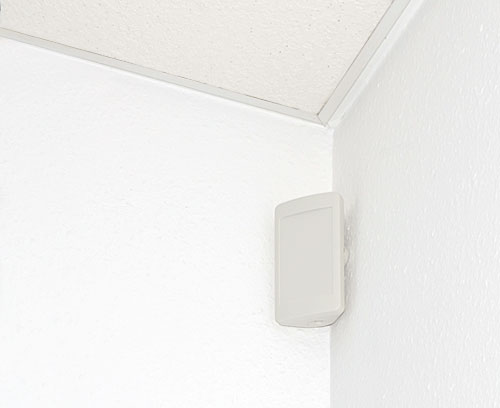

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

Close

B4705907

Wall suspension element
product added to your list
ASA+PC-FR (UL 94 V-0)

Accessory "screws"

A0325060 Self-tapping screw 3 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening PCBs, boards and components as well as for assembling case.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your list

Customising options for B4608207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
IP 55 opt.
Necessary accessories: sealing, IP 40
Colour
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
142 mm
Width
81 mm
Height
46 mm
PCB length, base
120 mm
PCB width, base
58 mm
PCB length, top
128 mm
PCB width, top
68 mm
Keypad length
103 mm
Keypad width
63 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
109 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
trafficflow
