C6402107

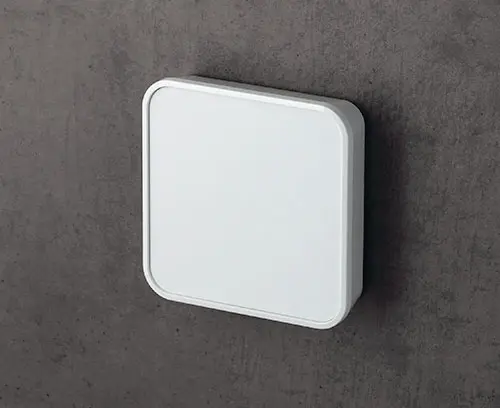

SMART-PANEL S84

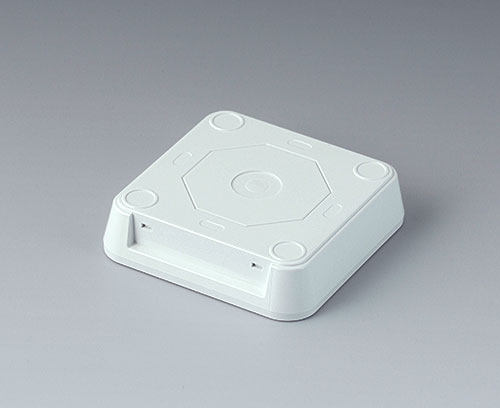

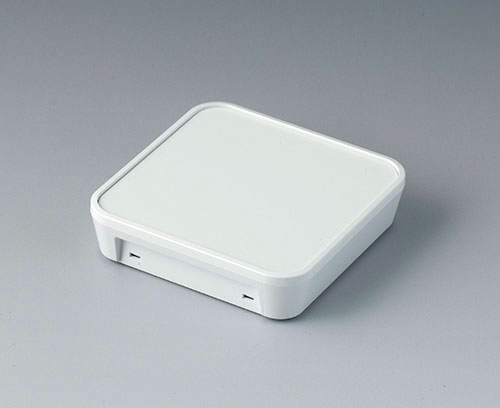

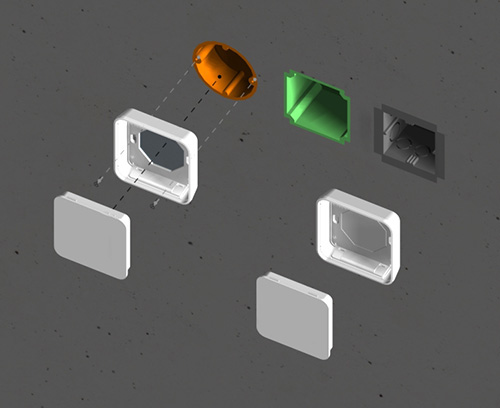

Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply

Top and bottom parts

  • Components/Accessories
  • View Customising Options

Accessory "protection"

AltText

C6502011

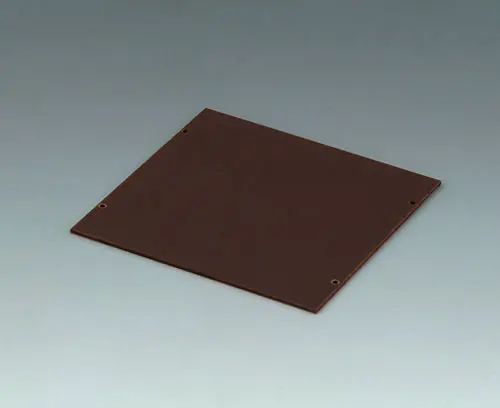

Hardboard protection plate S84 The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities.

Supply 1 hardboard plate

Close

C6502011

Hardboard protection plate S84
product added to your list
65x67x1mm
AltText

C6502012

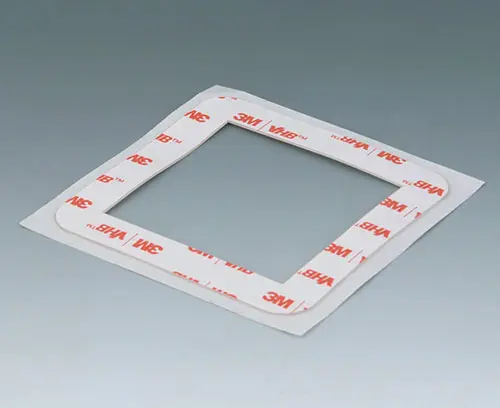

Adhesive foil S84 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Close

C6502012

Adhesive foil S84
product added to your list
AltText

C6502013

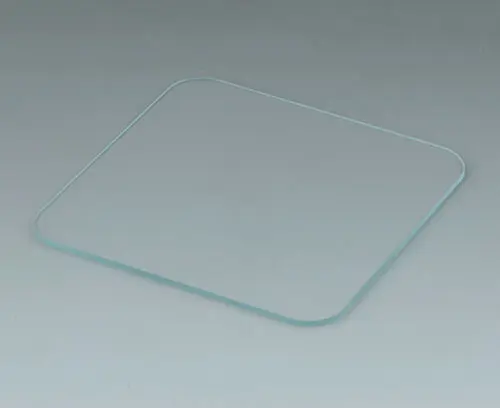

Glass panel S84 Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply 1 glass panel, chemically hardened

Close

C6502013

Glass panel S84
product added to your list
Glass
clear
78.75x78.75x1.6mm

Accessory "screws"

AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list
Stainless steel

Accessory

AltText

A9210180

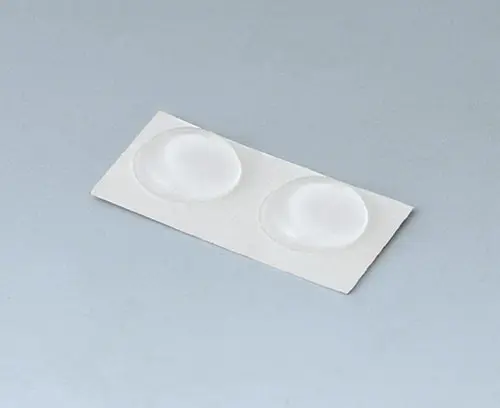

Anti-slide feet 10,1 x 1.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210180

Anti-slide feet 10,1 x 1.8 mm
product added to your list
transparent
AltText

C6502010

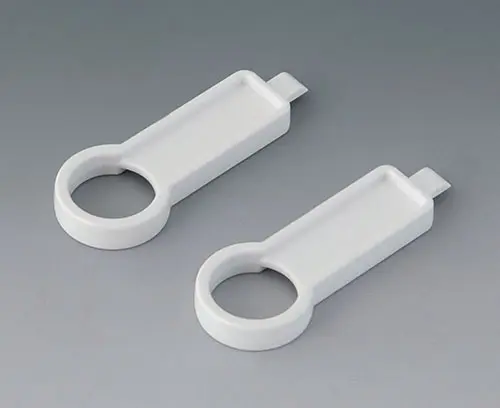

Opening tool set Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply 2 opening tools

Close

C6502010

Opening tool set
product added to your list
ASA+PC (UL 94 V-0)
traffic white RAL 9016

Customising options for C6402107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Protection class
Colour
traffic white RAL 9016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
84 mm
Width
84 mm
Height
21.3 mm
PCB length, base
66 mm
PCB width, base
68 mm
Keypad length
78.75 mm
Keypad width
78.75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
56 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
