SMART-PANEL enclosures

Smart-Panel

Elegant wall-mounted enclosure for modern control units

SMART-PANEL is specifically designed for today's intelligent building control and monitoring technology. The elegant appearance fits seamlessly into modern residential, commercial and industrial environments.

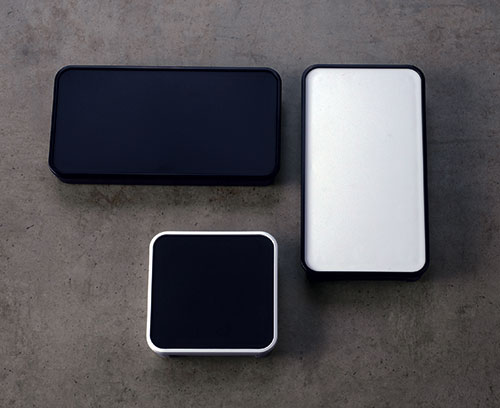

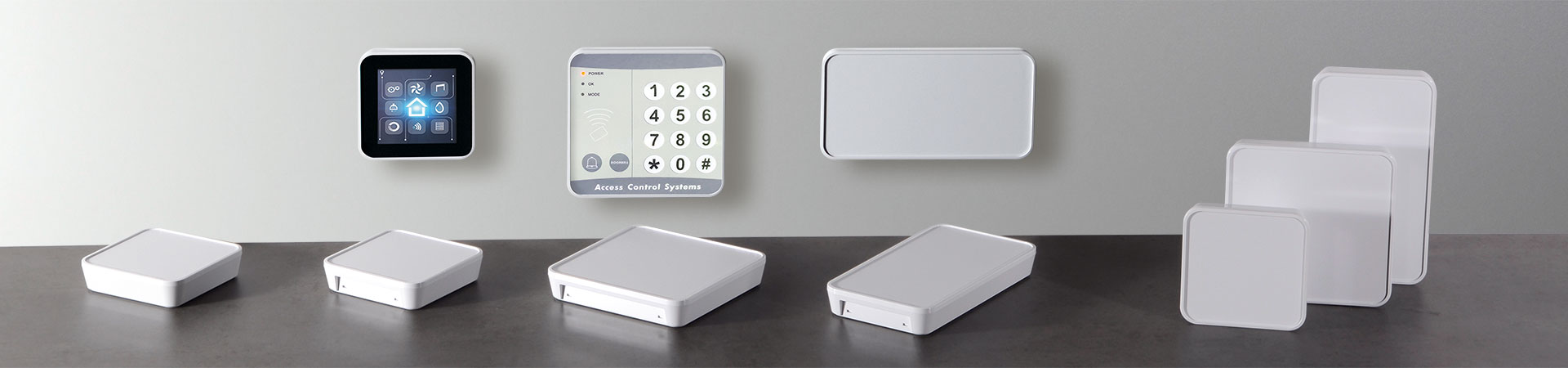

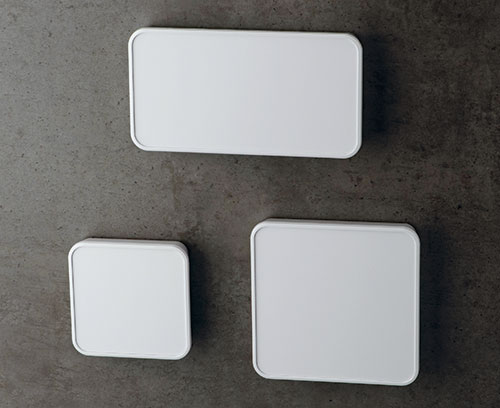

  • slim enclosure design in 2 sizes: square 84 x 84 mm and rectangular 155 x 84 mm

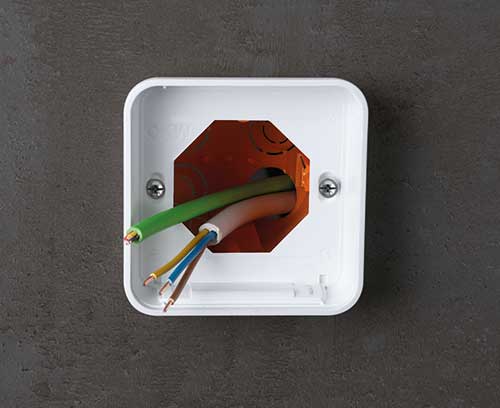

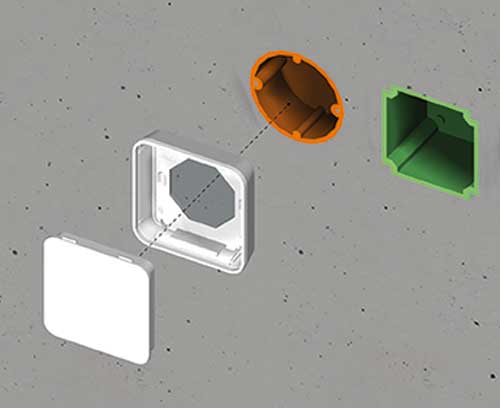

  • bottom part prepared for installation on standard flush-mounted/cavity wall boxes with max. installation opening 61 mm / double flush-mounted boxes as well as larger, international installation boxes up to a max. height of 150 mm / width 61 mm
  • great looking – bottom part highly polished, top part with fine surface structure
  • high-quality V0 ASA+PC-FR material in traffic white (RAL 9016)

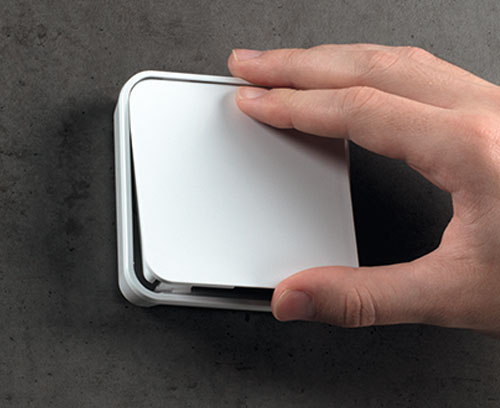

  • rational, screwless enclosure assembly with snap-in function – this is a major advantage for subsequent servicing activities on site
  • flat, recessed area in one end for USB and Mini-USB connectors etc. as well as for opening the enclosure by means of a separate opening tool (in pairs as accessories)

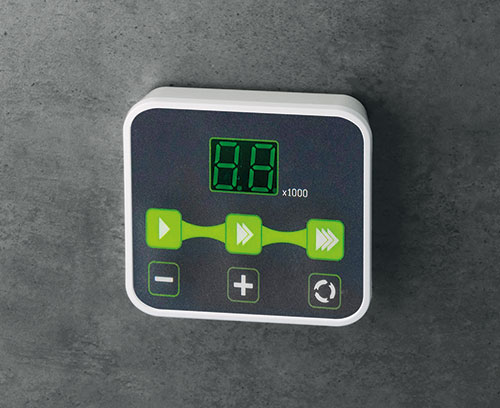

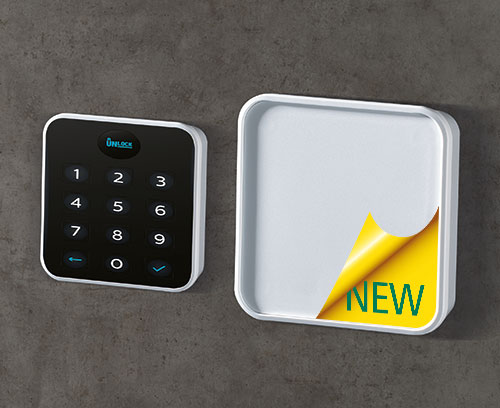

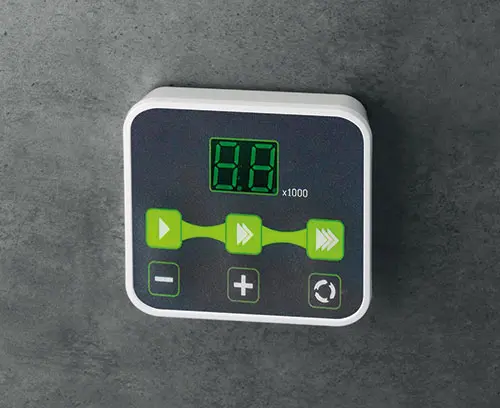

  • recessed control panel protects membrane keypads, display/control elements, touch displays and much more

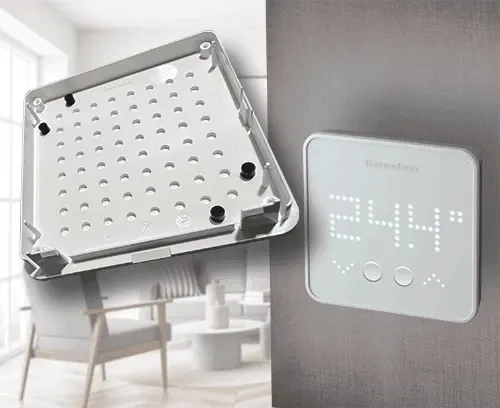

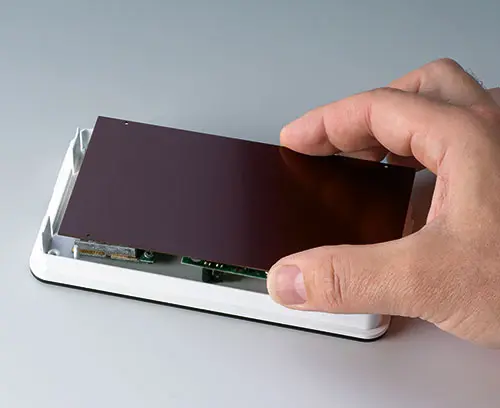

  • The electronic components are mounted in the top part. A snap-in phenolic resin hardboard plate (accessory) protects the underlying electronics from damage during installation/service, if required

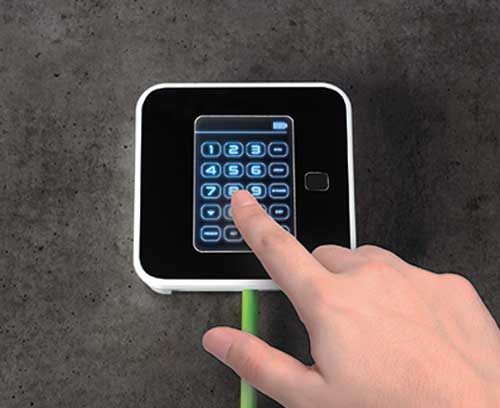

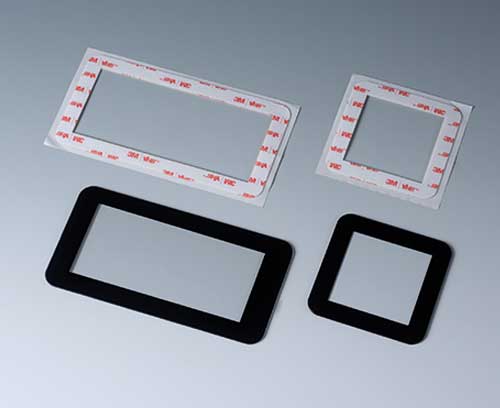

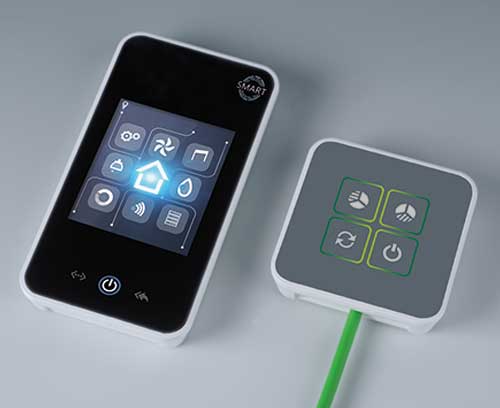

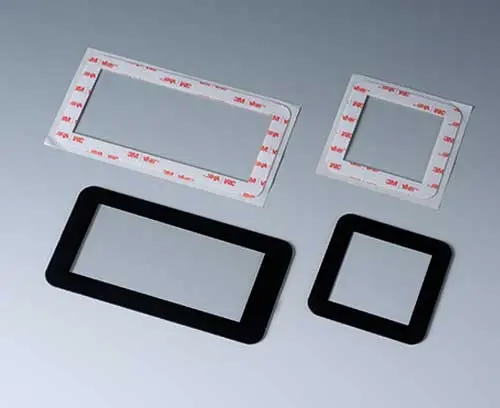

  • accessory glass panel fits to top part and is designed for premium applications, e.g. for use with touch-screens, displays etc. Rear printing possible on request
  • Video

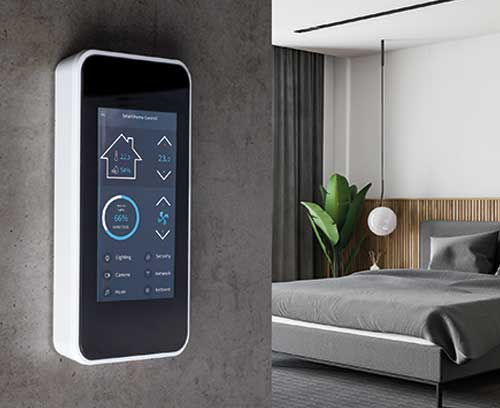

Application fields

Ideal for stationary electronics applications indoors:

  • Building services systems, electrical installation
  • SMART-HOME
  • IoT/IIoT
  • Office
  • Wireless communication
  • Measuring and control technology
  • Medical and laboratory technology, healthcare

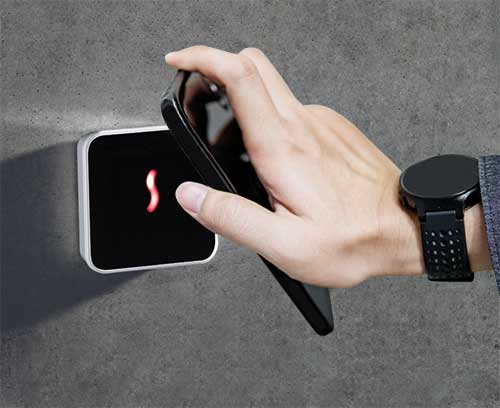

  • Security technology
  • Browse Full List

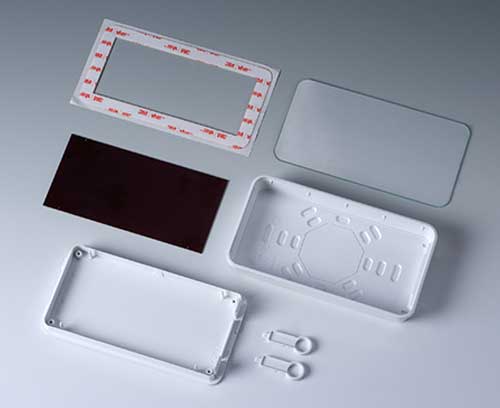

  • Accessories
  • View Customising Options

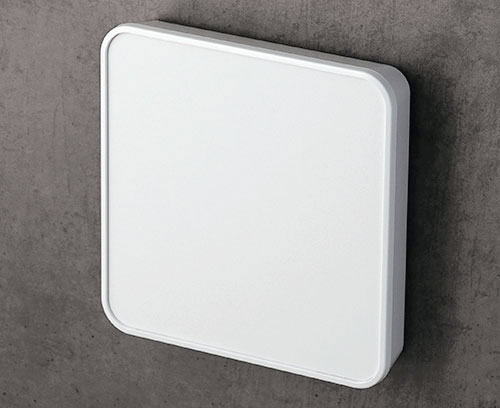

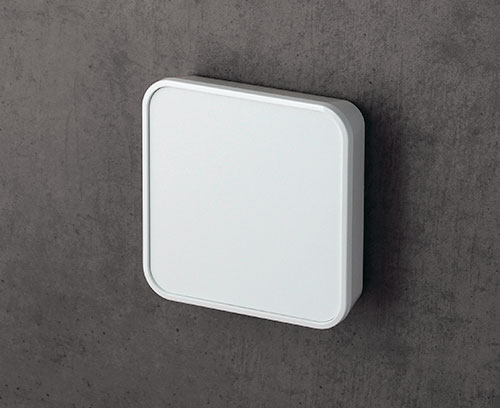

C6402107 SMART-PANEL S84

C6402107

SMART-PANEL S84 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Close

C6402107

SMART-PANEL S84
product added to your list
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
84x84x21.3mm
IP 40
C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Close

C6406107

SMART-PANEL E155
product added to your list
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016
155x84x21.3mm
IP 40

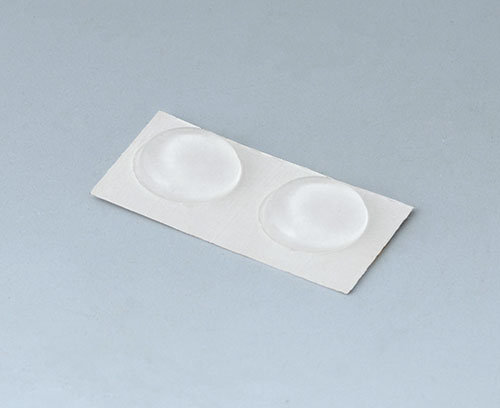

A9210180 Anti-slide feet 10,1 x 1.8 mm

A9210180

Anti-slide feet 10,1 x 1.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210180

Anti-slide feet 10,1 x 1.8 mm
product added to your list
transparent

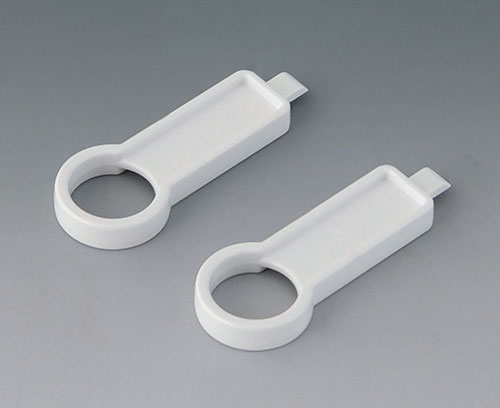

C6502010 Opening tool set

C6502010

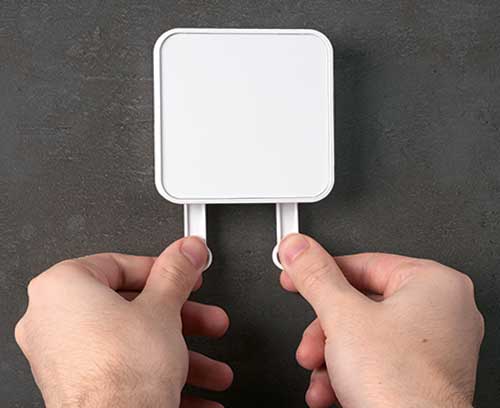

Opening tool set Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply 2 opening tools

Close

C6502010

Opening tool set
product added to your list
ASA+PC-FR (UL 94 V-0)
traffic white RAL 9016

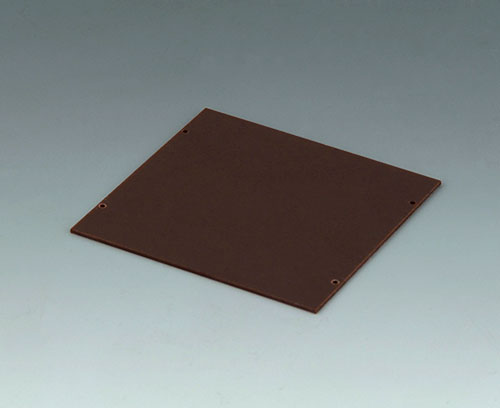

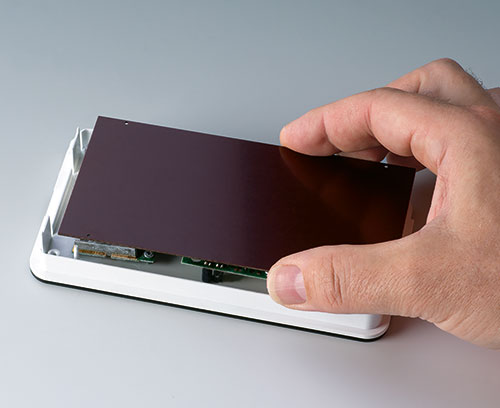

C6502011 Hardboard protection plate

C6502011

Hardboard protection plate The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities.

Supply 1 hardboard plate

Close

C6502011

Hardboard protection plate
product added to your list
65x67x1mm

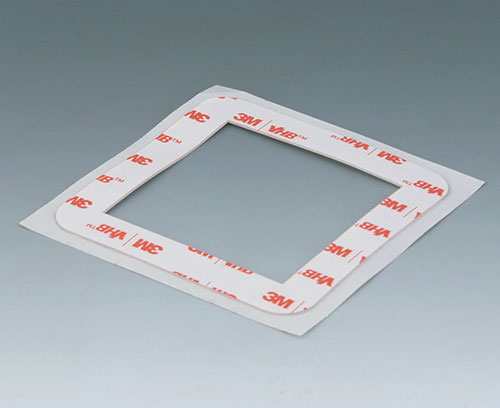

C6502012 Adhesive foil

C6502012

Adhesive foil For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Close

C6502012

Adhesive foil
product added to your list

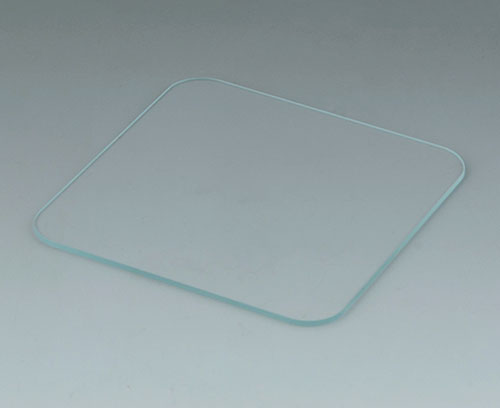

C6502013 Glass panel

C6502013

Glass panel Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface.

Supply 1 glass pane

Close

C6502013

Glass panel
product added to your list
Glass
clear
78.75x78.75x1.6mm

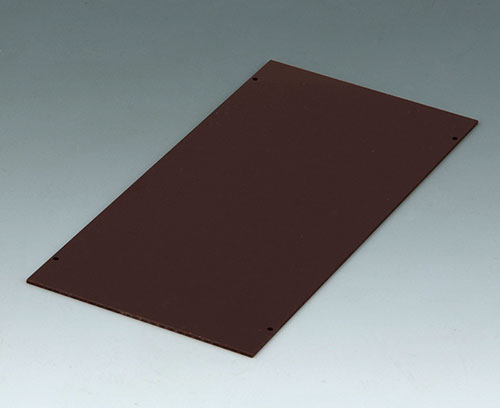

C6506011 Hardboard plate

C6506011

Hardboard plate The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities..

Supply 1 hardboard plate

Close

C6506011

Hardboard plate
product added to your list
136x67x1mm
C6506012 Adhesive foil

C6506012

Adhesive foil For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Close

C6506012

Adhesive foil
product added to your list
C6506013 Glass panel

C6506013

Glass panel Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface.

Supply 1 glass pane

Close

C6506013

Glass panel
product added to your list
Glass
clear
149.75x78.75x1.6mm

Customising options for Smart-Panel

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
