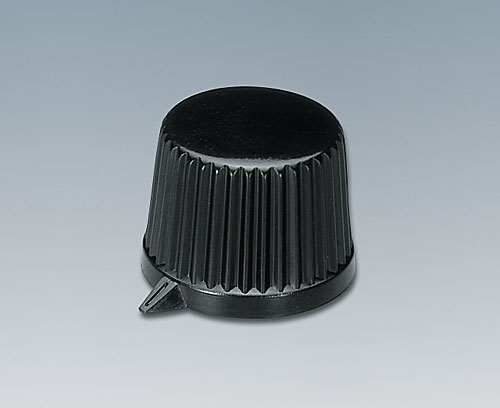

TUNING KNOB, with lateral screw fixing
Suitable for rotary potentiometer with round shaft ends. With indicator.
Supply1 tuning knob
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A1685540
Please select the product details you would like to include in the PDF.
Add to my basket
Customising options for A1685540
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Diameter
11.4 mm
Height
10.5 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 154 KB
- AutoCAD DWG-File 461 KB
- AutoCAD DXF-File 1,756 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 300 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027513.x_t 861 KB
- 00027513.step 1,567 KB
- 00027513.sat 2,407 KB
Weight/1 part
0.7 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Taiwan
