NEW EVOTEC TABLE-TOP ENCLOSURES

Evotec sloping front enclosures

March 2017

DESIGNER TABLE-TOP ENCLOSURES TOUGH ENOUGH FOR OUTDOOR USE

OKW has launched its new EVOTEC designer table-top plastic enclosures for tough working environments.

Applications include measurement and control engineering, IT, medical, laboratory and environmental technology. EVOTEC can also be wall mounted for access control.

These smart new enclosures feature elegant and ergonomic soft contours but are built to be robust. They are moulded from ASA+PC-FR (UL 94 V-0) for enhanced UV stability and can be specified with a sealing kit for IP 65 protection.

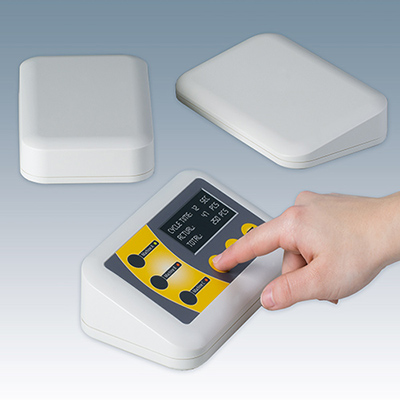

There are three variants: Version I has a flat top with a large operating area for switches, push buttons and touch displays. Version II features a smooth sloping top for desktop applications. Version III also has a sloping top but is recessed to accommodate a membrane keypad or product label.

All three versions have PCB screw pillars in the top and base. Rubber feet ensure stable positioning on flat surfaces. Torx assembly screws prevent tampering – perfect for medical applications.

EVOTEC is available in one size (200 x 124 mm) and in one standard colour: off white (RAL 9002).

Accessories include an IP 65 seal, wall mounting kit and self-tapping screws for fitting PCBs.

OKW can customise EVOTEC on request. Services include: custom colours, EMC shielding; CNC machining; lacquering; water transfer, tampo or digital printing of logos and legends; installation and assembly of accessories; display windows; plastic and aluminium panels.

EVOTEC Technical Video

View range here >>
