NEW WALL MOUNTING KIT FOR EVOTEC

Evotec wall suspension kit

December 2018

ENCLOSURES CAN BE QUICKLY CLIPPED AND UNCLIPPED – OR SECURED IN PLACE

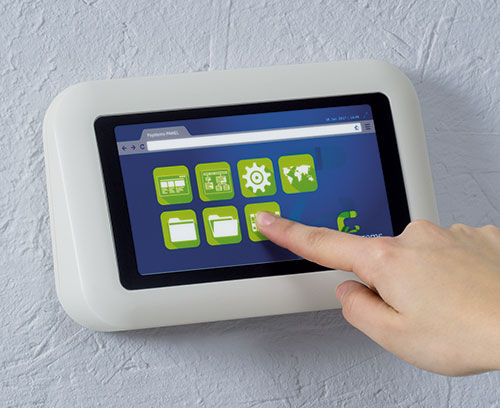

OKW has launched a new suspension element for its EVOTEC designer table-top enclosures, enabling them to be wall mounted.

The new wall kit makes tough and ergonomic EVOTEC ideal for access control. Other applications include measurement and control engineering, IT, medical, laboratory and environmental technology.

Although designed for EVOTEC, the new suspension element will suit any small plastic enclosure with a flat base. Each kit comprises two parts: an adapter attached to the enclosure and a holder fitted to the wall. The adapter (and enclosure) can then be clipped to the wall holder.

The adapter is attached to the base of the enclosure using four tamperproof Torx stainless steel screws (supplied). Four ø 3.5 mm boreholes are required. The holder is fitted to the wall using four screws. The holes in the holder allow a degree of adjustment to speed up installation.

Once clipped into place, the adapter (and enclosure) can be easily unclipped again or secured with two screws (supplied), offering additional protection against removal.

Both the adapter (106 x 75 mm) and the holder are moulded from UV-stable ASA+PC-FR (UL 94 V-0). Prices for the EVOTEC enclosures start at £14. The standard colour is off white (RAL 9002). Custom colours are available on request.

Other accessories for EVOTEC include an IP 65 seal and self-tapping screws for installing PCBs.

View range here >>
