OKW’s Contoured ERGO-CASE For Wearable And Wall-Mounted Electronics

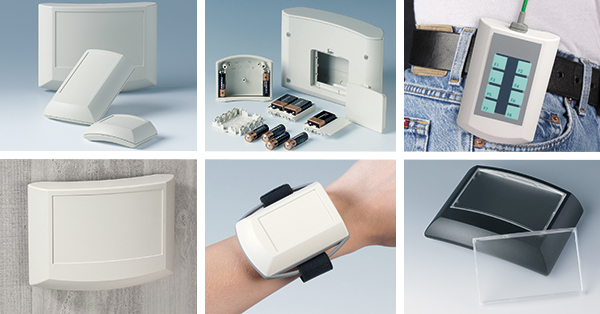

ERGO-CASE wearable and wall-mount enclosures

January 2022

OKW’s body-contoured ERGO-CASE enclosures now offer an even wider choice of options. They can be worn on the wrist or arm, clipped to a belt or pocket – or wall mounted for easy charging and data transfer.

Comfortable ERGO-CASE is ideal for mobile data recording, medical and laboratory electronics, measuring technology, IoT/IIoT, storage and sales logistics, digital open- and closed-loop control, health and wellness equipment.

ERGO-CASE’s unique design features a curved back for added comfort. There is a flat end panel for mounting connectors, switches and LCDs. The top is recessed for installing a membrane keypad. Inside there are screw pillars for mounting PCBs.

The enclosures are available with or without a battery compartment. Sizes M and L can accommodate 4 x AA, 1 or 2 x 9 V cells; the compartment’s snap-in lid can be secured by a screw. Size S has internal supports for 2 x AAA cells, and is available in a flat or high-top version.

Size XS has a soft-touch TPE ring with or without a choice of eyelets for a strap or lanyard. Sizes S, M and L can be wall mounted for charging and easy transmission of data. Size L is also available with a clip-in display panel in translucent PC or opaque ABS.

ERGO-CASE’s four sizes range from 82 x 56 x 24 mm (XS) to 150 x 200 x 54/69 mm (L). The enclosures are moulded from ABS (UL 94 HB) as standard in off-white (RAL 9002) or black (RAL 9005).

A wide range of accessories includes battery compartment cradles, wall mounting elements, a ring eyelet, battery contacts and clips, IP 54 sealing rings, belt/pocket clips, belt straps, carrying straps, a wrist strap, a shock-absorbing protector and self-tapping PCB screws.

Customising options include CNC machining, lacquering, printing or laser marking of legends and logos, decor foils, EMC shielding, installation and assembly.

View ERGO-CASE range >>
