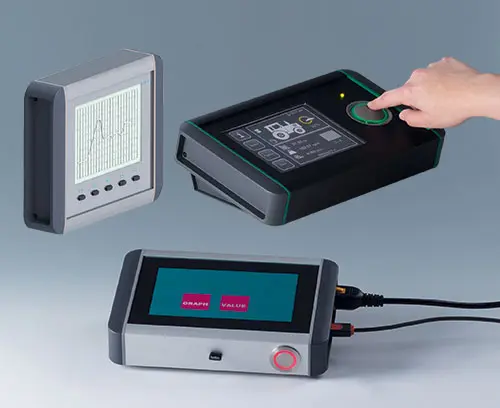

Sophisticated extruded aluminium enclosures for central control units
3 basic enclosures in two colour combinations; special profile lengths and versions on demandEasy assemblyHigh-quality surfaces with anodised case body, designer seals and plastic side coversSide covers with recessed area for protecting cables, connectors, switches etc.Highly versatile design can be used as a handheld, table-top or sloping front enclosureAccessory wall suspension element (enclosure orientation in horizontal format)M3 square-head nuts set (accessory) for mounting a PCB to the bottom profile, or guide rails in the top profile for slide-in PCBsAluminium end plate (ordered when specifying a SMART-TERMINAL enclosure from individual parts)Application example: control engineeringApplication example: communication technologySophisticated extruded aluminium enclosures for central control units

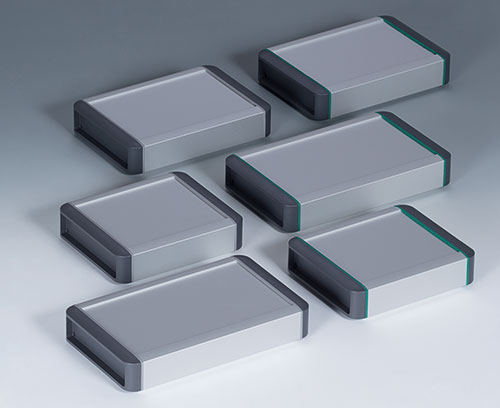

3 basic enclosures in two colour combinations; special profile lengths and versions on demand

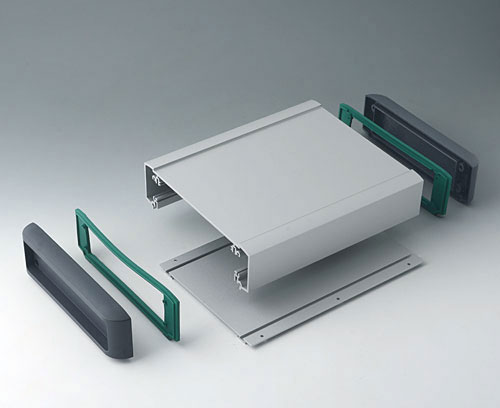

Easy assembly

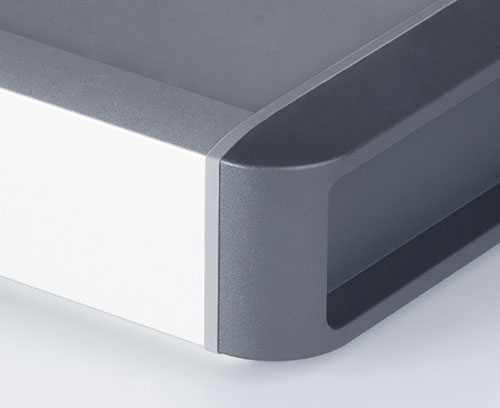

High-quality surfaces with anodised case body, designer seals and plastic side covers
Side covers with recessed area for protecting cables, connectors, switches etc.

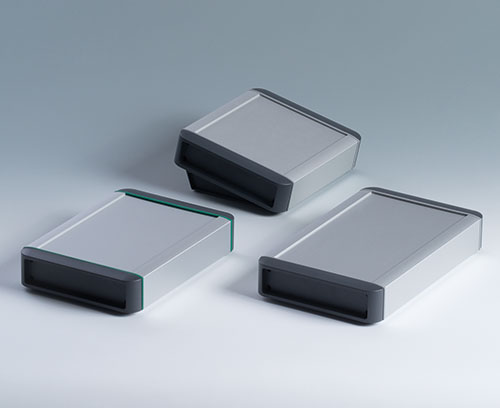

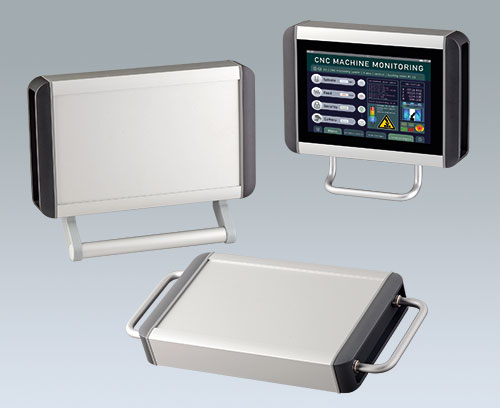

Highly versatile design can be used as a handheld, table-top or sloping front enclosure

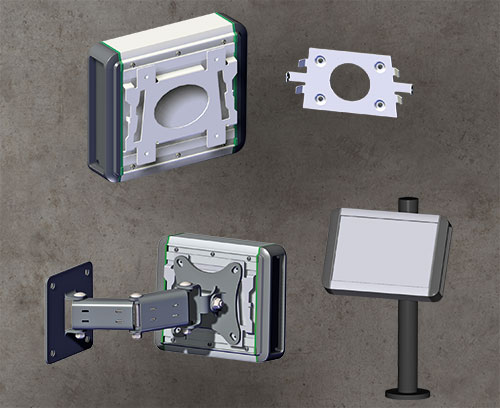

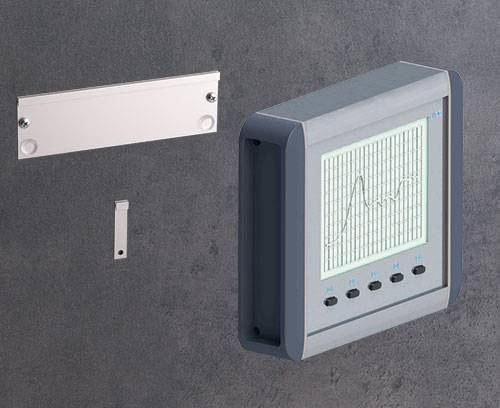

Accessory wall suspension element (enclosure orientation in horizontal format)

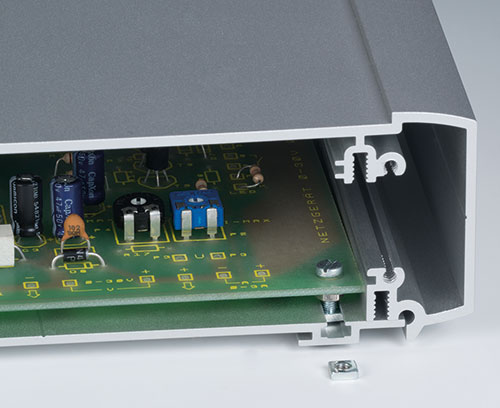

M3 square-head nuts set (accessory) for mounting a PCB to the bottom profile, or guide rails in the top profile for slide-in PCBs

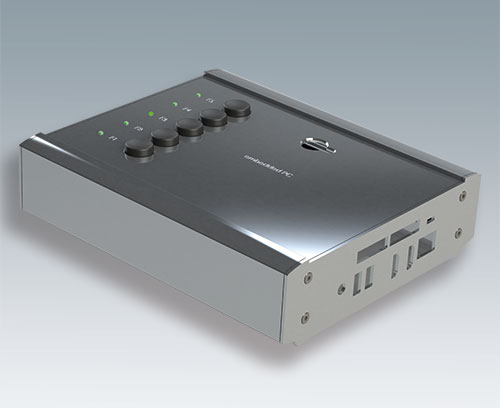

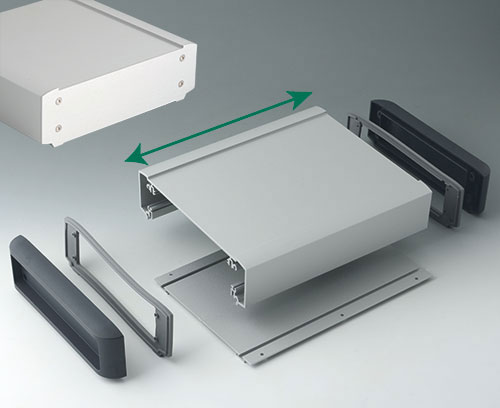

Aluminium end plate (ordered when specifying a SMART-TERMINAL enclosure from individual parts)

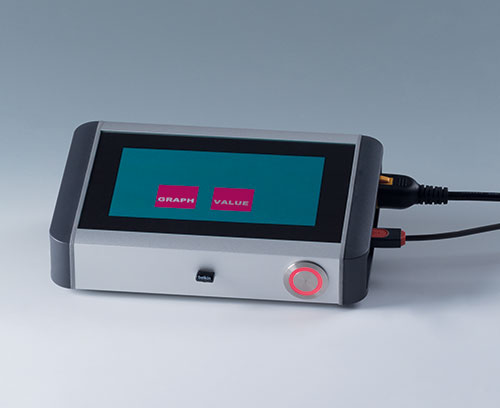

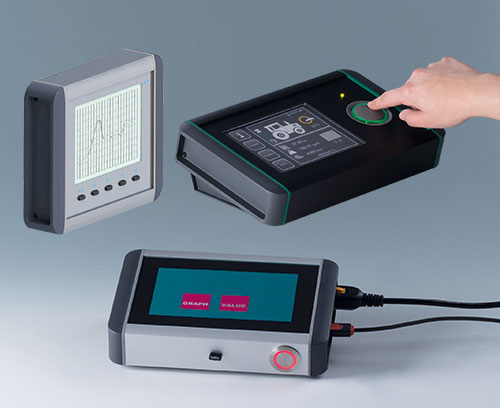

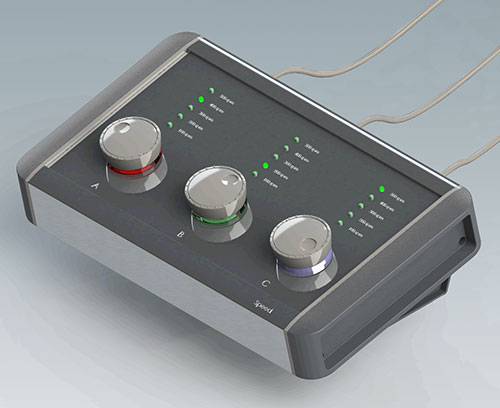

Application example: control engineering
Application example: communication technology
Sophisticated extruded aluminium enclosures for central control units

Smart-Terminal

Sophisticated aluminium profile enclosures for central control units

Our new SMART-TERMINAL aluminium profile enclosures feature a highly quality matt anodised finish. These robust, elegant and highly attractive cases offer plenty of space for large-volume electronic assemblies, for example touch screens, display modules, PCBs etc. A variety of technical advantages, individual profile lengths on request, and creative designer options make the SMART-TERMINAL the last word in excellence for tough industrial display enclosures.

  • 3 basic enclosures in the profile lengths 160 mm, 200 mm and 240 mm (overall length with covers + 42 mm), width 170 mm, height 50 mm
  • covers in lava (similar to anthracite) moulded in high-quality ASA+PC-FR plastic
  • designer seals made of TPV material in volcano or green
  • highly versatile design can be used as table-top, sloping front and wall-mounted enclosures
  • recessed area in top for the installation and protection of displays, membrane keypads and operating elements
    (SMART-TERMINAL 160: 5.7"/14 cm; SMART-TERMINAL 200 & 240: 7"/17.8 cm)
  • horizontal PCB guides and screw channels inside the enclosure
  • two-part aluminium profile facilitates the assembly of the enclosure and installation of the components, with no visible fixing screws
  • flat areas for easy installation of the interfaces
  • side covers with recessed area to protect the cables and connectors
  • optional accessories: wall suspension element, case canting kit for an ergonomic reading angle of 12°, set of square-head nuts for PCB mounting

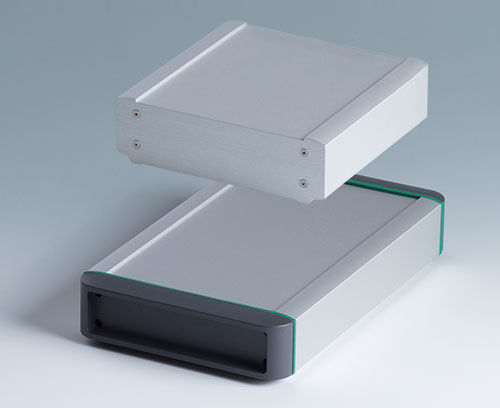

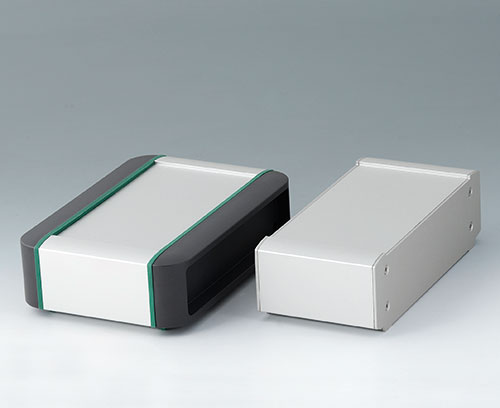

    Special sizes and versions
  • individual profile lengths to customer specification
  • on request, designer seals and covers in other colours as creative/visual features, minimum order quantity 200 pcs
  • simple aluminium end plate for fitting to the case profile, when specifying a SMART-TERMINAL enclosure from individual parts

Applications

Peripheral and interface equipment. Office. Communications technology. Safety engineering. Biometrics. Medical and laboratory technology. Health care. Automation. Measurement and control engineering.

  • Video



  • Select Versions
  • Catalogue Documents
  • View Customising Options

Select which version/size you want and click "select".

Complete enclosure
Smart-Terminal Complete Enclosures
System components for individual combinations
Smart-Terminal System Components
