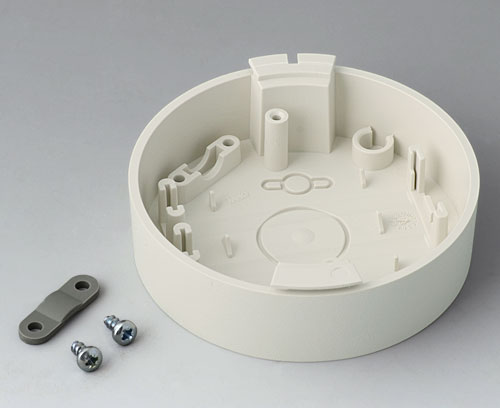

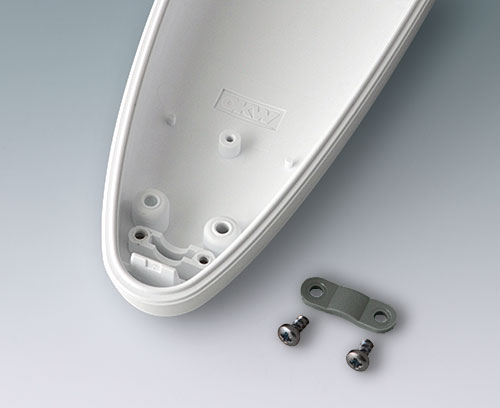

A9199005 Strain relief

A9199005

Strain relief

Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply

1 strain relief device, 2 screws

  • To be used for
A9076107 DATEC-CONTROL XS, Vers. I

A9076107

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down (battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076107

DATEC-CONTROL XS, Vers. I ABS (UL 94 HB)
off-white RAL 9002
200x94x39.5mm
IP 65 opt.
A9076109 DATEC-CONTROL XS, Vers. I

A9076109

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076109

DATEC-CONTROL XS, Vers. I ABS (UL 94 HB)
black RAL 9005
200x94x39.5mm
IP 65 opt.
A9076207 DATEC-CONTROL XS, Vers. II

A9076207

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076207

DATEC-CONTROL XS, Vers. II ABS (UL 94 HB)
off-white RAL 9002
200x94x39.5mm
IP 65 opt.
A9076209 DATEC-CONTROL XS, Vers. II

A9076209

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down.(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9076209

DATEC-CONTROL XS, Vers. II ABS (UL 94 HB)
black RAL 9005
200x94x40mm
IP 65 opt.
A9077107 DATEC-CONTROL S, Vers. I

A9077107

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077107

DATEC-CONTROL S, Vers. I ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.
A9077109 DATEC-CONTROL S, Vers. I

A9077109

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077109

DATEC-CONTROL S, Vers. I ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.
A9077207 DATEC-CONTROL S, Vers. II

A9077207

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077207

DATEC-CONTROL S, Vers. II ABS (UL 94 HB)
off-white RAL 9002
228x117x47mm
IP 65 opt.
A9077209 DATEC-CONTROL S, Vers. II

A9077209

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

Close

A9077209

DATEC-CONTROL S, Vers. II ABS (UL 94 HB)
black RAL 9005
228x117x47mm
IP 65 opt.

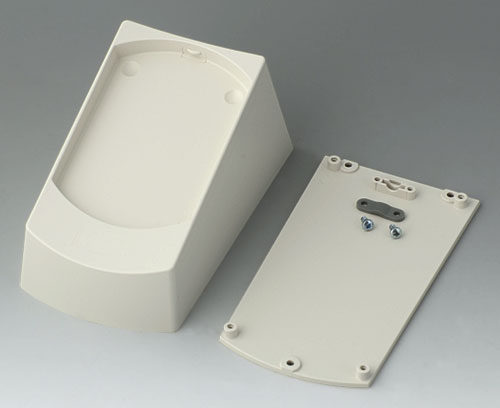

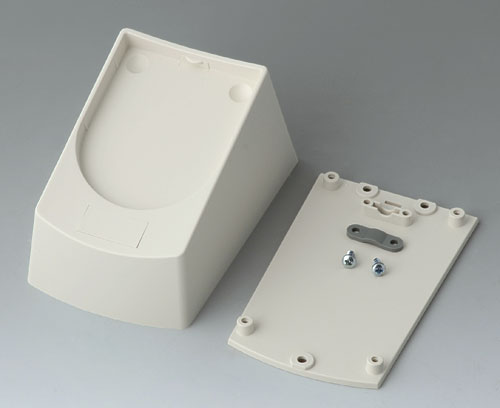

A9176137 Station XS

A9176137

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9176137

Station XS ABS (UL 94 HB)
off-white RAL 9002

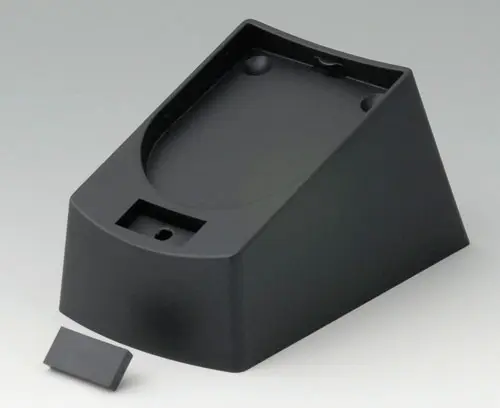

A9176139 Station XS

A9176139

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9176139

Station XS ABS (UL 94 HB)
black RAL 9005

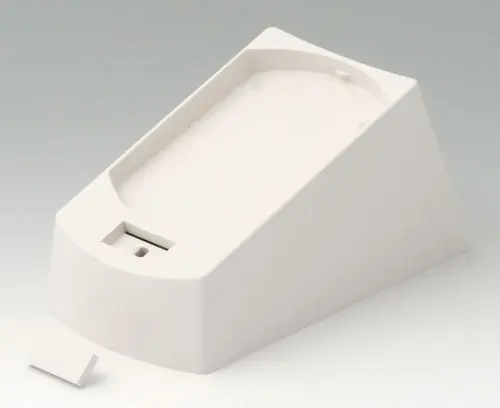

A9177137 Station S

A9177137

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9177137

Station S ABS (UL 94 HB)
off-white RAL 9002

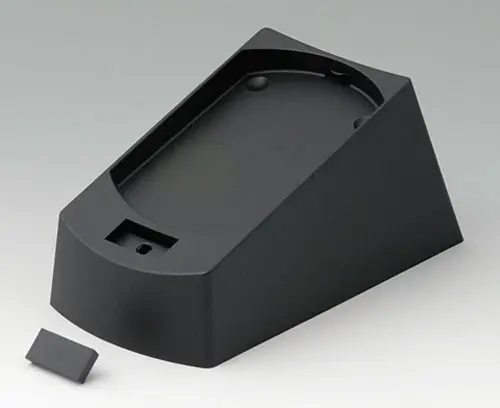

A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Close

A9177139

Station S ABS (UL 94 HB)
black RAL 9005
A9912637 LUX CASE 150, Vers. I

A9912637

LUX CASE 150, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without battery compartment, socket for cable strain relief

Supply 1 top, center section, base and assembly kit

Close

A9912637

LUX CASE 150, Vers. I ABS (UL 94 HB)
off-white RAL 9002
118x150x57mm
A9915737 LUX CASE 190, Vers. I

A9915737

LUX CASE 190, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without battery compartment, socket for cable strain relief

Supply 1 top, center section, base and assembly kit

Close

A9915737

LUX CASE 190, Vers. I ABS (UL 94 HB)
off-white RAL 9002
148x190x67mm
A9917837 LUX CASE 230, Vers. I

A9917837

LUX CASE 230, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without ventilation slots, with pillars for strain relief

Supply 1 top, center section, base and assembly kit

Close

A9917837

LUX CASE 230, Vers. I ABS (UL 94 HB)
off-white RAL 9002
173x230x136mm
A9917847 LUX CASE 230, Vers. II

A9917847

LUX CASE 230, Vers. II Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version With ventilation slots, with pillars for strain relief

Supply 1 top, center section, base and assembly kit

Close

A9917847

LUX CASE 230, Vers. II ABS (UL 94 HB)
off-white RAL 9002
173x230x136mm
A9917857 LUX CASE 230, Vers. III

A9917857

LUX CASE 230, Vers. III Three-piece case with handle. Push button mechanism with 30° indexing. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without ventilation slots and with handle, with pillars for strain relief

Supply 1 top, center section, base, handle and assembly kit

Close

A9917857

LUX CASE 230, Vers. III ABS (UL 94 HB)
off white/pebble grey RAL 9002/7032
173x230x136mm
A9917877 LUX CASE 230, Vers. IV

A9917877

LUX CASE 230, Vers. IV Three-piece case with handle. Push button mechanism with 30° indexing. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version With ventilation slots and handle, with pillars for strain relief

Supply 1 top, center section, base, handle and assembly kit

Close

A9917877

LUX CASE 230, Vers. IV ABS (UL 94 HB)
off white/pebble grey RAL 9002/7032
173x230x136mm
B5010007 Bottom and top part R110 F

B5010007

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010007

Bottom and top part R110 F ABS (UL 94 HB)
off-white RAL 9002
⌀110x30mm

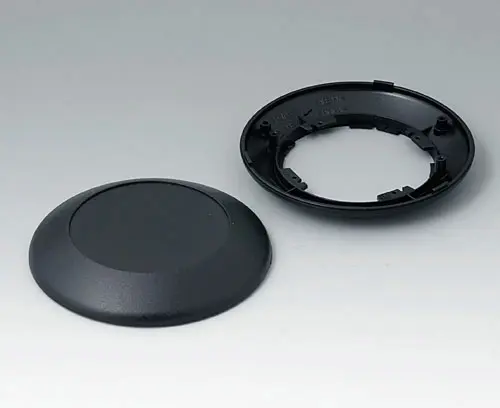

B5010009 Bottom and top part R110F

B5010009

Bottom and top part R110F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010009

Bottom and top part R110F ABS (UL 94 HB)
black RAL 9005
⌀110x30mm
B5010107 Bottom and top part R110 H

B5010107

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010107

Bottom and top part R110 H ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm

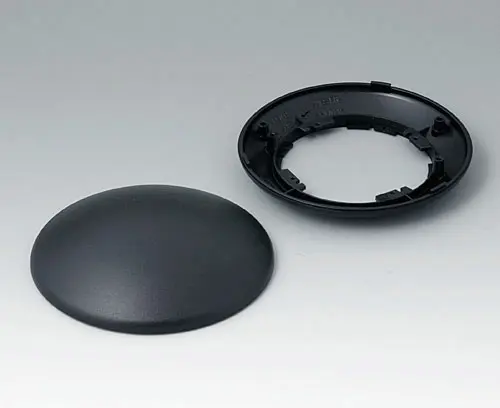

B5010109 Bottom and top part R110 H

B5010109

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010109

Bottom and top part R110 H ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010207 Bottom and top part R110 F

B5010207

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010207

Bottom and top part R110 F ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm

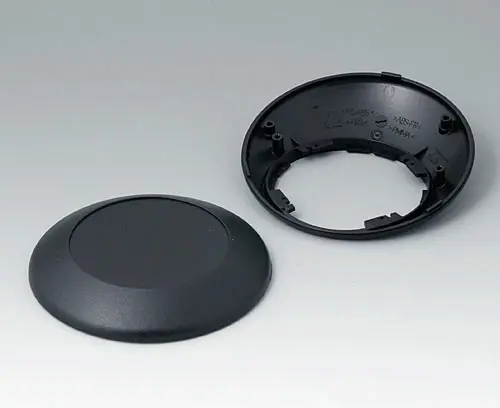

B5010209 Bottom and top part R110 F

B5010209

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010209

Bottom and top part R110 F ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010307 Bottom and top part R110 H

B5010307

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010307

Bottom and top part R110 H ABS (UL 94 HB)
off-white RAL 9002
⌀110x41mm

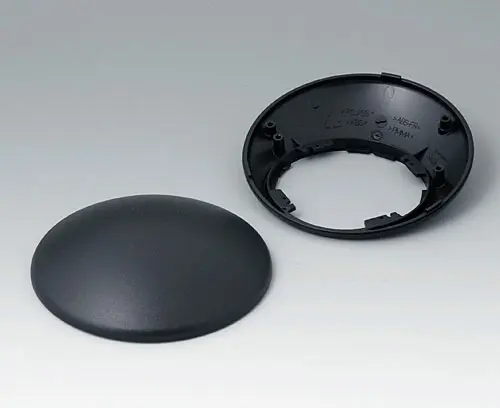

B5010309 Bottom and top part R110 H

B5010309

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010309

Bottom and top part R110 H ABS (UL 94 HB)
black RAL 9005
⌀110x41mm
B5011117 Base

B5011117

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011117

Base ABS (UL 94 HB)
off-white RAL 9002

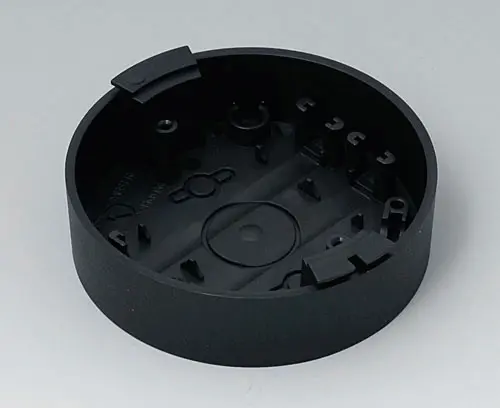

B5011119 Base

B5011119

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011119

Base ABS (UL 94 HB)
black RAL 9005
B5012207 Bottom and top part S110F

B5012207

Bottom and top part S110F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012207

Bottom and top part S110F ABS (UL 94 HB)
off-white RAL 9002
110x110x38mm
B5012209 Bottom and top part S110 F

B5012209

Bottom and top part S110 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012209

Bottom and top part S110 F ABS (UL 94 HB)
black RAL 9005
110x110x38mm
B5015007 Bottom and top part O160 F

B5015007

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015007

Bottom and top part O160 F ABS (UL 94 HB)
off-white RAL 9002
160x110x30mm

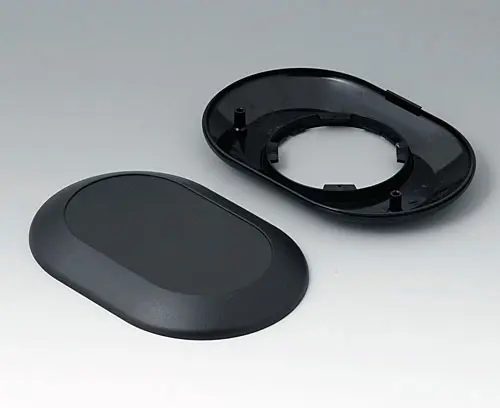

B5015009 Bottom and top part O160 F

B5015009

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015009

Bottom and top part O160 F ABS (UL 94 HB)
black RAL 9005
160x110x30mm
B5015107 Bottom and top part O160 H

B5015107

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015107

Bottom and top part O160 H ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm

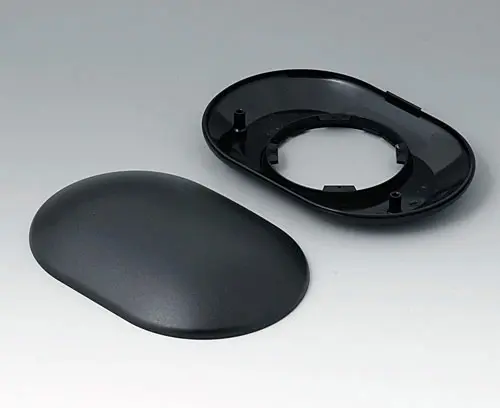

B5015109 Bottom and top part O160 H

B5015109

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015109

Bottom and top part O160 H ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015207 Bottom and top part O160 F

B5015207

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015207

Bottom and top part O160 F ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm

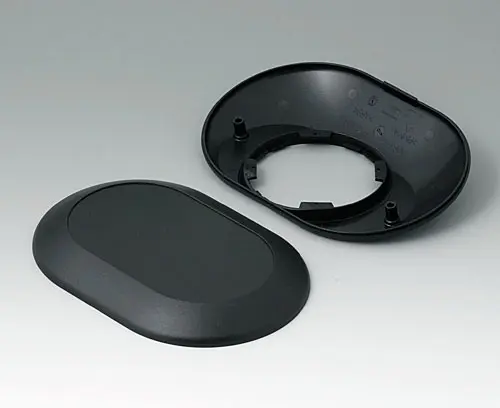

B5015209 Bottom and top part O160 F

B5015209

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015209

Bottom and top part O160 F ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015307 Bottom and top part O160 H

B5015307

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015307

Bottom and top part O160 H ABS (UL 94 HB)
off-white RAL 9002
160x110x41mm
B5015309 Bottom and top part O160 H

B5015309

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015309

Bottom and top part O160 H ABS (UL 94 HB)
black RAL 9005
160x110x41mm
B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Close

B5017207

Bottom and top part E160 F ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5017209 Bottom and top part E160 F

B5017209

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Close

B5017209

Bottom and top part E160 F ABS (UL 94 HB)
black RAL 9005
160x110x38mm
  • Technical Data
  • Purchasing Data
Material
Colour
volcano
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
73181558
Country of manufacture
Germany
trafficflow
