B6021021 DIN-MODULAR CASE TYPE A

B6021021

DIN-MODULAR CASE TYPE A

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61 554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Components/Accessories
  • View Customising Options

Accessory to complete

B6121111 Front panel

B6121111

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121111

Front panel
product added to your list
Aluminium
matt anodised
67.7x31.6x1.5mm

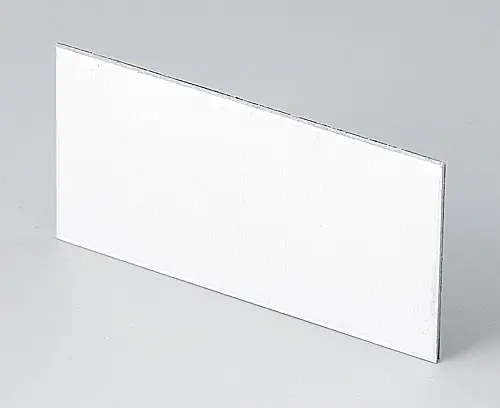

B6121112 Rear panel

B6121112

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Close

B6121112

Rear panel
product added to your list
Aluminium
matt anodised
57.6x28.6x1mm
B6121221 Front panel

B6121221

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121221

Front panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
67.8x31.7x2mm

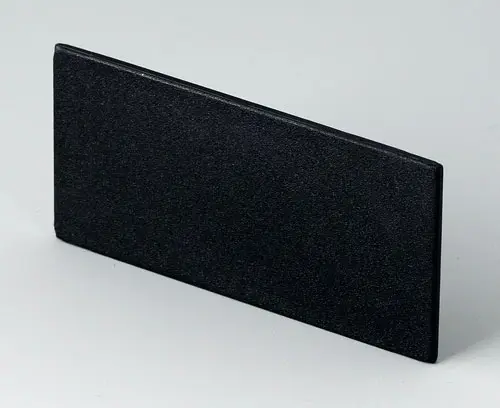

B6121222 Rear panel

B6121222

Rear panel Rear panel for DIN-MODULAR CASE 72 x 36.

Supply 1 rear panel

Close

B6121222

Rear panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
57.6x28.7x1.5mm

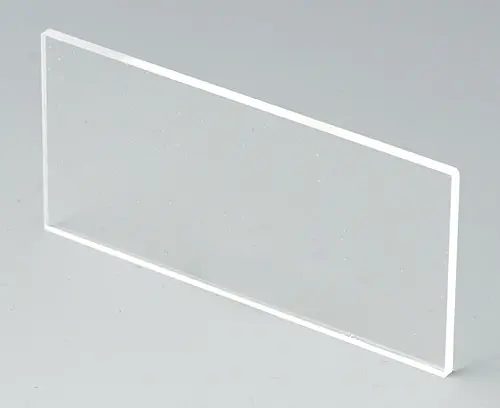

B6121331 Front panel

B6121331

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121331

Front panel
product added to your list
Acrylic glass
transparent
67.7x31.6x2mm
B6121341 Front panel

B6121341

Front panel Front panel for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121341

Front panel
product added to your list
Acrylic glass
red transparent
67.7x31.6x2mm
B6121451 Front panel

B6121451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 72 x 36.

Supply 1 front panel

Close

B6121451

Front panel
product added to your list
PC (IR)
67.8x31.8x2mm

Customising options for B6021021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Standards
Width
72 mm
Height
36 mm
Depth
75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
44 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
