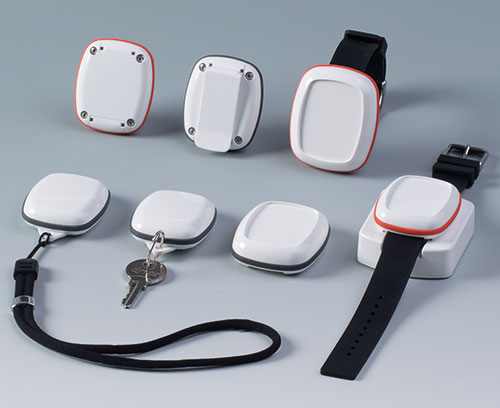

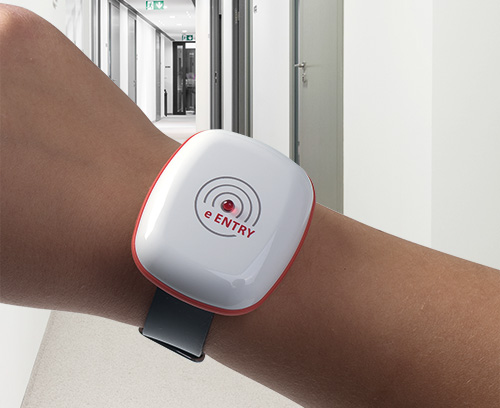

BODY-CASE comfortable to wear on the body
Application perfectedEnclosures with / without recessed surface for membrane keypadFastening eyelet as accessory (see fastening kit)Loose in articles of clothingPocket clip as accessory (see fastening kit)Fastening kit (1 pocket clip, 1 fastening eyelet, 2 covers)Covers (for one side and/or both sides – according to requirements)With recessed surface for the protection of a decor foil or membrane keypadBODY-CASE with silicone wrist strap, easy to clean (accessory)BODY-CASE L and M with stationStation (Mountable): top part only for mounting individually or in series on a table standInductive charging (example)Rechargeable batteries with charging coil in the bottom part (example)BODY-CASE comfortable to wear on the body
Application perfected
Enclosures with / without recessed surface for membrane keypad

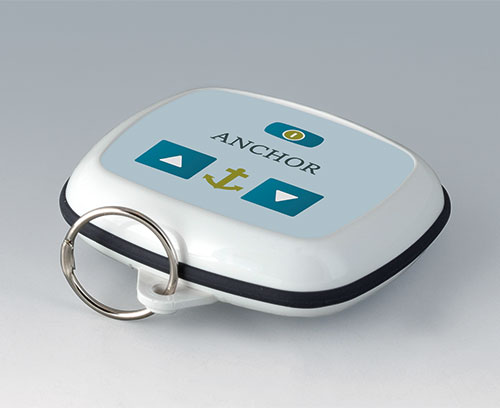

Fastening eyelet as accessory (see fastening kit)

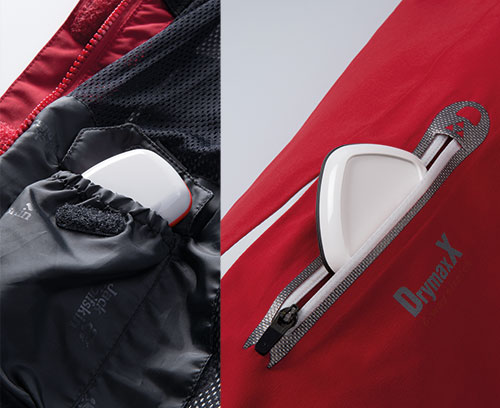

Loose in articles of clothing

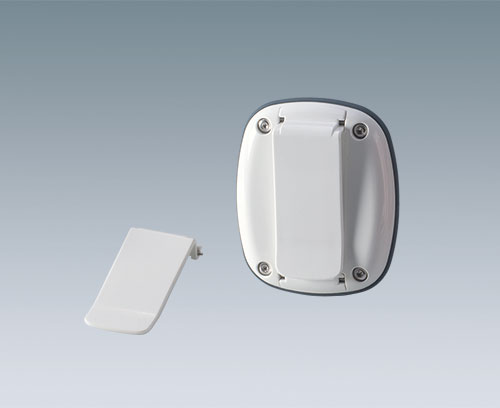

Pocket clip as accessory (see fastening kit)

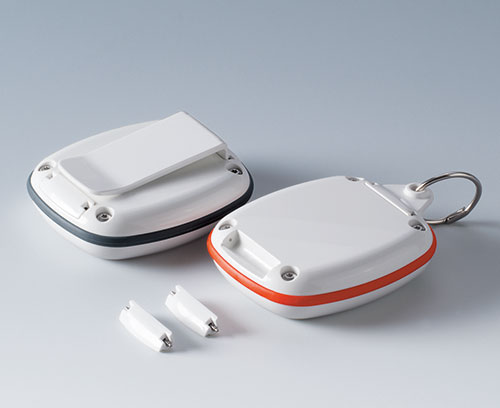

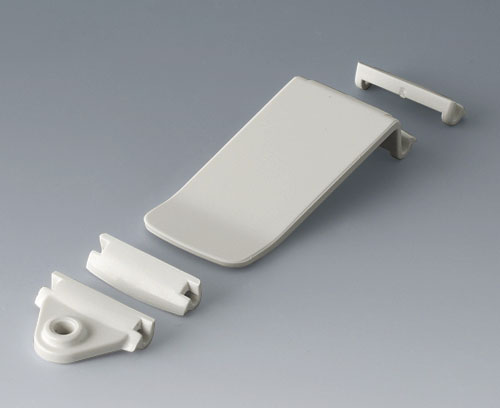

Fastening kit (1 pocket clip, 1 fastening eyelet, 2 covers)

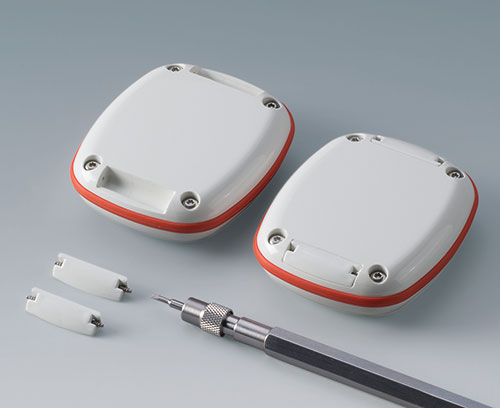

Covers (for one side and/or both sides – according to requirements, see fastening kit)

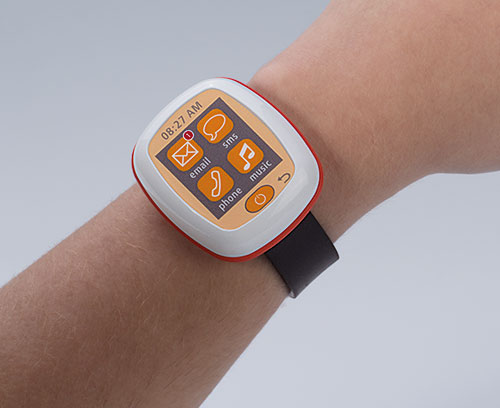

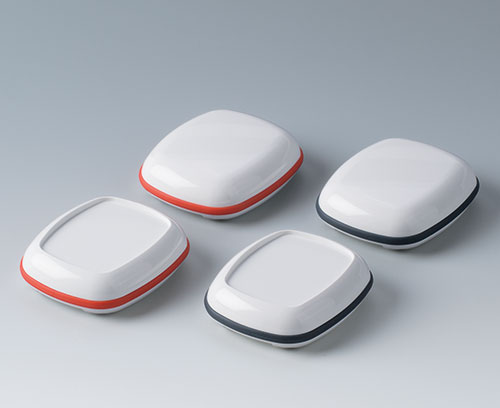

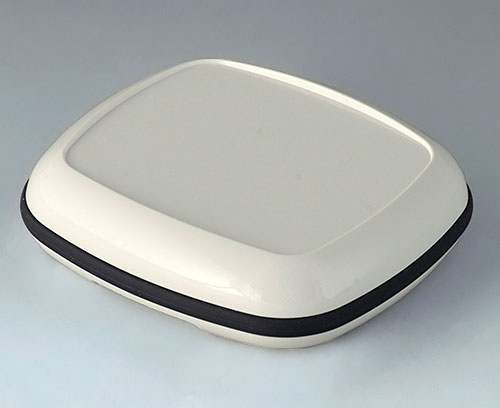

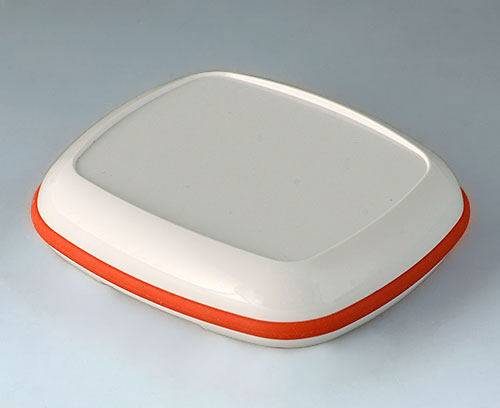

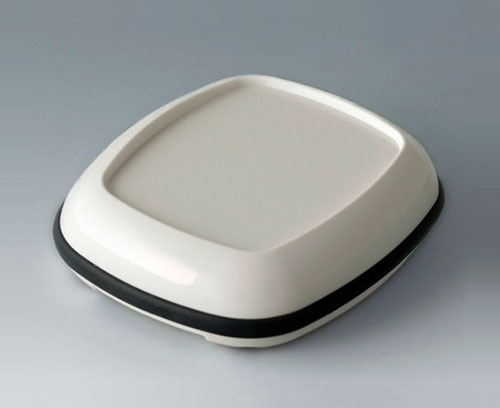

With recessed surface for the protection of a decor foil or membrane keypad

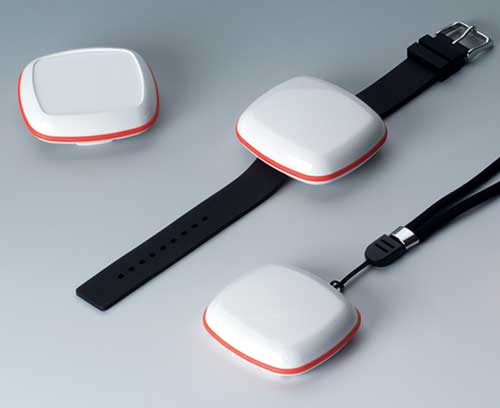

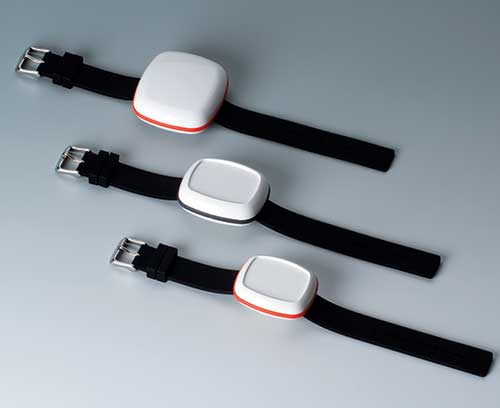

BODY-CASE L & M with silicone wrist strap, easy to clean (accessory)

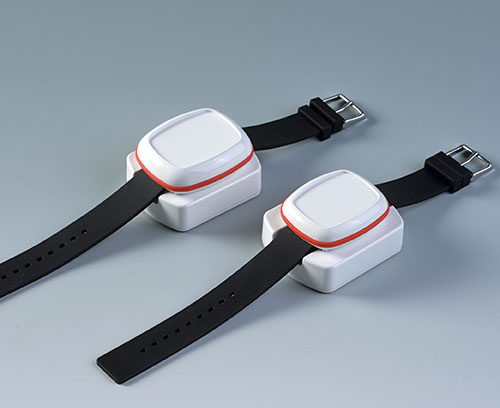

BODY-CASE L and M with station

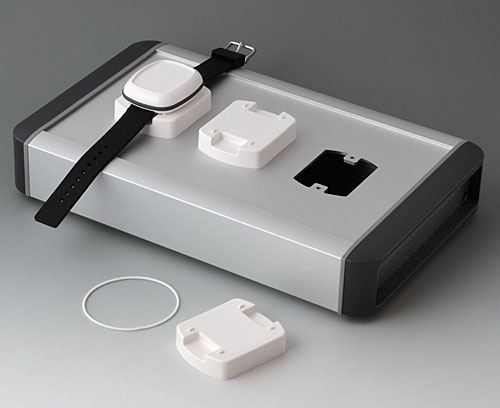

Station (Mountable): top part only for mounting individually or in series on a table stand

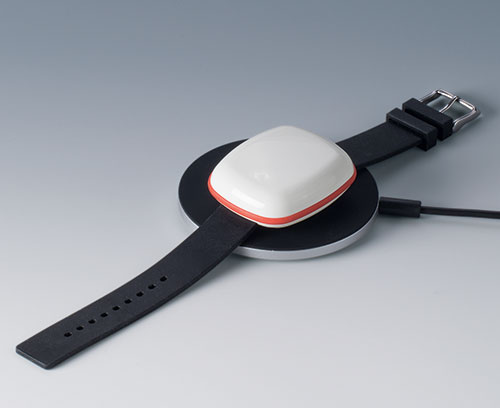

Example of 'inductive charging' with the use of rechargeable batteries with charging coils

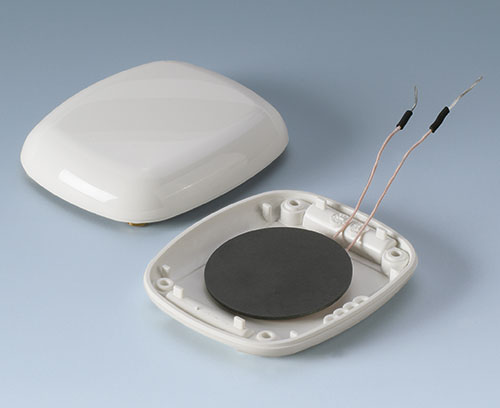

Example of rechargeable batteries with charging coil in the bottom part

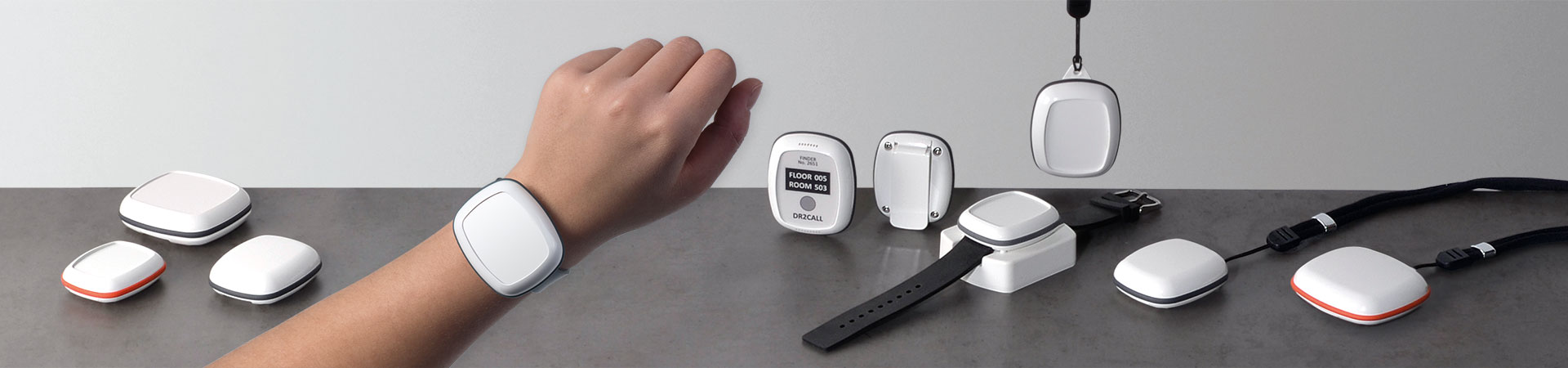

BODY-CASE comfortable to wear on the body

Body-Case

Small enclosure with flair – comfortable to wear on the body

OKW’s BODY-CASE is the new fully "wearable" standard plastic enclosure. The design is perfect for so-called "wearable technologies": on your arm, around your neck, clipped to a shirt or trouser pocket, or carried loose in an article of clothing.

  • special plastic enclosures for components and sensors that are worn on the body or close to the body, available in two sizes
  • fulfils its function in the simplest way, without restricting the user in his or her activities and without being conspicuous
  • modern appearance with highly polished surfaces and a matt TPV sealing ring
  • easy differentiation through the use of individual, exclusive watch straps (18 mm wide)
  • easy operation with the help of pushbuttons or touchscreens, at the press of a button and with the help of voice commands or gestures
  • wireless networking
  • high protection class IP 65
  • moulded in ASA plastic with a high UV protection
  • internal power supply with round or button cells which are mounted directly on the PCB – alternatively, the use of a rechargeable battery with receiving charging coils for charging the device inductively
  • top part with / without recessed surface for the protection of a decor foil or membrane keyboard
  • enclosure assembly with four high-quality stainless steel screws with Torx drive; two spring bars for mounting accessories included in the supply of the enclosure
  • optional accessories, suitable for sizes L and M: wrist strap, fastening kit (clip, eyelet), station etc.

Applications

  • Mobile data recording and data transmission
  • Wearables
  • IoT/ IIoT

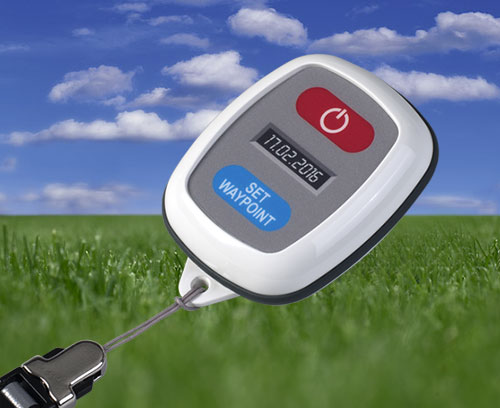

  • Tracking and monitoring equipment

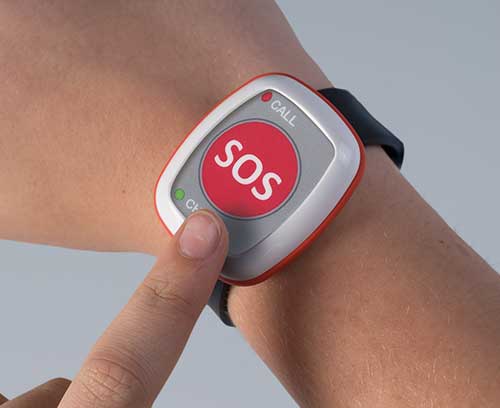

  • Emergency call and notification systems
  • Bio-feedback sensors in the fields of health care, medical technology, in therapeutic and social fields
  • Leisure and sports
  • Digital communication technology
  • Stock and sales logging
  • Safety engineering
  • Measuring and control technology
  • Automation
  • Jobs where safety with permanent localisation is required


  • Browse Full List
  • Catalogue Documents
  • View Customising Options
NEW PRODUCT
View

B1604107  Add to my list
BODY-CASE M, without recess

ASA (UL 94 HB)
traffic white RAL 9016
50x41x16mm
IP 65

B1604117  Add to my list

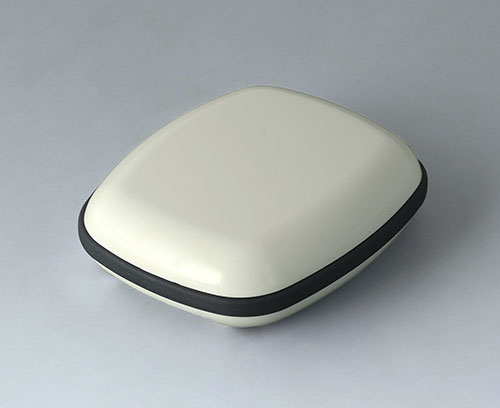

BODY-CASE M, without recess

ASA (UL 94 HB)
traffic white RAL 9016
50x41x16mm
IP 65

B1604207  Add to my list

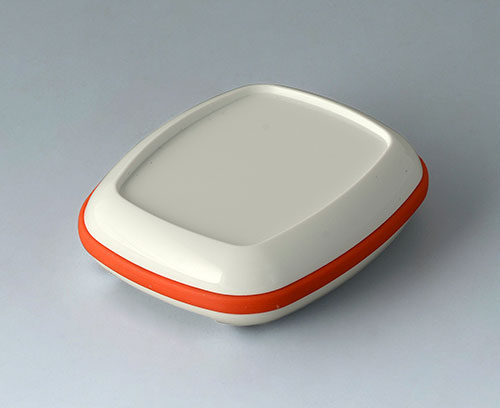

BODY-CASE M, with recess

ASA (UL 94 HB)
traffic white RAL 9016
50x41x16mm
IP 65

B1604217  Add to my list
BODY-CASE M, with recess

ASA (UL 94 HB)
traffic white RAL 9016
50x41x16mm
IP 65

B1606107  Add to my list
BODY-CASE L, without recess

ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65

B1606117  Add to my list
BODY-CASE L, without recess

ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65

B1606207  Add to my list
BODY-CASE L, with recess

ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65

B1606217  Add to my list
BODY-CASE L, with recess

ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65

Accessory "station"

B1704017  Add to my list
Station M

ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm

B1704807  Add to my list
Station M (Mountable)

ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm

B1706017  Add to my list
Station L

ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm

B1706807  Add to my list
Station L (Mountable)

ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm

Accessory "protection"

B1706003  Add to my list
Seal, for Station (Mountable) M/L

Accessory "carrying"

B1706001  Add to my list
Fastening kit

ASA (UL 94 HB)
traffic white RAL 9016

B1706202  Add to my list
Wrist strap, 18 mm

Silicone
black

B1706203  Add to my list
Spring bar tool

Stainless steel

B9100043  Add to my list
Hand strap, woven

black
200mm

B9100063  Add to my list
Carrying strap, textile

black
860mm

Accessory "screws"

A0325080  Add to my list
Self-tapping screws 2.5 x 8 mm (PZ1)

A0399T06  Add to my list
Torx T6 screwdriver

B9100063

Without quick-action lock.

Supply
1 carrying strap

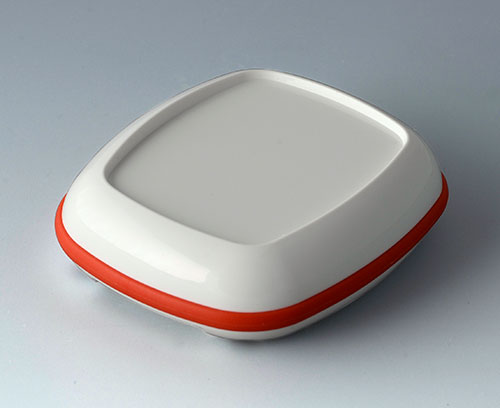

B1606207

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

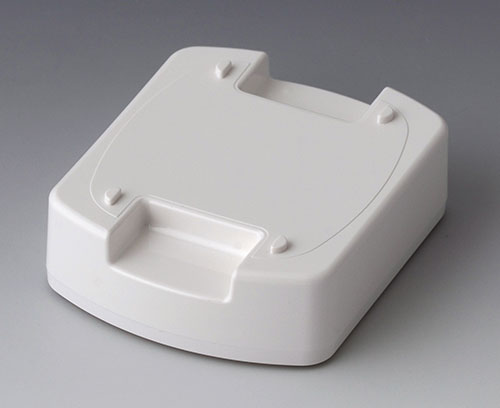

B1706017

For storing BODY-CASE L when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Supply
Top part, bottom panel, assembly kit

B1604207

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

A0399T06

Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T6 type screws. (The original part may differ from the part shown in the picture.)

Supply
1 T6 screwdriver

B1604107

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

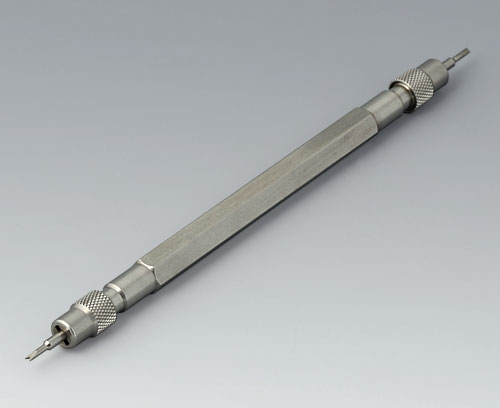

B1706203

Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply
1 Spring bar tool

B1606217

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

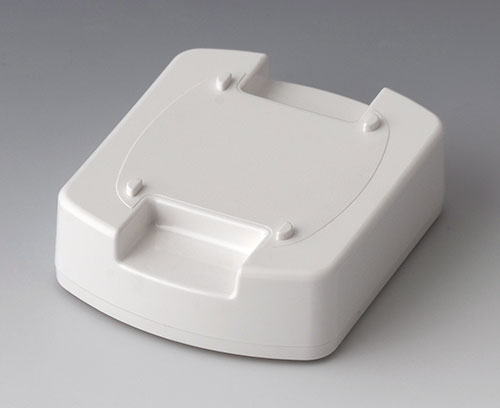

B1704017

For storing BODY-CASE M when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Supply
Top part, bottom panel, assembly kit

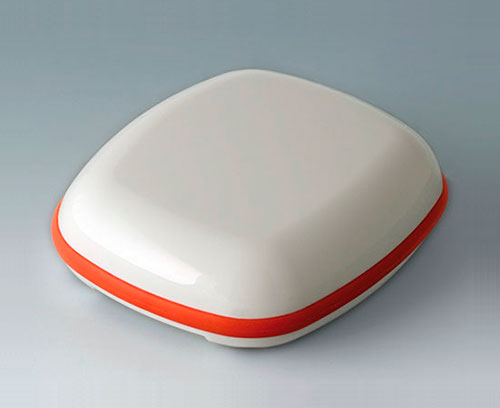

B1606107

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

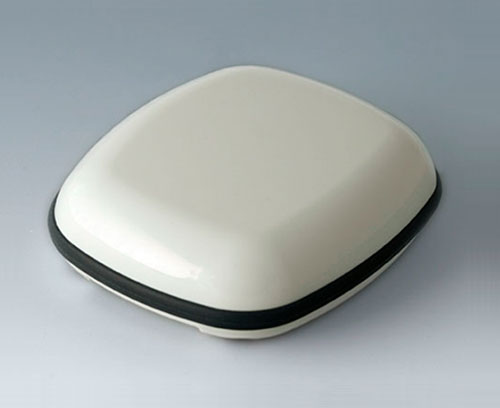

B1606117

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B1706003

Provides protection class IP 54. Fits into a groove in the top part of the size M and size L Stations (Mountable).

Supply
1 seal

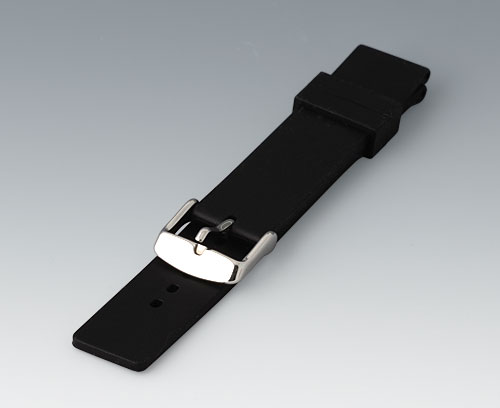

B1706202

Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 18 mm. Total length without buckle approx. 193 mm. Buckle made of stainless steel. Fastening with spring bars (supplied with the enclosures).

Supply
1 wrist strap

B1604117

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
Without recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B1706807

Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE L when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Supply
1 top part

B1704807

Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE M when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Supply
1 top part

A0325080

Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply
1 self-tapping screw

B1604217

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit, lanyard etc. as accessories.

Version
With recess

Supply
Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

B1706001

Special accessories for BODY-CASE. Kit consisting of 1 pocket clip for shirt or trouser pocket, 1 fastening eyelet for lanyard/chain/cord as well as 2 covers for closing one or both rear wrist strap attachments if required. Fastening with spring bars (supplied with the enclosures).

Supply
1 set

B9100043

Without quick-action lock.

Supply
1 hand strap
