Datec-Compact

Compact handheld plastic enclosures

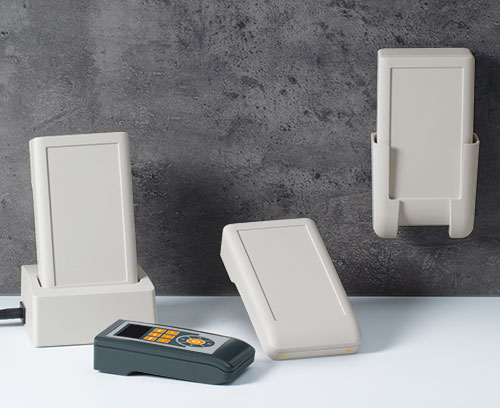

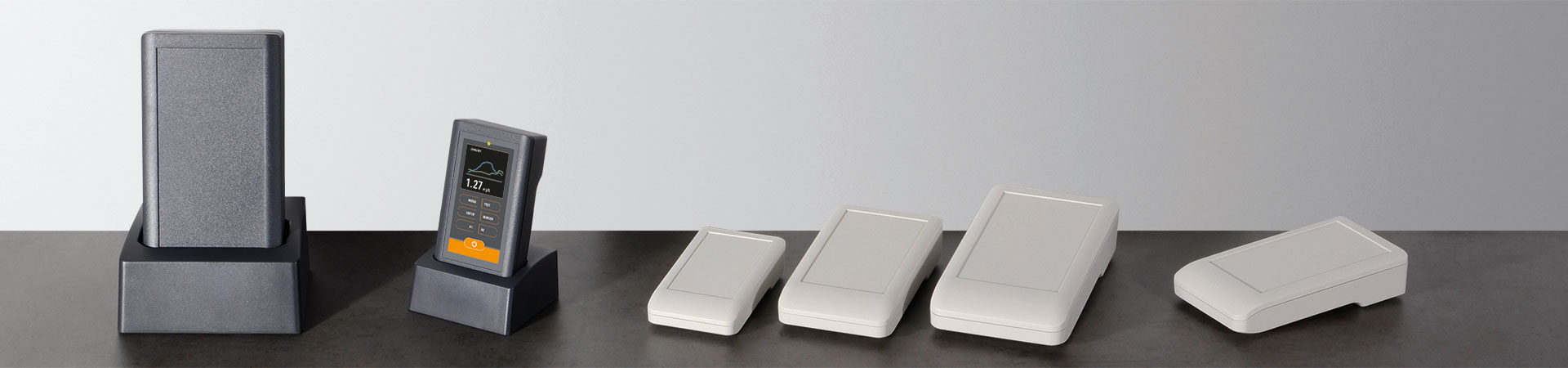

The new DATEC-COMPACT series of handheld enclosures has a compact and robust design, ideally suited for mobile devices.

  • robust, high-quality material ASA+PC-FR for outdoor use

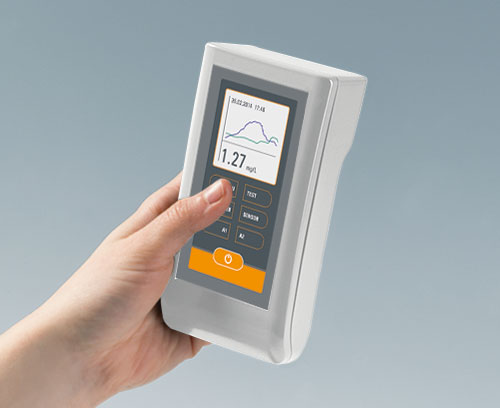

  • high protection class IP 65 with sealing for tough environment
    or protection class IP 41 without sealing as low-priced enclosures for measuring instruments

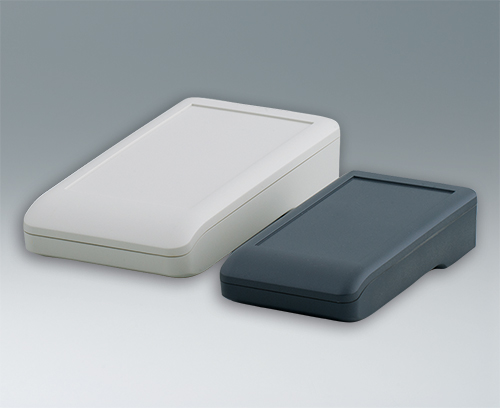

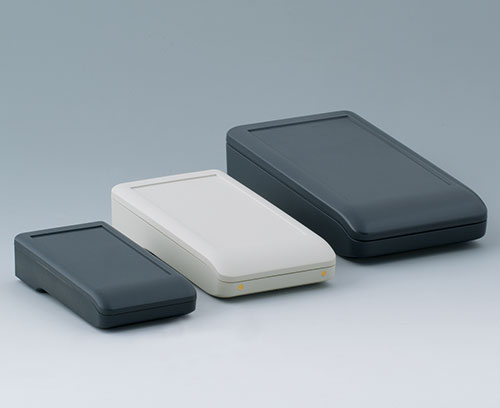

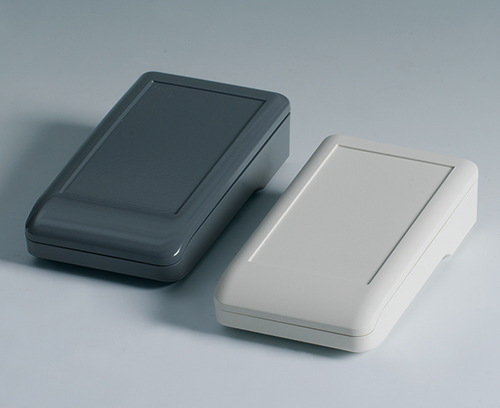

  • 3 sizes, 2 colours

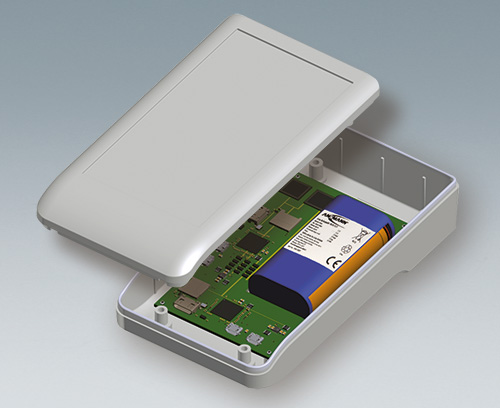

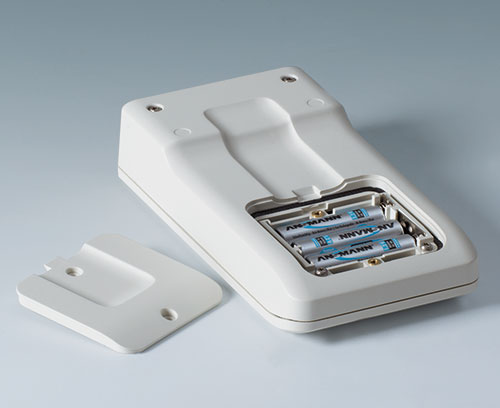

  • with / without battery compartment for 1.5 V AAA or AA batteries;
    three battery cells guarantee reliable 3V power supply
  • SD cards/USB connectors can be inserted within the sealed compartment (versions with battery compartment)

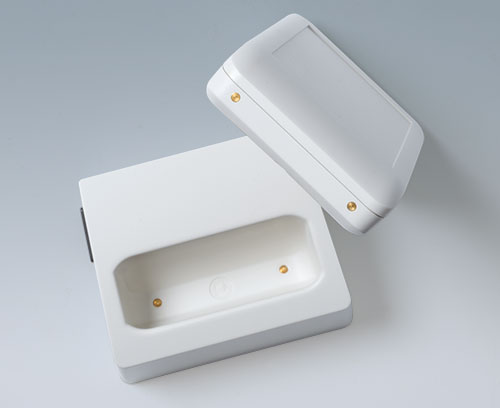

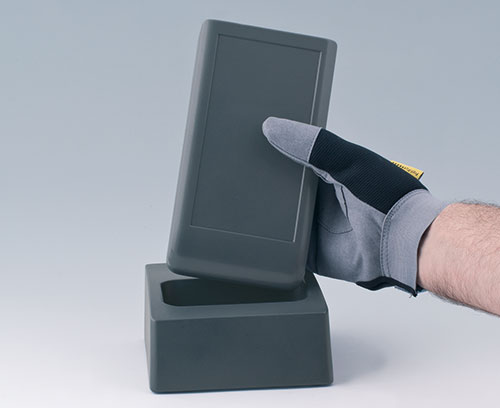

  • station for easy data and charging current transmission available as accessories

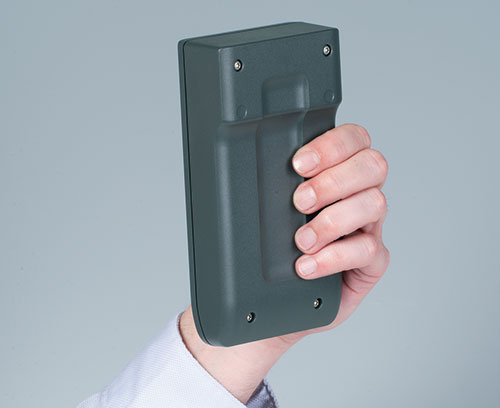

  • screw connection with stainless steel screws and Torx drive
  • further accessories: set of battery clips and gold-plated contacts
  • Video

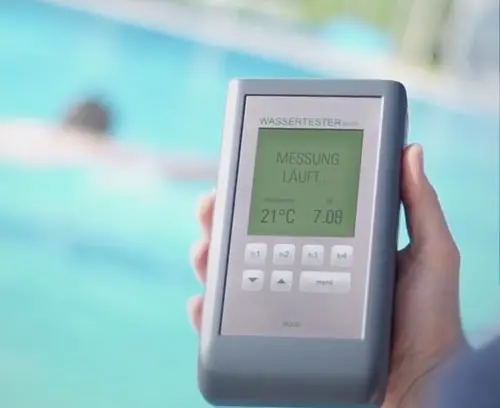

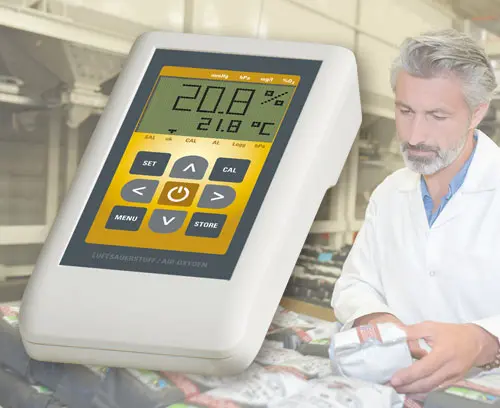

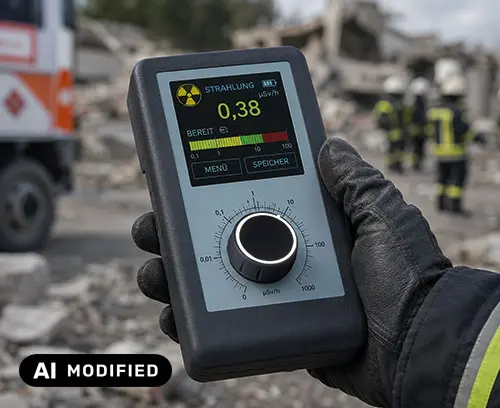

  • Application Examples

Application fields

  • Mobile data recording
  • Measuring and control technology
  • Control technology
  • Medical and laboratory technology
  • Environmental technology
  • Outdoor
  • Smart Factory
  • Industry 4.0
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your list
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your list
AltText

A9105507

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9105507

Station S
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9105508

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9105508

Station S
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9105627

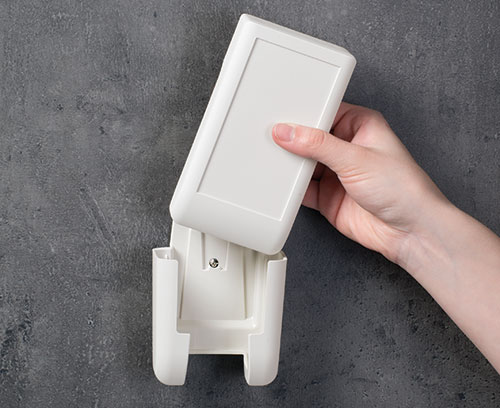

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9105627

Holder S
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9105628

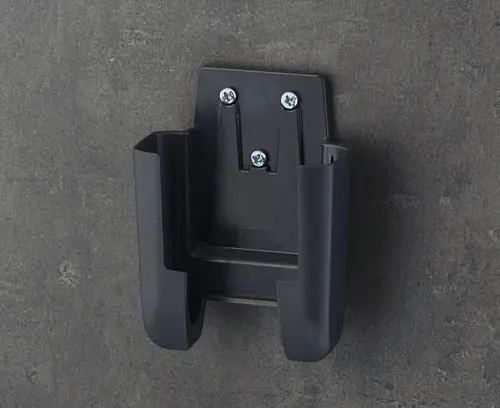

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9105628

Holder S
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9106507

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9106507

Station M
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9106508

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9106508

Station M
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9106627

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9106627

Holder M
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9106628

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9106628

Holder M
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9107507

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9107507

Station L
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9107508

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9107508

Station L
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9107627

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9107627

Holder L
product added to your list
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

A9107628

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9107628

Holder L
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

A9190023

Set of battery clips, 3 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190023

Set of battery clips, 3 x AA
product added to your list
Steel
nickel-plated
AltText

A9190024

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Close

A9190024

Set of battery clips, 3 x AAA
product added to your list
Steel
nickel-plated
AltText

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin
product added to your list
gold-plated
AltText

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193031

Spring contact
product added to your list
gold-plated
AltText

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent

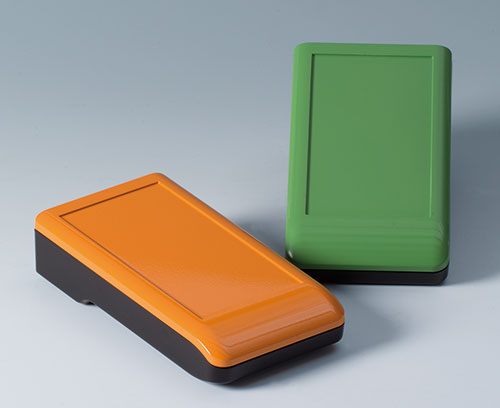

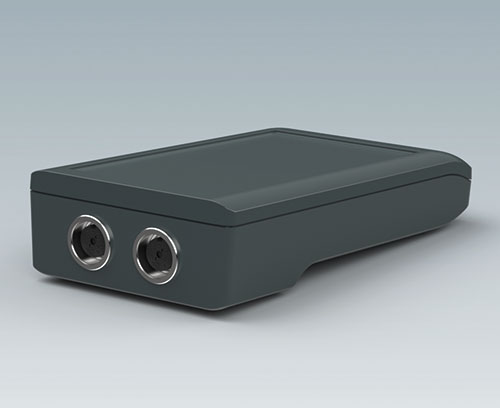

Customising options for Datec-Compact

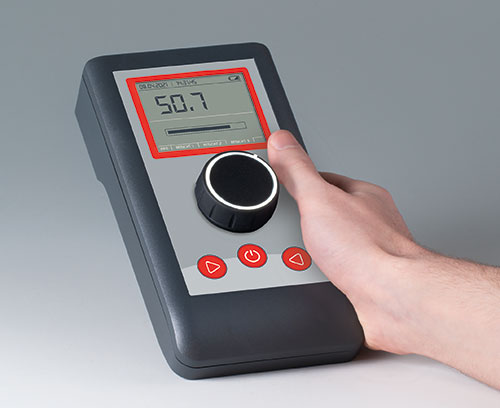

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
