EASYTEC

Easytec

Flanged enclosure for modern sensor applications

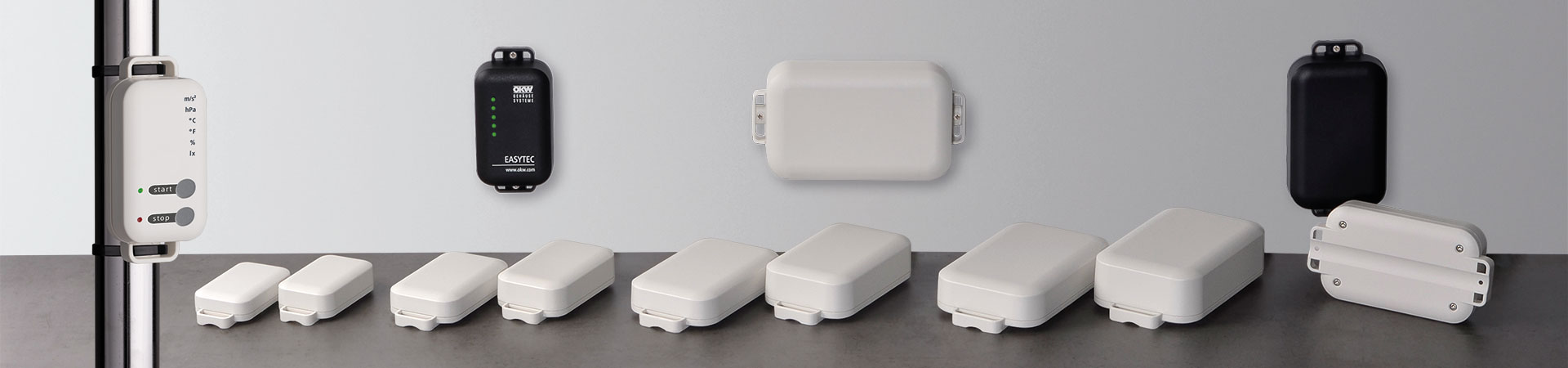

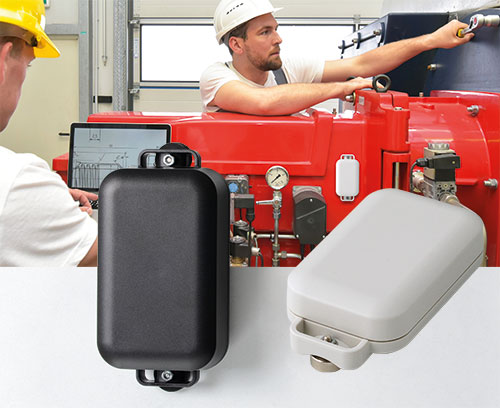

The new EASYTEC range of wall-mounted enclosures has been optimally designed for the integration of smart sensors for the IIoT (Industrial Internet of Things) and the IoT.

  • modern enclosure design with a high degree of stability

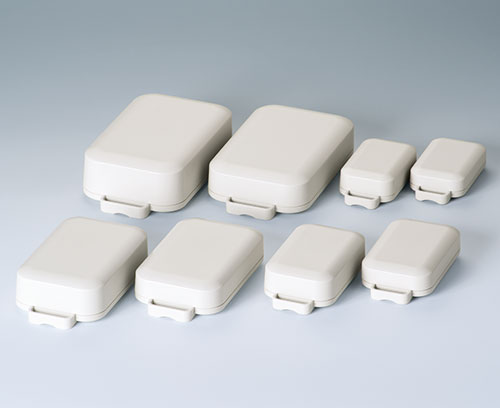

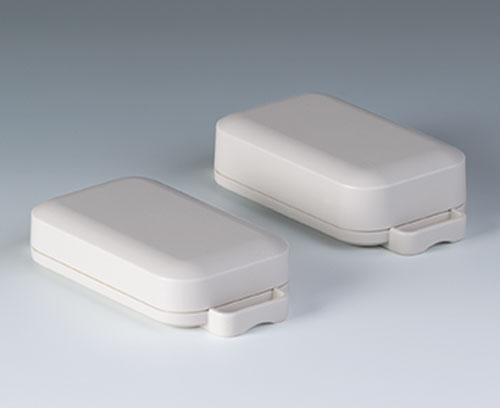

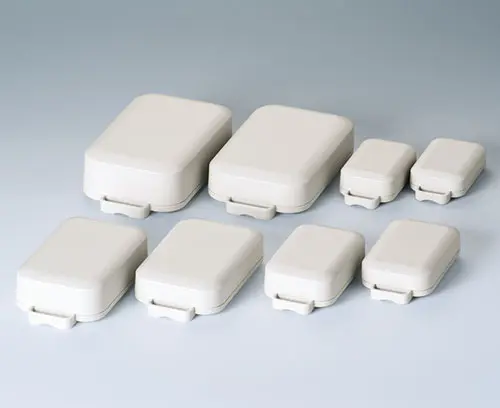

  • two sizes 80/100, each in 2 heights

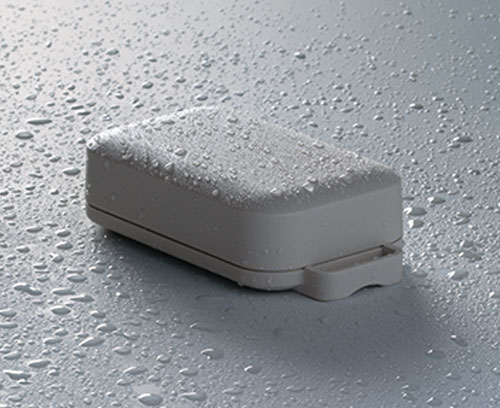

  • flame-retardant material ASA+PC and optional protection class IP 65 (seals as accessory) for robust indoor and outdoor applications

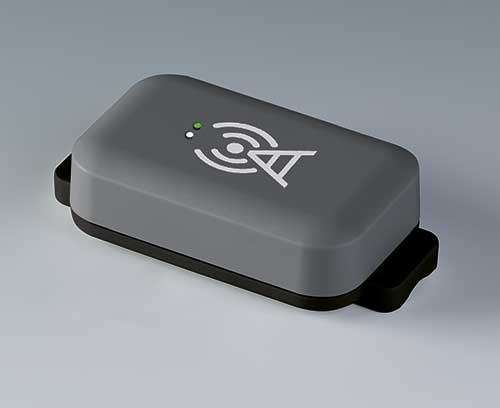

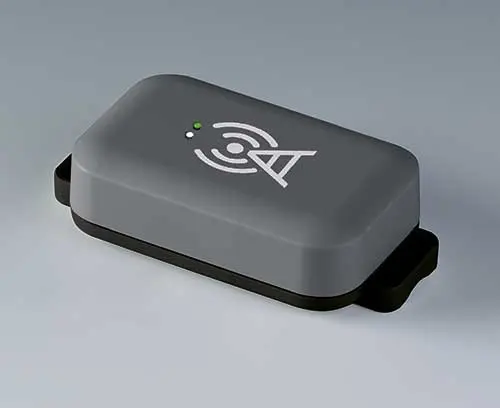

  • discreet standard off-white colour (RAL 9002) supports the wide range of applications – on request we can also produce the enclosures in other colours

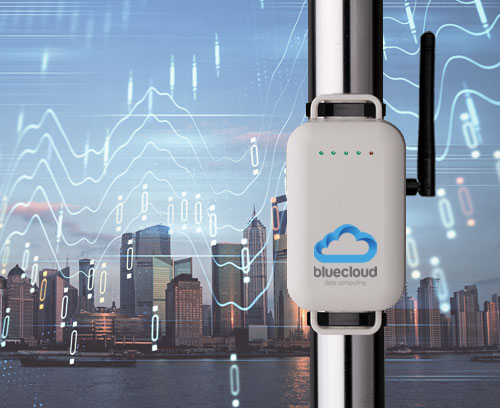

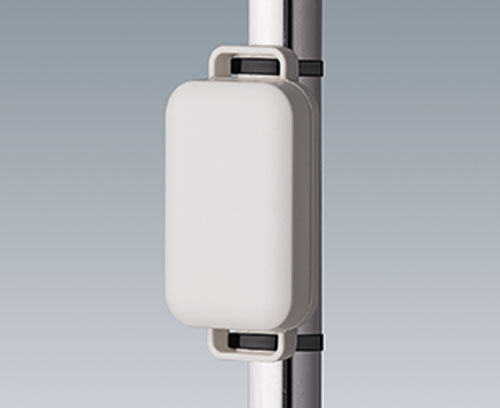

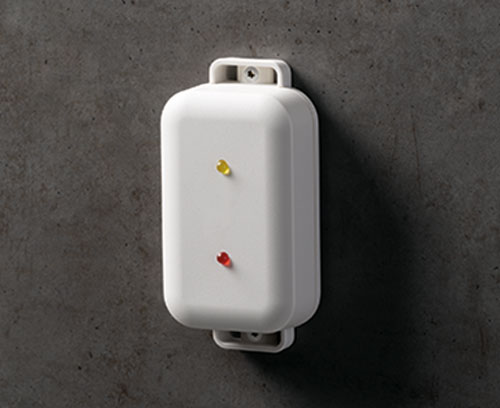

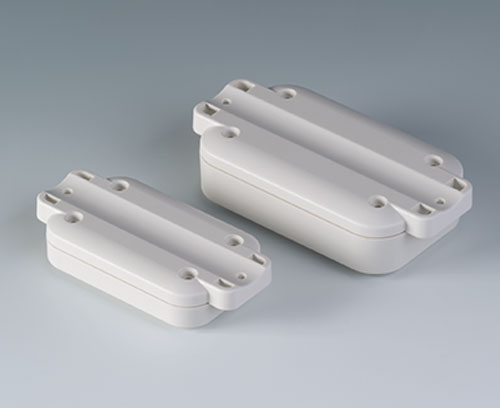

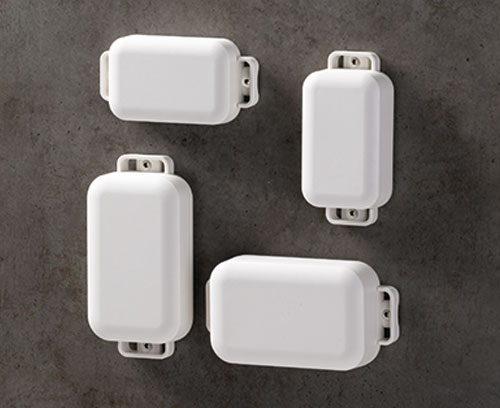

  • the bottom part has 2 lugs for quick wall mounting or for installation on pipes/round profiles
  • tight electronics compartment with two PCB levels (in the top/bottom parts)
  • screw connection with stainless steel screws and Torx drive
  • Video

Application fields

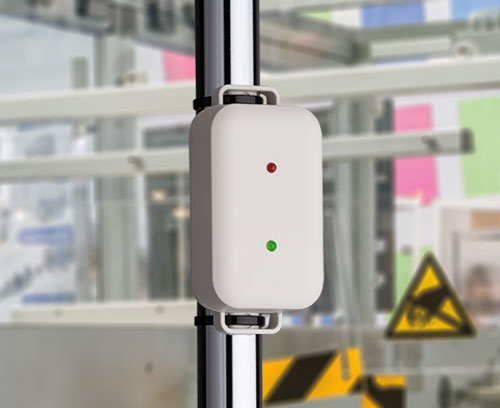

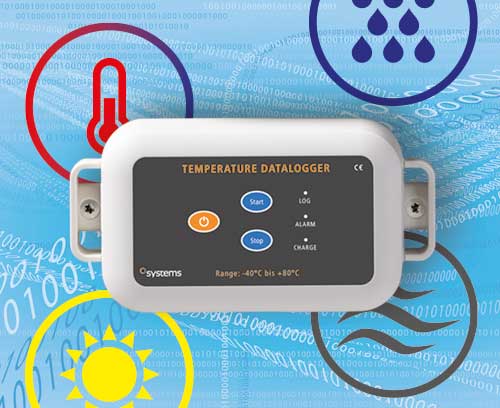

  • IoT/IIoT

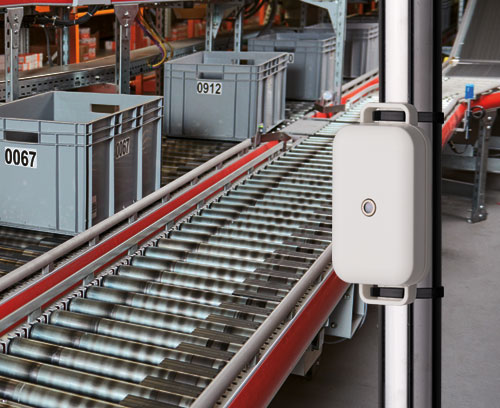

  • Sensor system
  • Environmental technology
  • Measurement and control engineering
  • Control technology
  • Medical and laboratory technology
  • Security and monitoring technology
  • Information Technology
  • Browse Full List
  • Accessories
  • View Customising Options
C3204107 EASYTEC 80

C3204107

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Close

C3204107

EASYTEC 80
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
101x50x22mm
IP 65 opt., IP 40
C3204207 EASYTEC 80

C3204207

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Close

C3204207

EASYTEC 80
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
101x50x26mm
IP 65 opt., IP 40
C3206107 EASYTEC 100

C3206107

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Close

C3206107

EASYTEC 100
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
121x62x26mm
IP 65 opt., IP 40
C3206207 EASYTEC 100

C3206207

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated lugs for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Close

C3206207

EASYTEC 100
product added to your list
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
121x62x31mm
IP 65 opt., IP 40
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list
A0325060 Self-tapping screw 3 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening PCBs, boards and components as well as for assembling case.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your list
A9500030 Sealing 80

A9500030

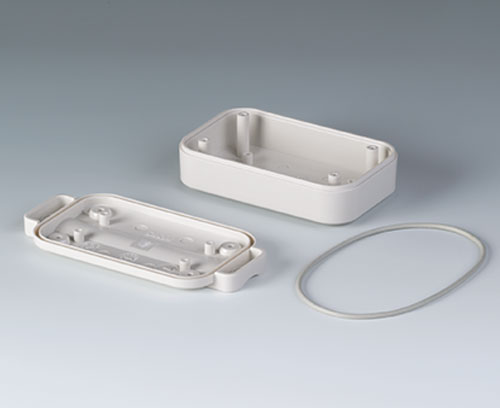

Sealing 80 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9500030

Sealing 80
product added to your list
A9502030 Sealing 100

A9502030

Sealing 100 For increasing the protection class to IP 65. Bottom part with groove accepts the seal.

Supply 1 seal

Close

A9502030

Sealing 100
product added to your list

Customising options for Easytec

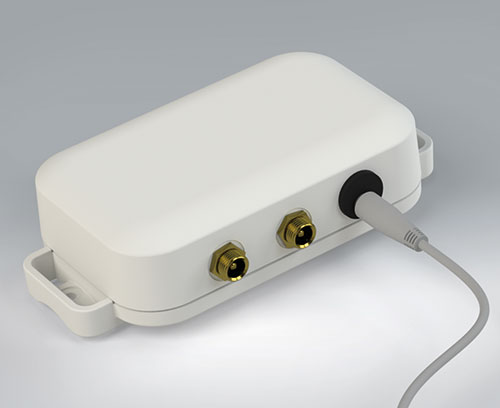

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
