Enclosure holding devices for rails and tubes
Holding device with flexible neck and suction pad, e.g. for Smart-CaseAdapter for holding device with 4-claws-systemHolding clamp for round tubesHolding clamp for equipment rails DIN EN ISO 19054Fastening element for DIN rails Enclosure holding devices for rails and tubes
Holding device with flexible neck and suction pad, e.g. for Smart-Case
Adapter for holding device with 4-claws-system

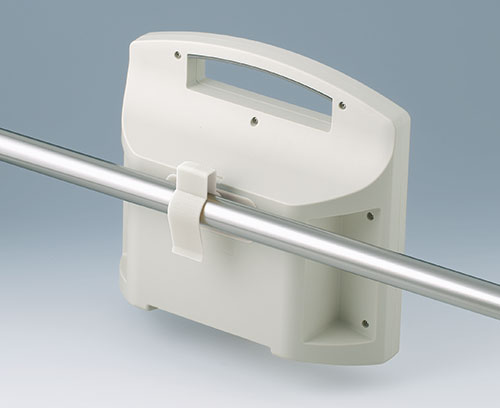

Holding clamp for round tubes

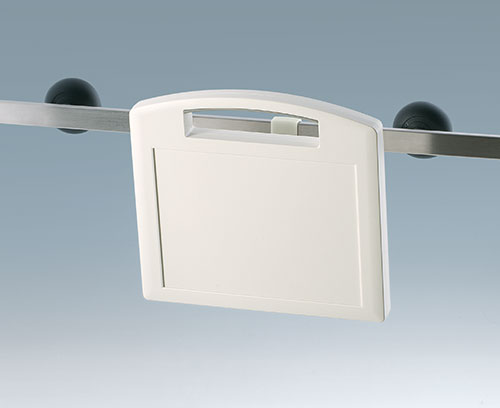

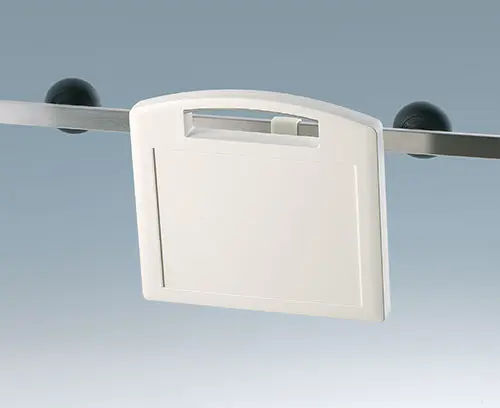

Holding clamp for equipment rails DIN EN ISO 19054

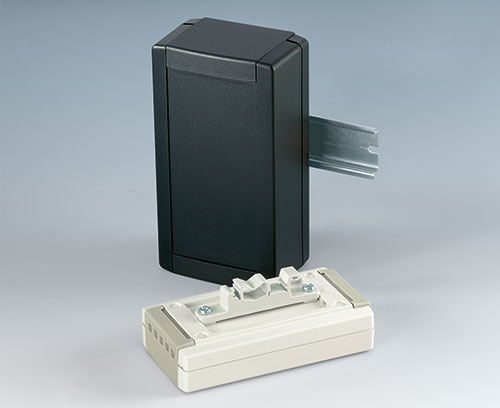

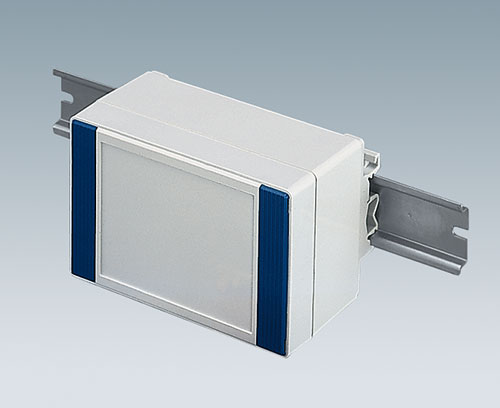

Fastening element for DIN rails
Enclosure holding devices for rails and tubes

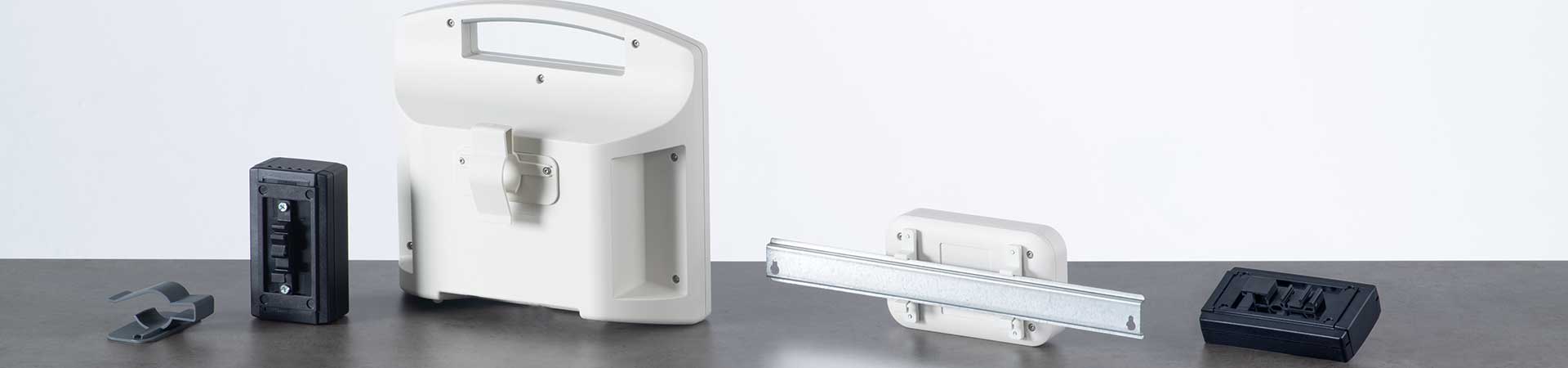

Holding devices

  • Universal enclosure holding devices with ball joint, for bicycle handle bars etc., or with flexible neck and suction pad for mounting behind vehicle windscreens and on smooth surfaces etc.
  • Fastening element for DIN rails in accordance with DIN EN 60715 TH35 and G32.
  • Holding clamp for round tubes up to ø 32 mm / equipment rails DIN EN ISO 19054.


  • Browse Full List
  • Catalogue Documents
NEW PRODUCT
View

A9220029  Add to my list
Holding device, ball joint

ABS (UL 94 HB)
black
30x54x75mm

A9220039  Add to my list
Holding device, bicycle

PC
black
38x57x42mm

A9220049  Add to my list
Holding device, flexible swan neck with suction pad

black
190x70x70mm

A9220059  Add to my list
Holding device, secured with suction pad

black
133x70x70mm

A9220079  Add to my list
Gripper without holding element

black
120x97x67mm

B1300017  Add to my list
Fastening element for DIN-Rails

PA 6
off-white RAL 9002

B1300019  Add to my list
Fastening element for DIN-Rails

PA 6
black RAL 9005

B4308237  Add to my list
Holding clamps

PA 6
off-white RAL 9002

B4308238  Add to my list
Holding clamps

PA 6
lava

B6811751  Add to my list
DIN rail adapter

PA 66 (UL 94 V-0)
black RAL 9005

Accessory to complete

A9220019  Add to my list
Adapter for holding device (4-claws system)

ABS (UL 94 HB)
black
57x42x6mm

A9220049

The device can be rotated by 360° and can be adjusted horizontally and vertically with an inclination angle of 40° in the viewing angle. With especially sturdy 8 mm aluminium wire – guarantees significantly reduced vibration characteristics and allows higher weight-carrying capacity. The diameter of the suction disk is 70 mm. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply
1 holding device

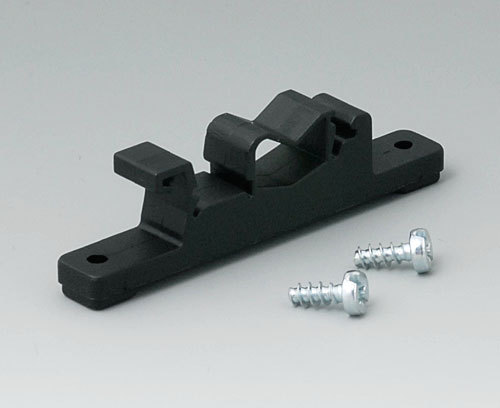

B1300019

Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply
1 piece incl, assembly kit

A9220039

For screw mounting on the bar with ø 20 to 25 mm. With two rubber shims for correct mounting on the bar or handlebars. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply
1 holding device, 2 rubber shims, 1 allen key

A9220019

For attaching the enclosures to holding devices (A9220029, A9220039, A9220049 and A9220059). For all applications, with self-adhesive film on the rear. With 4-hole grid pattern to match the grid plates of the holding devices with the 4-claws system (separate article).

Supply
1 adapter with self-adhesive film

A9220079

Suitable for all devices with a width of 85 to 170 mm and a height of 60 to 100 mm. With adjustable bridges, including additional extension bridges and spacer cushion. The integrated foam rubber mounting prevents scratches on the enclosure and eliminates rattling noises. With 4-hole grid system to match the grid plates of the holding devices with the 4-claws system (separate article required).

Supply
1 gripper, various spacer cushions

B1300017

Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply
1 piece incl, assembly kit

A9220059

Grid plate with rear-mounted grid arm and integrated suction disk with 70 mm diameter. Secure mounting on all smooth surfaces. Integrated spring mechanism and novel vacuum return path guarantee that the suction disk is absolutely flat before mounting. The position can be fixed using locking screws. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply
1 holding device

B4308237

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply
1 holding clamp, assembly kit

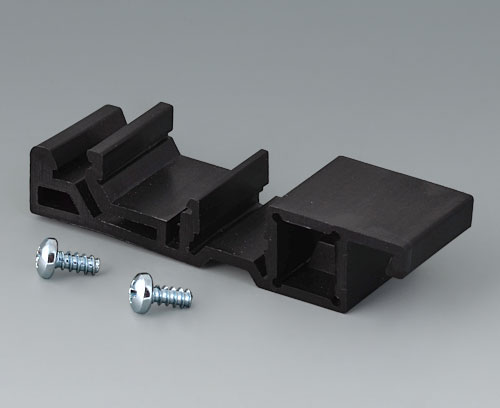

B6811751

Universal wall suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 und G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.

Supply
1 piece, 2 screws

B4308238

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply
1 holding clamp, assembly kit

A9220029

For self-adhesive mounting or screw mounting. The base can be moved horizontally backwards and forwards by 45° and can be rotated around its own axis. The optimum setting can be fixed with the integrated locking screw. Adapter for holding device (4-claws system) required as a separate article for securing the device.

Supply
1 holding device, mounting material
