Net-Box

Wall mount enclosures for control units

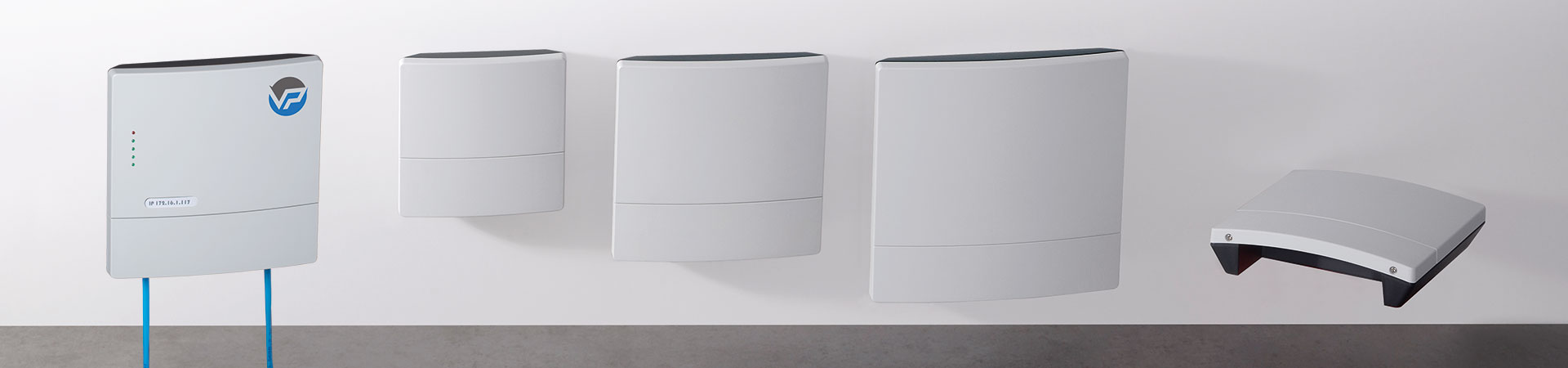

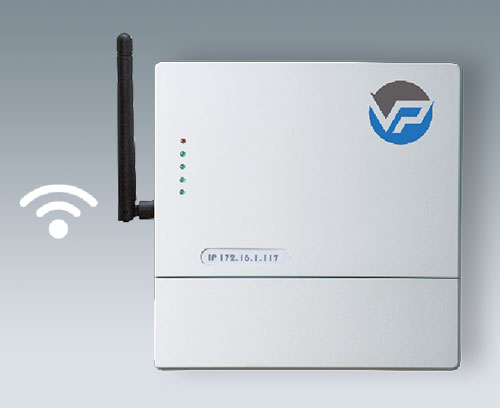

NET-BOX plastic enclosures have a slim design and stylish curved top section, this makes these modern and elegant housings perfect for wall mounted control units, network nodes and much more.

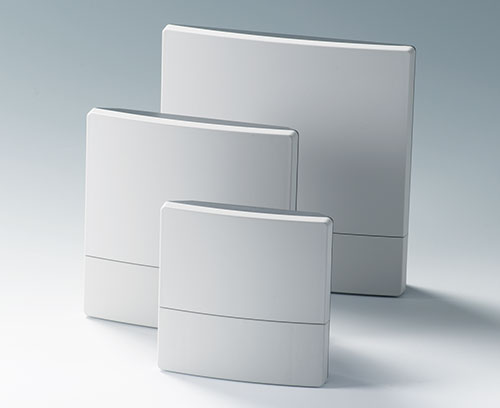

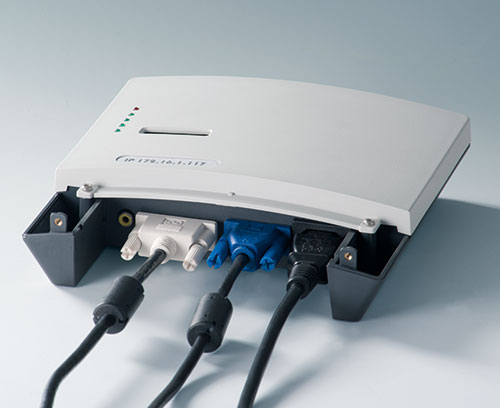

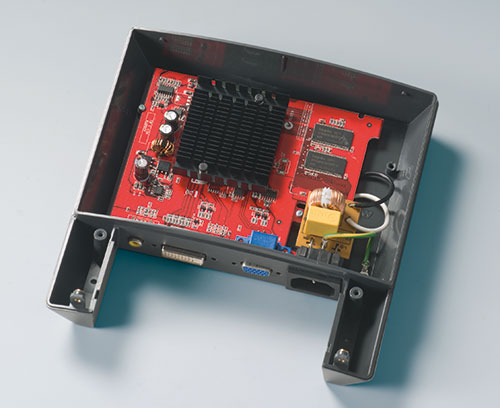

  • three sizes with plenty of room for electronics and interfaces

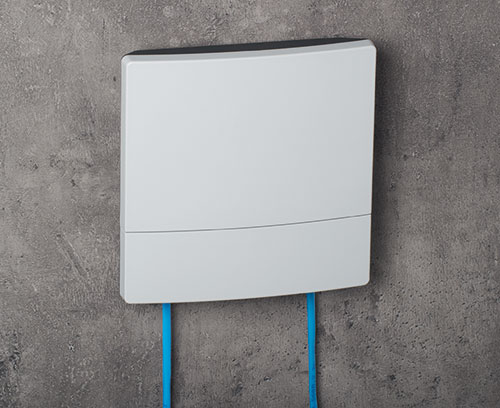

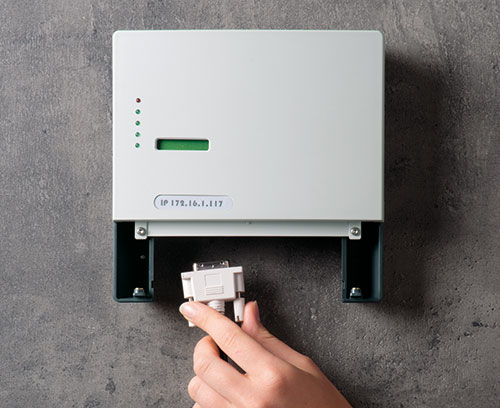

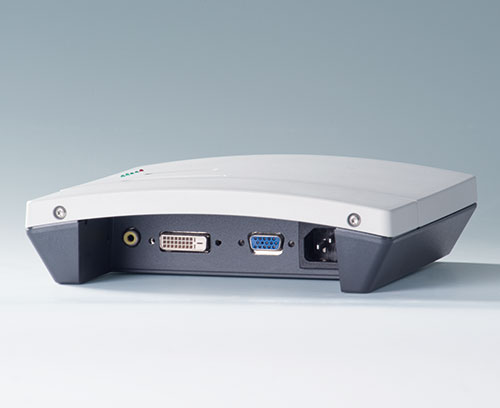

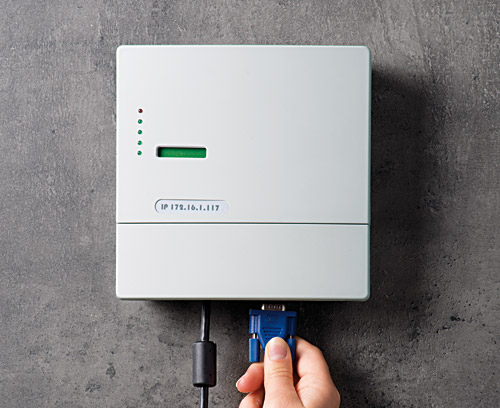

  • the connectors and cables are hidden under the front lid

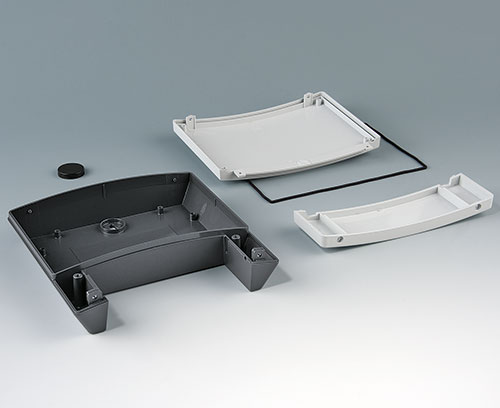

  • the cases are moulded in flame retardant material and can be sealed to IP 65

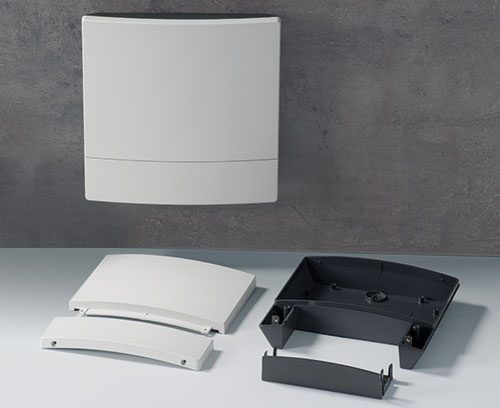

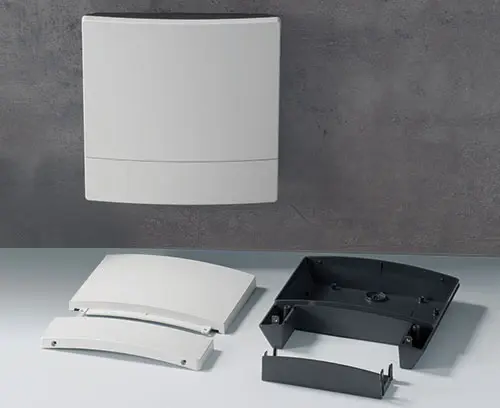

  • simple three part assembly - bottom part, front cover and front lid; there are no visible screws on the front, just two on the underside of the lid
  • screw pillars are provided in the bottom part for mounting PCBs and assemblies

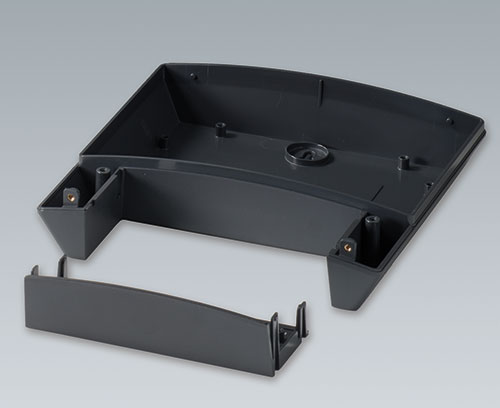

  • optional infill covers close the underside opening and can be used for fitting additional PCBs or assemblies
  • three point wall mounting system - no need to open the main electronics section, only the front lid has be refitted after installation (version II already has openings in the bottom part)
  • supplied with anti-tamper Torx T10 assembly screws
  • NET-BOX cases can also be used as desktop units, accessory non-slip feet are available
  • Video
  • Application Examples

Application fields

  • Building management
  • Central control units
  • IoT/IIoT
  • Smart Factory
  • Industry 4.0

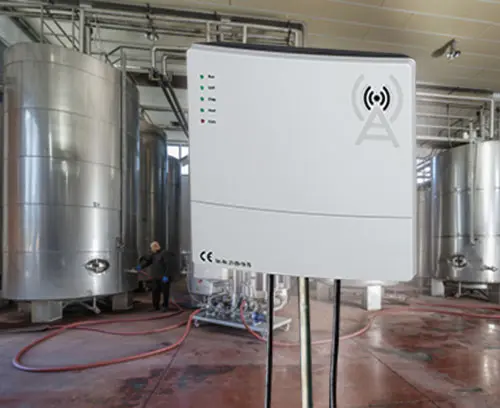

  • Gateways
  • Data acquisition systems
  • Data systems engineering
  • Measuring and control technology
  • Supervision terminals and access control
  • Medical and wellness technology
  • Browse Full List
  • Accessories
  • View Customising Options
AltText

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214101

NET-BOX 140, Vers. I
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46.5mm
IP 65 opt., IP 40
AltText

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214201

NET-BOX 140, Vers. II
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46.5mm
IP 65 opt.
AltText

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3218101

NET-BOX 180, Vers. I
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48.5mm
IP 65 opt., IP 40
AltText

B3218201

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3218201

NET-BOX 180, Vers. II
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48.5mm
IP 65 opt.
AltText

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222101

NET-BOX 220, Vers. I
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt., IP 40
AltText

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222201

NET-BOX 220, Vers. II
product added to your list
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt.
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your list
AltText

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent
AltText

B3314159

Sealing kit 140 Application: for increasing the protection class, of NET-BOX140.

Supply 1 sealing kit

Close

B3314159

Sealing kit 140
product added to your list
Silicone
black
AltText

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3314918

Infill cover 140
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

Close

B3318159

Sealing kit 180
product added to your list
Silicone
black
AltText

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3318918

Infill cover 180
product added to your list
ASA+PC (UL 94 V-0)
lava
AltText

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

Close

B3322159

Sealing kit 220
product added to your list
Silicone
black
AltText

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3322918

Infill cover 220
product added to your list
ASA+PC (UL 94 V-0)
lava

Customising options for Net-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
