Style-Case

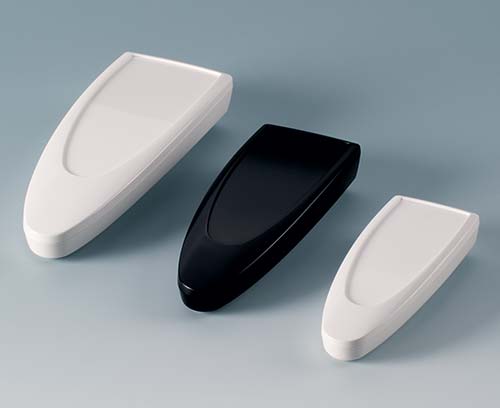

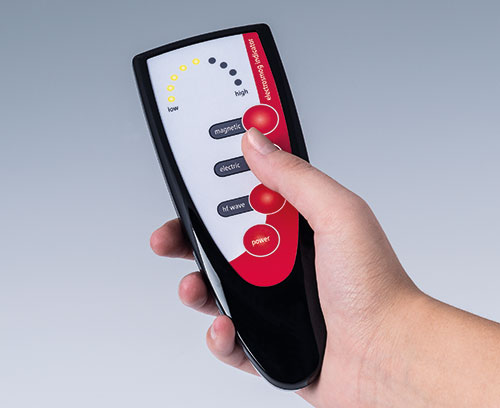

Beautiful, highly polished and ergonomic handheld enclosures

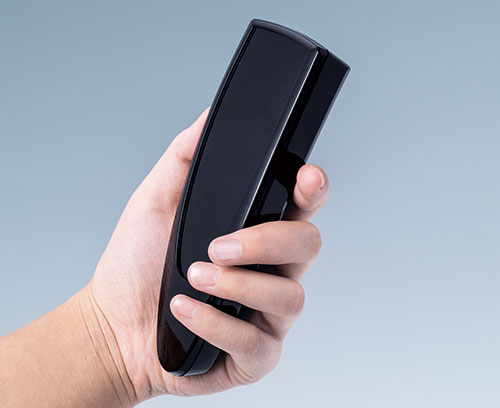

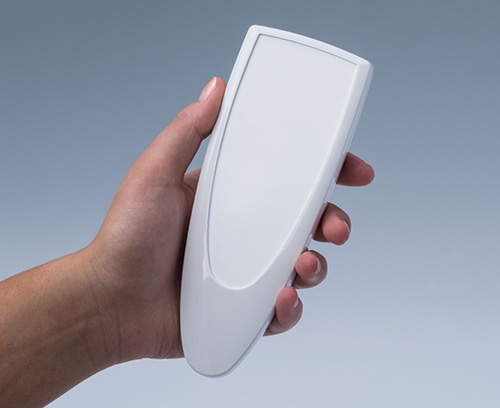

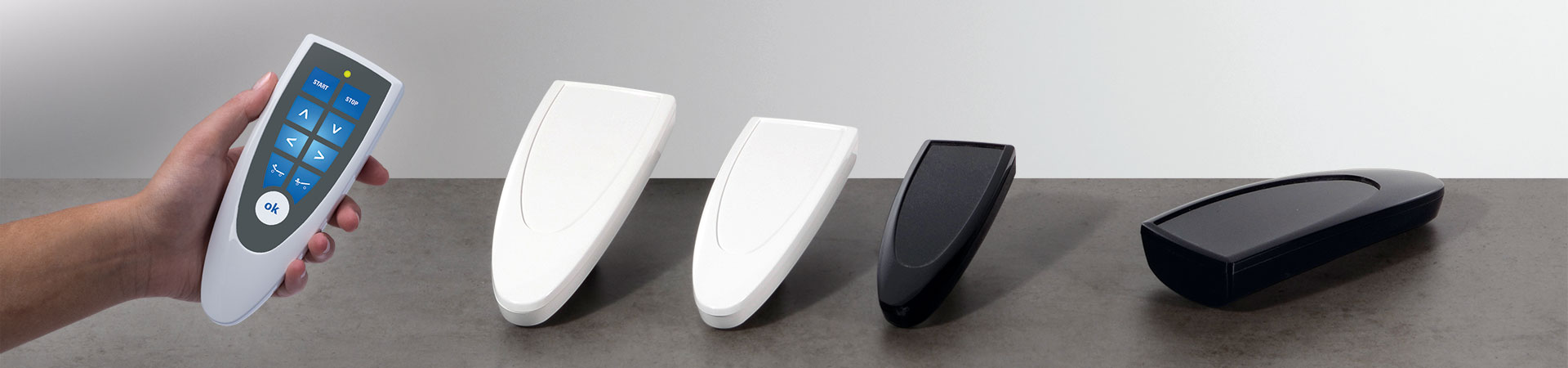

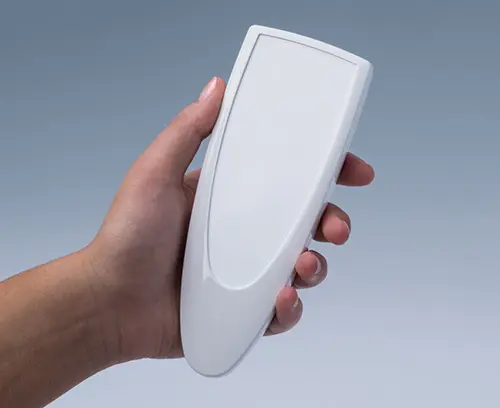

OKW presents the STYLE-CASE which has a high gloss surface finish, thus creating another design highlight for modern handheld control units. These elegant eye-catching plastic enclosures fit snugly in the hand and are easy and reliable to operate. The highly polished surface has a very pleasant feel which imparts a high quality and modern user experience.

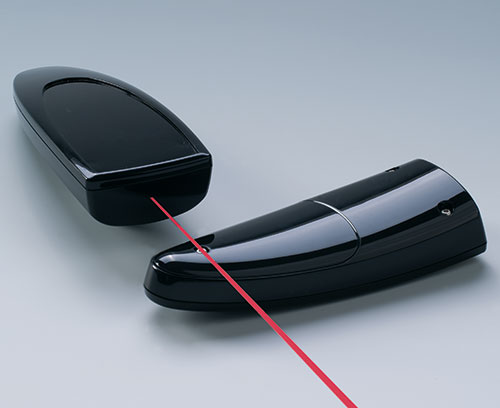

  • high-quality ASA with high UV protection or in PMMA material permeable to infra-red light (Plexiglas)
  • glossy surface is easy to clean

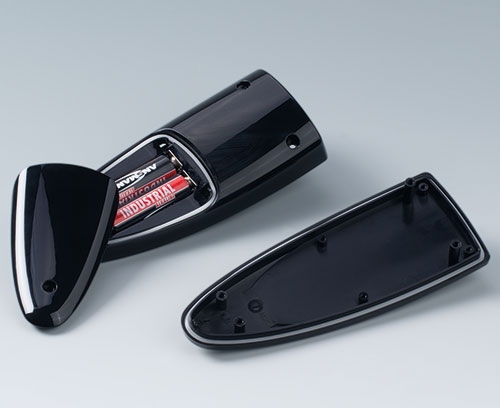

  • robust, offers protection up to IP 65, sealing kit available as accessory
  • assembled by Torx drive stainless steel screws

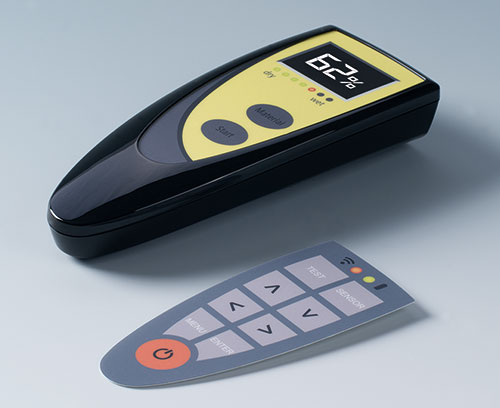

  • recessed operating panel for protecting the membrane keypad / product label

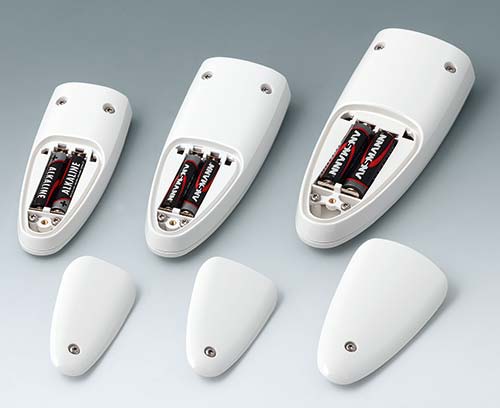

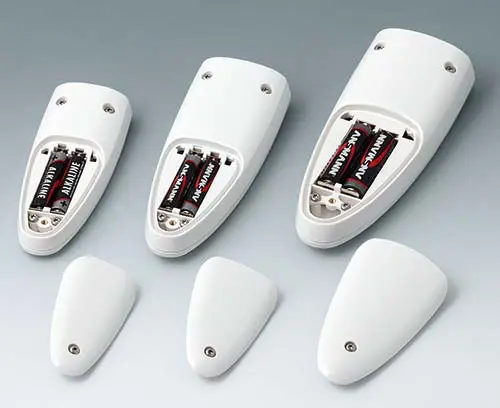

  • integrated battery compartment: 2 x 1.5 V AAA (S, M) and 2 x 1.5 V AA (L), set of battery clips supplied as accessories

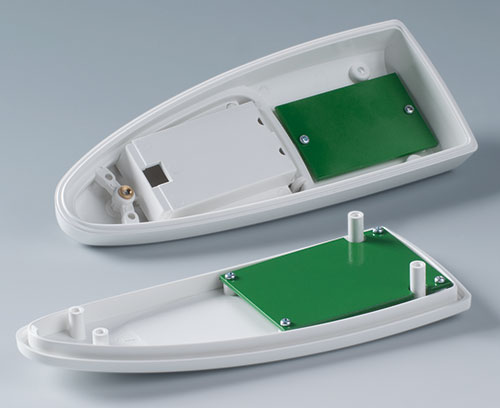

  • attachment pillars for PCBs and components, self-tapping screws for mounting the boards are available as accessories
  • Video
  • Application Examples

Application fields

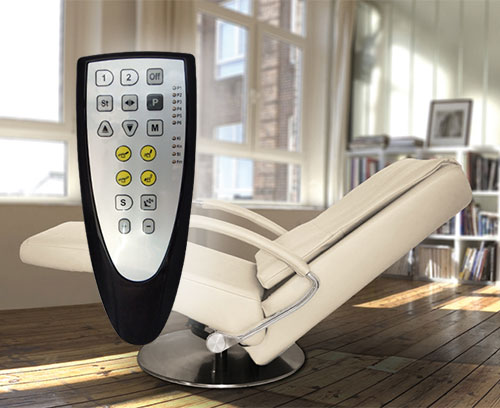

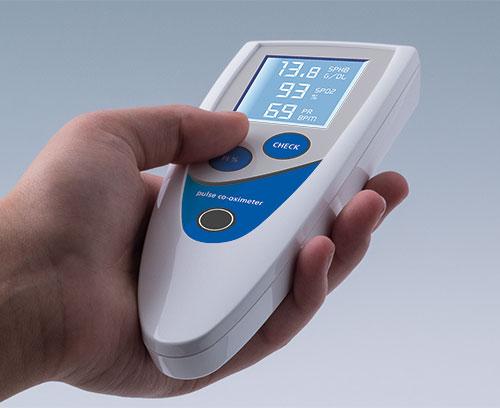

  • Ideal for design-oriented hand control units
  • Many different types of remote control systems
  • Specially made for the medical and social fields as well as in the household and in industry
  • Browse Full List
  • Accessories
  • View Customising Options
AltText

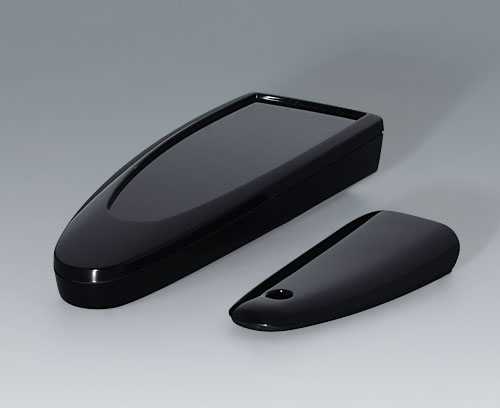

B2802016

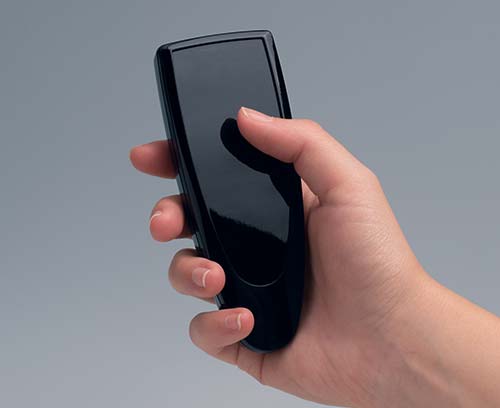

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2802016

STYLE-CASE S
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40
AltText

B2802017

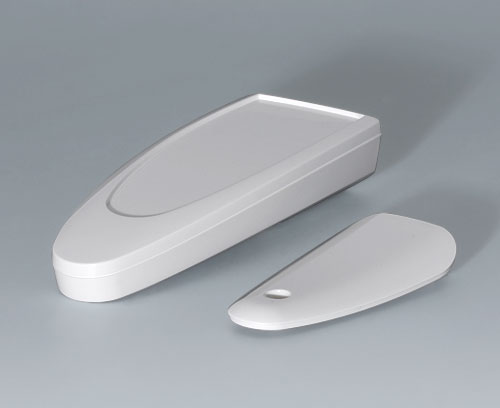

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2802017

STYLE-CASE S
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
123x48x24mm
IP 40
AltText

B2803016

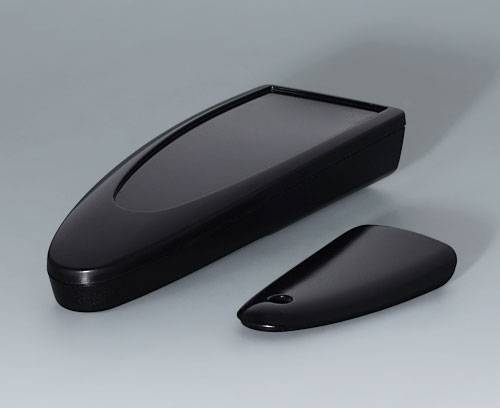

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2803016

STYLE-CASE M
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40
AltText

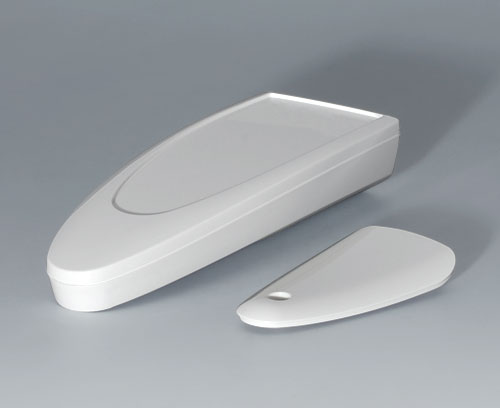

B2803017

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2803017

STYLE-CASE M
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
147x56x27mm
IP 65 opt., IP 40
AltText

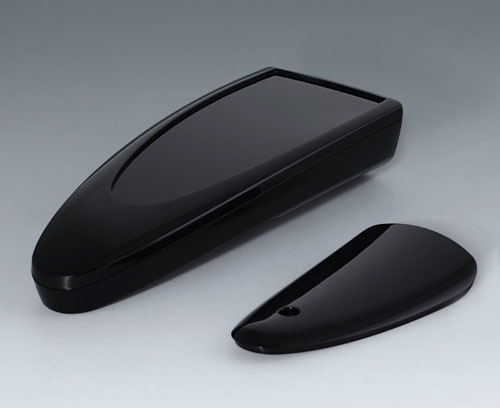

B2804016

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804016

STYLE-CASE L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
166x64x31mm
IP 65 opt., IP 40
AltText

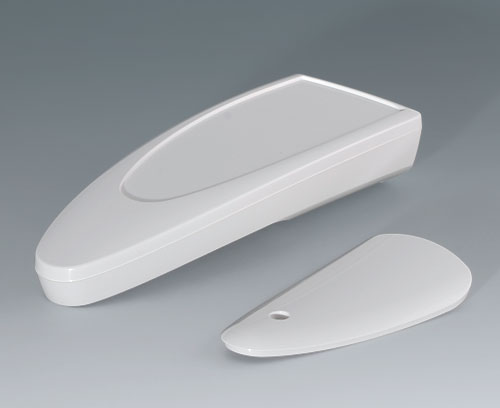

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804017

STYLE-CASE L
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
AltText

B2804027

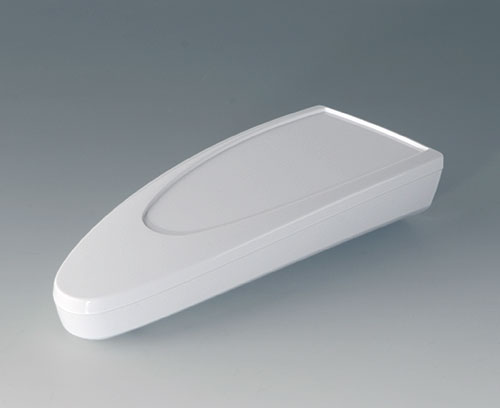

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

Close

B2804027

STYLE-CASE L
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
AltText

A0304031

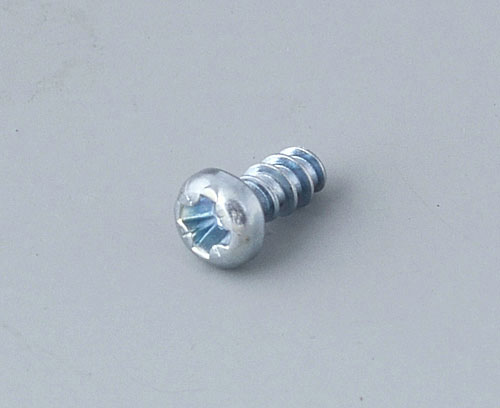

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
product added to your list
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your list
AltText

A9190020

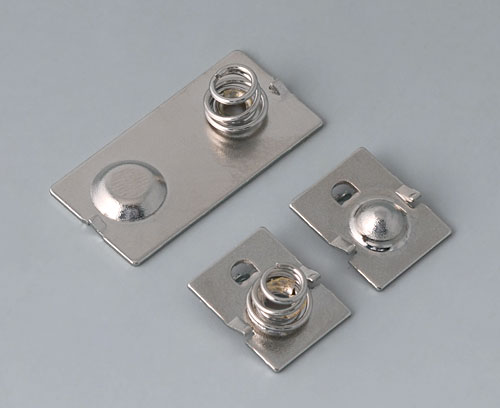

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Close

A9190020

Set of battery clips
product added to your list
Steel
nickel-plated
AltText

A9199005

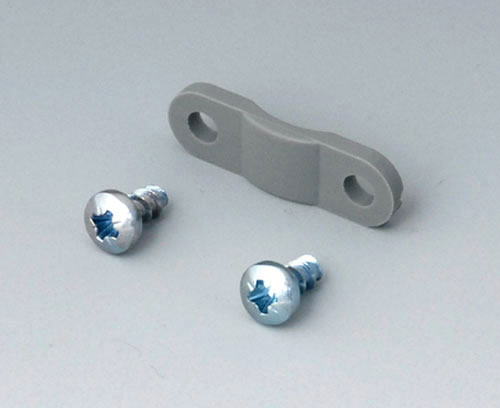

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Close

A9199005

Strain relief
product added to your list
PA 6
volcano
AltText

B2902031

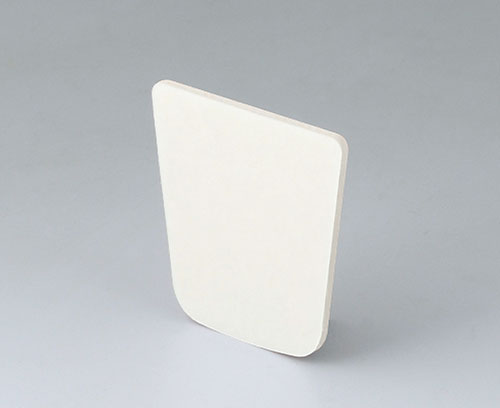

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2902031

Adhesive foil S
product added to your list
AltText

B2902037

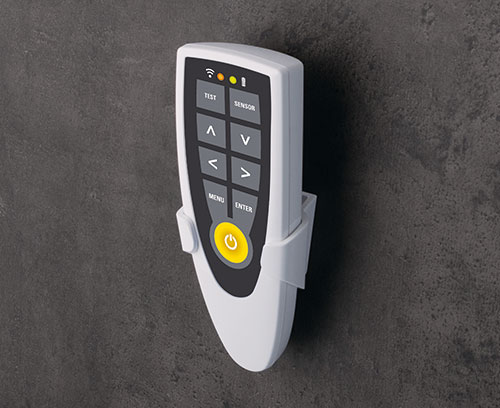

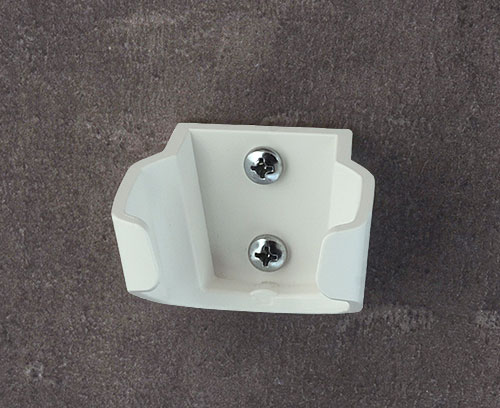

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2902037

Holder S
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B2902039

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2902039

Holder S
product added to your list
ASA (UL 94 HB)
black RAL 9005
AltText

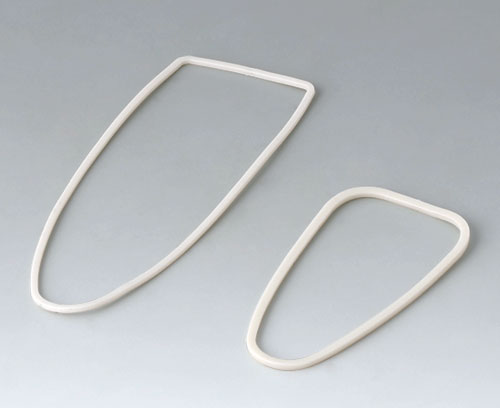

B2902111

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2902111

Sealing kit S
product added to your list
TPV 50A
AltText

B2903031

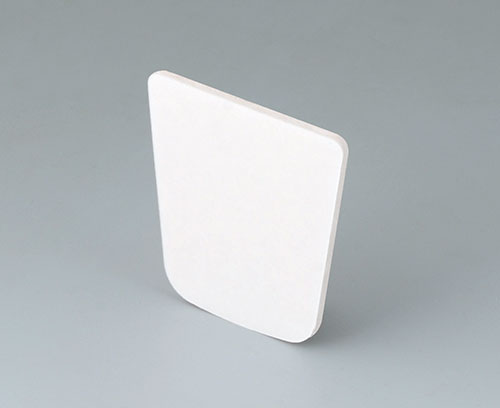

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2903031

Adhesive foil M
product added to your list
AltText

B2903037

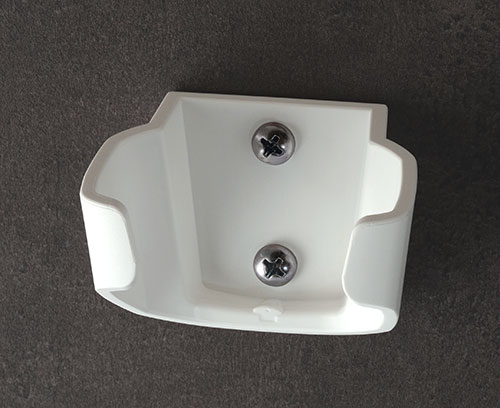

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2903037

Holder M
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B2903039

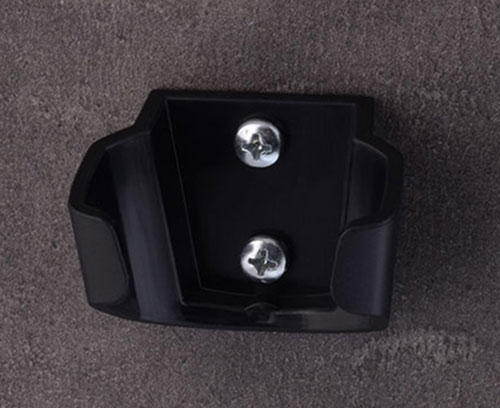

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2903039

Holder M
product added to your list
ASA (UL 94 HB)
black RAL 9005
AltText

B2903111

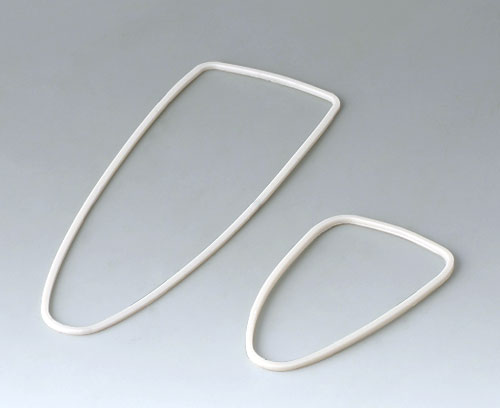

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2903111

Sealing kit M
product added to your list
TPV 50A
AltText

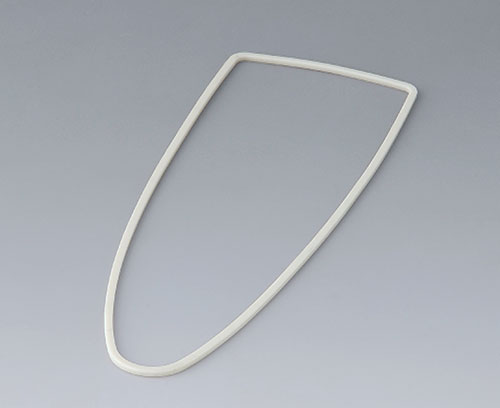

B2904011

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

Close

B2904011

Sealing L
product added to your list
TPV 50A
AltText

B2904031

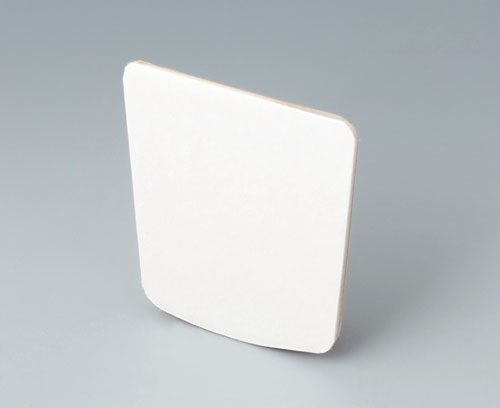

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2904031

Adhesive foil L
product added to your list
AltText

B2904037

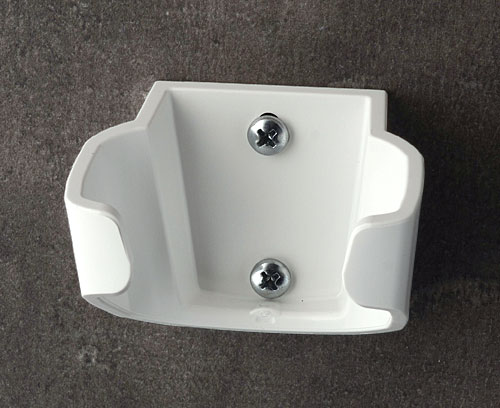

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2904037

Holder L
product added to your list
ASA (UL 94 HB)
traffic white RAL 9016
AltText

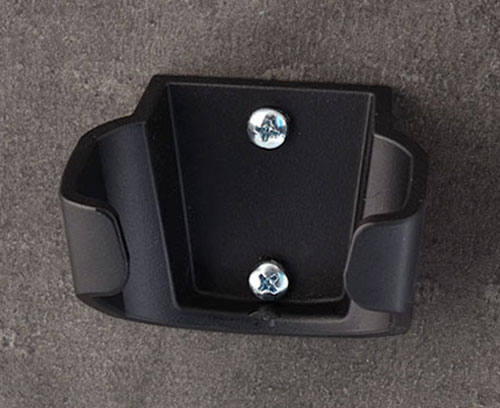

B2904039

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2904039

Holder L
product added to your list
ASA (UL 94 HB)
black RAL 9005
AltText

B2904111

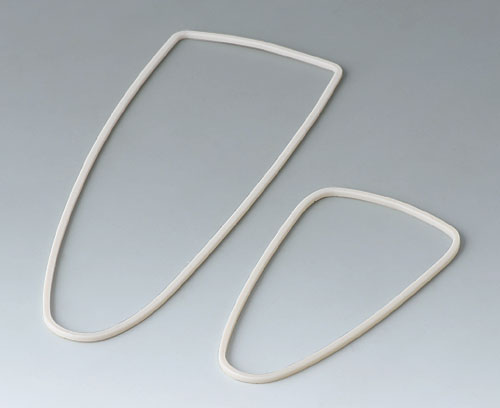

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2904111

Sealing kit L
product added to your list
TPV 50A
AltText

B2904210

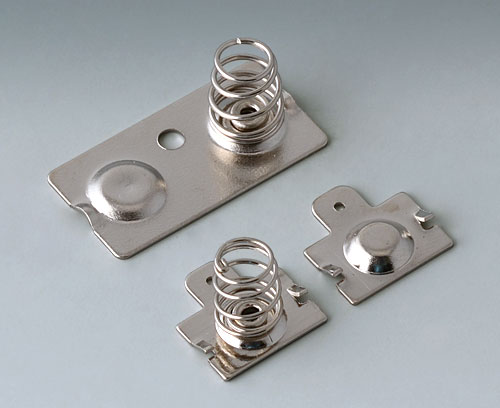

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Close

B2904210

Set of battery clips
product added to your list
Steel
nickel-plated
AltText

C2353849

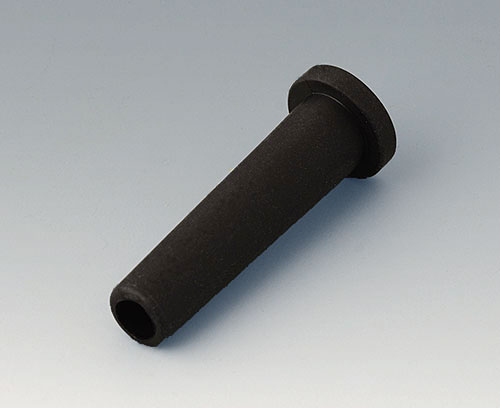

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Close

C2353849

Flexible cable grommet Ø 5,3
product added to your list
black

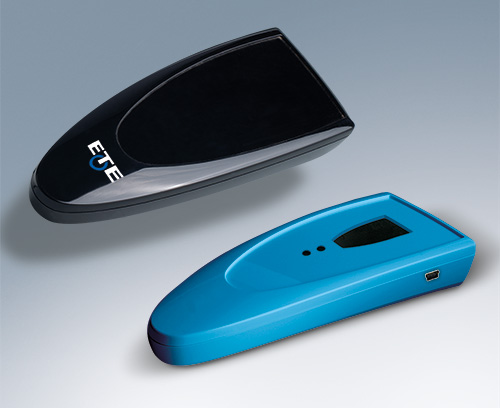

Customising options for Style-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
