B6502117

B6502117

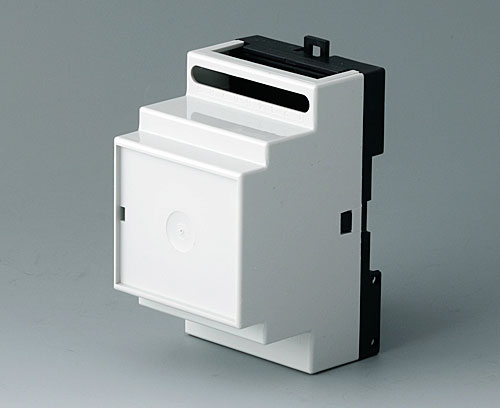

RAILTEC B, 3 modules, Vers. IV

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)

Supply

1 base part with locking clip, 1 top part

  • Components/Accessories
  • View Customising Options

Accessory "wall/holder"

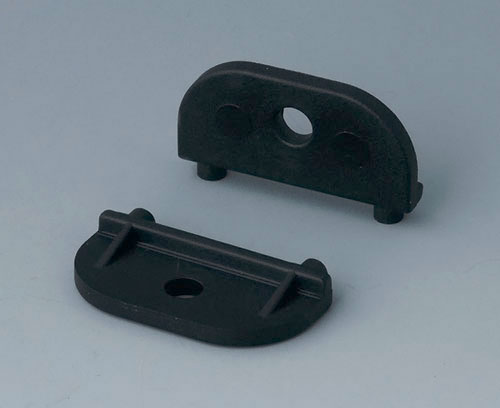

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Close

B6600334

Wall suspension elements
product added to your list
PPO (UL 94 V-0)
black

Accessory "terminals"

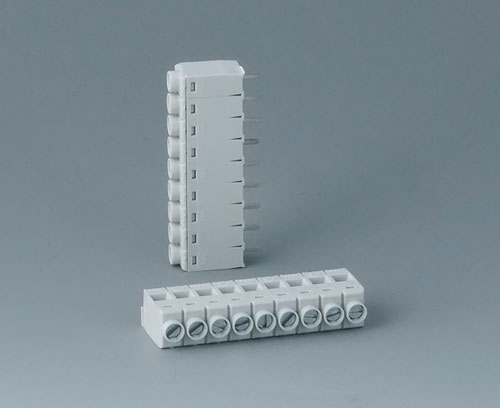

B6608111 Terminal block, block 5.0

B6608111

Terminal block, block 5.0 PCB terminal block, 5.0. 9-pin.

Supply 1 piece

Close

B6608111

Terminal block, block 5.0
product added to your list
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list

Accessory

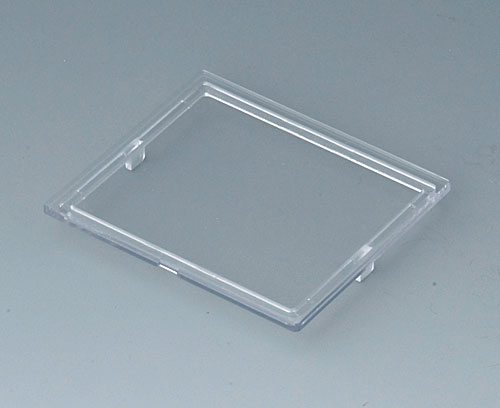

B6602100 Lid, 3 modules

B6602100

Lid, 3 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Close

B6602100

Lid, 3 modules
product added to your list
PC (UL 94 V-0)
transparent

Customising options for B6502117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Width
52.5 mm
Height
86 mm
Depth
58 mm
PCB length, base
82 mm
PCB width, base
46.7 mm
Poles
≤ 9
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
44 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
