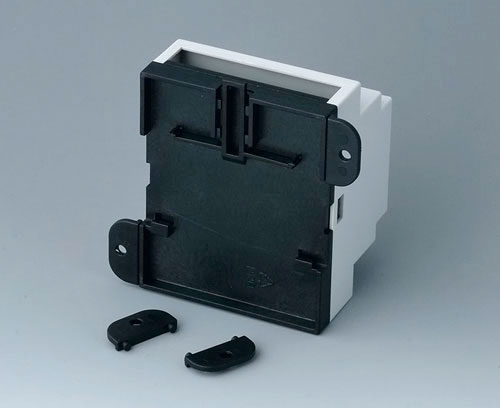

B6600334 Wall suspension elements

B6600334

Wall suspension elements

For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply

2 pieces as kit

  • To be used for
  • View Customising Options
B6501110 RAILTEC B, 2 modules, Vers. V

B6501110

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Close

B6501110

RAILTEC B, 2 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501111 RAILTEC B, 2 modules, Vers. I

B6501111

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6501111

RAILTEC B, 2 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501112 RAILTEC B, 2 modules, Vers. II

B6501112

RAILTEC B, 2 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6501112

RAILTEC B, 2 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501113 RAILTEC B, 2 modules, Vers. III

B6501113

RAILTEC B, 2 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6501113

RAILTEC B, 2 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501114 RAILTEC B, 2 modules, Vers. I

B6501114

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6501114

RAILTEC B, 2 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501115 RAILTEC B, 2 modules, Vers. II

B6501115

RAILTEC B, 2 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08.

Supply 1 base part with locking clip, 1 top part

Close

B6501115

RAILTEC B, 2 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501116 RAILTEC B, 2 modules, Vers. III

B6501116

RAILTEC B, 2 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6501116

RAILTEC B, 2 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501117 RAILTEC B, 2 modules, Vers. IV

B6501117

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6501117

RAILTEC B, 2 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501118 RAILTEC B, 2 modules, Vers. IV

B6501118

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6501118

RAILTEC B, 2 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501119 RAILTEC B, 2 modules, Vers. V

B6501119

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Close

B6501119

RAILTEC B, 2 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501121 RAILTEC B, 2 modules, Vers. VI

B6501121

RAILTEC B, 2 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6501121

RAILTEC B, 2 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x90x58mm
B6501223 RAILTEC B, 2 modules, Vers. III   low profile

B6501223

RAILTEC B, 2 modules, Vers. III low profile Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Closed case with a generous operating area for displays, operating elements and interfaces

Supply 1 base part with locking clip, 1 top part

Close

B6501223

RAILTEC B, 2 modules, Vers. III low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x31.25mm
B6501229 RAILTEC B, 2 modules, Vers. low profile

B6501229

RAILTEC B, 2 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 2 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6501229

RAILTEC B, 2 modules, Vers. low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x89.6x31.25mm
B6502110 RAILTEC B, 3 modules, Vers. V

B6502110

RAILTEC B, 3 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin

Supply 1 base part with locking clip, 1 top part

Close

B6502110

RAILTEC B, 3 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502111

B6502111

RAILTEC B, 3 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6502111

RAILTEC B, 3 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502112 RAILTEC B, 3 modules, Vers. II

B6502112

RAILTEC B, 3 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (9-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6502112

RAILTEC B, 3 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502113 RAILTEC B, 3 modules, Vers. III

B6502113

RAILTEC B, 3 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6502113

RAILTEC B, 3 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502114

B6502114

RAILTEC B, 3 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6502114

RAILTEC B, 3 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502115 RAILTEC B, 3 modules, Vers. II

B6502115

RAILTEC B, 3 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (9-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6502115

RAILTEC B, 3 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502116 RAILTEC B, 3 modules, Vers. III

B6502116

RAILTEC B, 3 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6502116

RAILTEC B, 3 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502117

B6502117

RAILTEC B, 3 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6502117

RAILTEC B, 3 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502118 RAILTEC B, 3 modules, Vers. IV

B6502118

RAILTEC B, 3 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6502118

RAILTEC B, 3 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502119

B6502119

RAILTEC B, 3 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin

Supply 1 base part with locking clip, 1 top part

Close

B6502119

RAILTEC B, 3 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x86x58mm
B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6502121

RAILTEC B, 3 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
52.5x90x58mm
B6503110 RAILTEC B, 4 modules, Vers. V

B6503110

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Close

B6503110

RAILTEC B, 4 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503111 RAILTEC B, 4 modules, Vers. I

B6503111

RAILTEC B, 4 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (24 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6503111

RAILTEC B, 4 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503112 RAILTEC B, 4 modules, Vers. II

B6503112

RAILTEC B, 4 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6503112

RAILTEC B, 4 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503113 RAILTEC B, 4 modules, Vers. III

B6503113

RAILTEC B, 4 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6503113

RAILTEC B, 4 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503114 RAILTEC B, 4 modules, Vers. I

B6503114

RAILTEC B, 4 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (24 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6503114

RAILTEC B, 4 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503115 RAILTEC B, 4 modules, Vers. II

B6503115

RAILTEC B, 4 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6503115

RAILTEC B, 4 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503116 RAILTEC B, 4 modules, Vers. III

B6503116

RAILTEC B, 4 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6503116

RAILTEC B, 4 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503117 RAILTEC B, 4 modules, Vers. IV

B6503117

RAILTEC B, 4 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6503117

RAILTEC B, 4 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503118 RAILTEC B, 4 modules, Vers. IV

B6503118

RAILTEC B, 4 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6503118

RAILTEC B, 4 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503119 RAILTEC B, 4 modules, Vers. V

B6503119

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Close

B6503119

RAILTEC B, 4 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503121 RAILTEC B, 4 modules, Vers. VI

B6503121

RAILTEC B, 4 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6503121

RAILTEC B, 4 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x90x58mm
B6503223 RAILTEC B, 4 modules, Vers. III   low profile

B6503223

RAILTEC B, 4 modules, Vers. III low profile Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Closed case with a generous operating area for displays, operating elements and interfaces

Supply 1 base part with locking clip, 1 top part

Close

B6503223

RAILTEC B, 4 modules, Vers. III low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x31.25mm
B6503229 RAILTEC B, 4 modules, Vers. low profile

B6503229

RAILTEC B, 4 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6503229

RAILTEC B, 4 modules, Vers. low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x89.6x31.25mm
B6504110 RAILTEC B, 6 modules, Vers. V

B6504110

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Close

B6504110

RAILTEC B, 6 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504111 RAILTEC B, 6 modules, Vers. I

B6504111

RAILTEC B, 6 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (36 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6504111

RAILTEC B, 6 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504112 RAILTEC B, 6 modules, Vers. II

B6504112

RAILTEC B, 6 modules, Vers. II Case corresponds to DIN 43880,size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6504112

RAILTEC B, 6 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504113 RAILTEC B, 6 modules, Vers. III

B6504113

RAILTEC B, 6 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6504113

RAILTEC B, 6 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504114 RAILTEC B, 6 modules, Vers. I

B6504114

RAILTEC B, 6 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (36 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6504114

RAILTEC B, 6 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504115 RAILTEC B, 6 modules, Vers. II

B6504115

RAILTEC B, 6 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6504115

RAILTEC B, 6 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504116 RAILTEC B, 6 modules, Vers. III

B6504116

RAILTEC B, 6 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6504116

RAILTEC B, 6 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504117 RAILTEC B, 6 modules, Vers. IV

B6504117

RAILTEC B, 6 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6504117

RAILTEC B, 6 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504118 RAILTEC B, 6 modules, Vers. IV

B6504118

RAILTEC B, 6 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6504118

RAILTEC B, 6 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504119 RAILTEC B, 6 modules, Vers. V

B6504119

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Close

B6504119

RAILTEC B, 6 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6504121

RAILTEC B, 6 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm
B6504223 RAILTEC B, 6 modules, Vers. III   low profile

B6504223

RAILTEC B, 6 modules, Vers. III low profile Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Closed case with a generous operating area for displays, operating elements and interfaces

Supply 1 base part with locking clip, 1 top part

Close

B6504223

RAILTEC B, 6 modules, Vers. III low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x31.25mm
B6504229 RAILTEC B, 6 modules, Vers. low profile

B6504229

RAILTEC B, 6 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6504229

RAILTEC B, 6 modules, Vers. low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x89.6x31.25mm
B6505110 RAILTEC B, 9 modules, Vers. V

B6505110

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Close

B6505110

RAILTEC B, 9 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505111 RAILTEC B, 9 modules, Vers. I

B6505111

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6505111

RAILTEC B, 9 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505112 RAILTEC B, 9 modules, Vers. II

B6505112

RAILTEC B, 9 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6505112

RAILTEC B, 9 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505113 RAILTEC B, 9 modules, Vers. III

B6505113

RAILTEC B, 9 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6505113

RAILTEC B, 9 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505114 RAILTEC B, 9 modules, Vers. I

B6505114

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6505114

RAILTEC B, 9 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505115 RAILTEC B, 9 modules, Vers. II

B6505115

RAILTEC B, 9 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6505115

RAILTEC B, 9 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505116 RAILTEC B, 9 modules, Vers. III

B6505116

RAILTEC B, 9 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6505116

RAILTEC B, 9 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505117 RAILTEC B, 9 modules, Vers. IV

B6505117

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6505117

RAILTEC B, 9 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505118 RAILTEC B, 9 modules, Vers. IV

B6505118

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6505118

RAILTEC B, 9 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505119 RAILTEC B, 9 modules, Vers. V

B6505119

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Close

B6505119

RAILTEC B, 9 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6505121

RAILTEC B, 9 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm
B6505223 RAILTEC B, 9 modules, Vers. III   low profile

B6505223

RAILTEC B, 9 modules, Vers. III low profile Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Closed case with a generous operating area for displays, operating elements and interfaces

Supply 1 base part with locking clip, 1 top part

Close

B6505223

RAILTEC B, 9 modules, Vers. III low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x31.25mm
B6505229 RAILTEC B, 9 modules, Vers. low profile

B6505229

RAILTEC B, 9 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6505229

RAILTEC B, 9 modules, Vers. low profile
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157.5x89.6x31.25mm
B6506110 RAILTEC B, 12 modules, Vers. V

B6506110

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Close

B6506110

RAILTEC B, 12 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506111 RAILTEC B, 12 modules, Vers. I

B6506111

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6506111

RAILTEC B, 12 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506112 RAILTEC B, 12 modules, Vers. II

B6506112

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6506112

RAILTEC B, 12 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506113 RAILTEC B, 12 modules, Vers. III

B6506113

RAILTEC B, 12 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6506113

RAILTEC B, 12 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506114 RAILTEC B, 12 modules, Vers. I

B6506114

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6506114

RAILTEC B, 12 modules, Vers. I
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506115 RAILTEC B, 12 modules, Vers. II

B6506115

RAILTEC B, 12 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6506115

RAILTEC B, 12 modules, Vers. II
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506116 RAILTEC B, 12 modules, Vers. III

B6506116

RAILTEC B, 12 modules, Vers. III Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6506116

RAILTEC B, 12 modules, Vers. III
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506117 RAILTEC B, 12 modules, Vers. IV

B6506117

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6506117

RAILTEC B, 12 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506118 RAILTEC B, 12 modules, Vers. IV

B6506118

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6506118

RAILTEC B, 12 modules, Vers. IV
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506119 RAILTEC B, 12 modules, Vers. V

B6506119

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Close

B6506119

RAILTEC B, 12 modules, Vers. V
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6506121

RAILTEC B, 12 modules, Vers. VI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6511111 RAILTEC B, 2 modules, Vers. XI

B6511111

RAILTEC B, 2 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6511111

RAILTEC B, 2 modules, Vers. XI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6511112 RAILTEC B, 2 modules, Vers. XII

B6511112

RAILTEC B, 2 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (5-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6511112

RAILTEC B, 2 modules, Vers. XII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6511113 RAILTEC B, 2 modules, Vers. XIII

B6511113

RAILTEC B, 2 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6511113

RAILTEC B, 2 modules, Vers. XIII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6513111 RAILTEC B, 4 modules, Vers. XI

B6513111

RAILTEC B, 4 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6513111

RAILTEC B, 4 modules, Vers. XI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6513112 RAILTEC B, 4 modules, Vers. XII

B6513112

RAILTEC B, 4 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6513112

RAILTEC B, 4 modules, Vers. XII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6513113 RAILTEC B, 4 modules, Vers. XIII

B6513113

RAILTEC B, 4 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6513113

RAILTEC B, 4 modules, Vers. XIII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6514111 RAILTEC B, 6 modules, Vers. XI

B6514111

RAILTEC B, 6 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6514111

RAILTEC B, 6 modules, Vers. XI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6514112 RAILTEC B, 6 modules, Vers. XII

B6514112

RAILTEC B, 6 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6514112

RAILTEC B, 6 modules, Vers. XII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6514113 RAILTEC B, 6 modules, Vers. XIII

B6514113

RAILTEC B, 6 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6514113

RAILTEC B, 6 modules, Vers. XIII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6515111 RAILTEC B, 9 modules, Vers. XI

B6515111

RAILTEC B, 9 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6515111

RAILTEC B, 9 modules, Vers. XI
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6515112 RAILTEC B, 9 modules, Vers. XII

B6515112

RAILTEC B, 9 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 13-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Close

B6515112

RAILTEC B, 9 modules, Vers. XII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6515113 RAILTEC B, 9 modules, Vers. XIII

B6515113

RAILTEC B, 9 modules, Vers. XIII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.

Supply 1 base part with locking clip, 1 top part

Close

B6515113

RAILTEC B, 9 modules, Vers. XIII
product added to your list
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

Customising options for B6600334

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
