Accessories for enclosures
A9106113

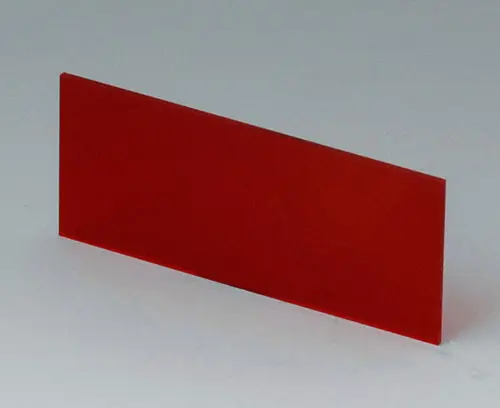

Front / rear panel V 110
Front panel for SHELL-TYPE CASE V and O. For case A940633.
Supply1 front panel
Generate Your PDF Datasheet for A9106113
Please select the product details you would like to include in the PDF.
Add to my basket
A9406333

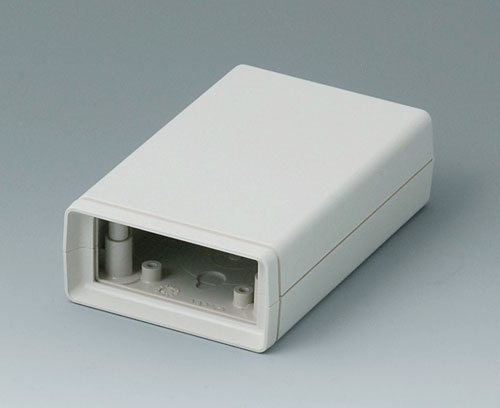

SHELL-TYPE CASES V 110, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406333
SHELL-TYPE CASES V 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x33mm
A9406334
SHELL-TYPE CASES V 110, Vers. II
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment
Supply 1 top and base part, battery compartment lid, assembly kit
A9406334
SHELL-TYPE CASES V 110, Vers. IIproduct added to your list
off-white RAL 9002
72x114x33mm
Customising options for A9106113
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Width
59.3 mm
Height
25 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1.8 g
Customs tariff number
(OKW product)
(OKW product)
39205100
Country of manufacture
Other country
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9106113 and don't forget to request a quotation!
