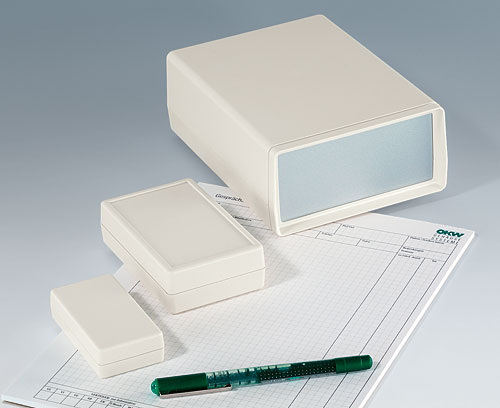

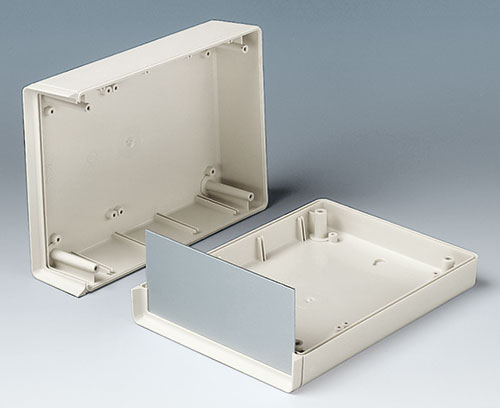

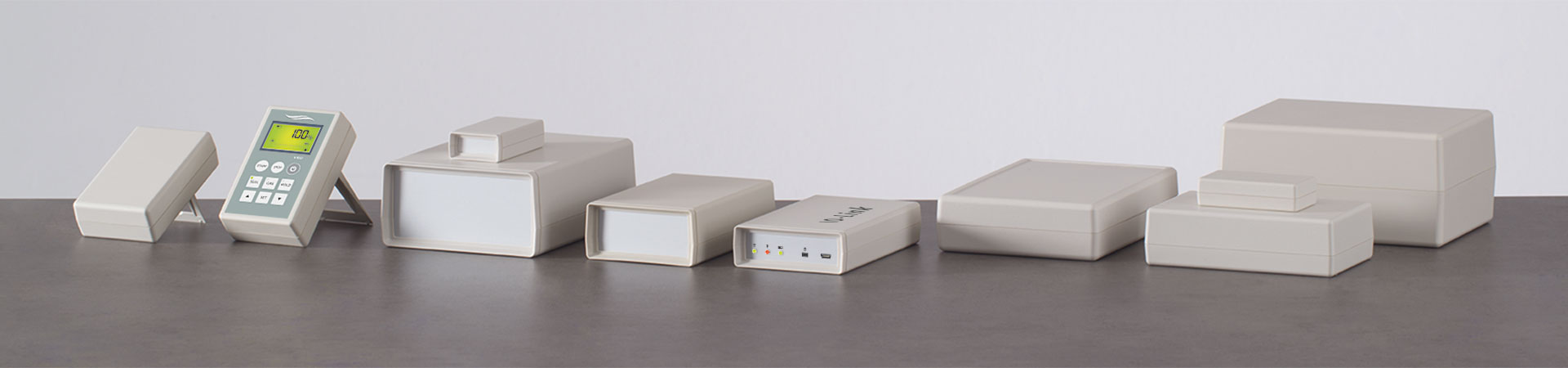

Shell-Type Cases

Universal instrument enclosures

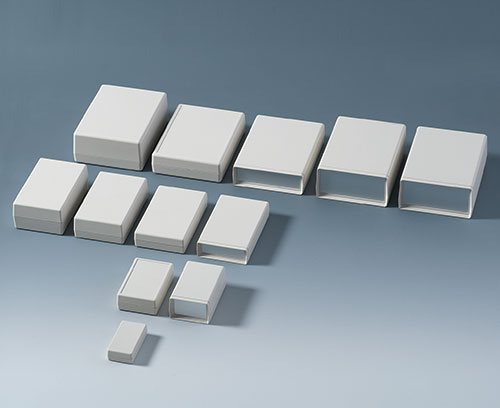

Our comprehensive SHELL-TYPE CASE range of plastic enclosures available in different sizes, heights and types. Simply choose the case that meets your individual requirements!

  • fifty one models in three different types:
    type V – with open front for a panel (acc.)

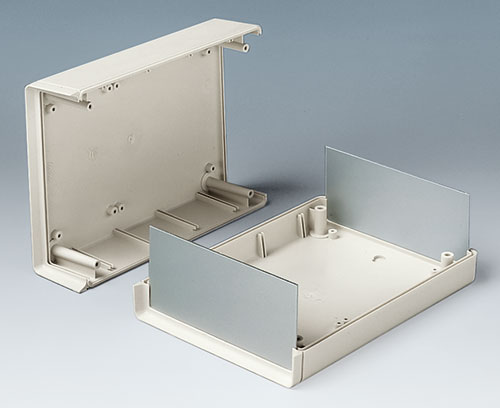

    type O – with open front and rear for panels (acc.)

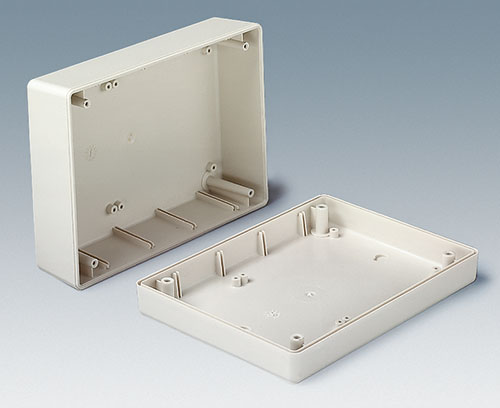

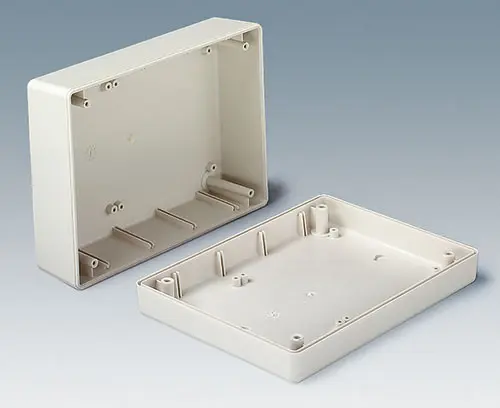

    type G – with closed front and rear
  • robust construction with tongue and groove
  • internal guide ridges for vertical mounting of partitions and PCBs
  • internal screw pillars for PCBs etc.

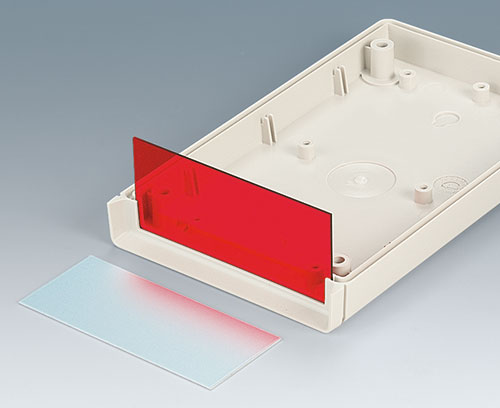

  • front and rear panels in aluminium or PMMA red (plexiglas®) available as accessories

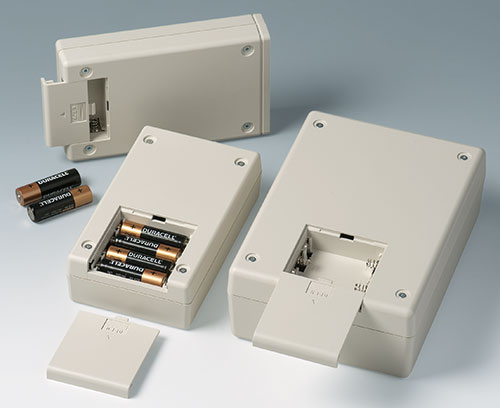

  • versions with battery compartment for 2 x AA, 4 x AA, 1 x 9 V or 2 x 9 V cells (types V and G)

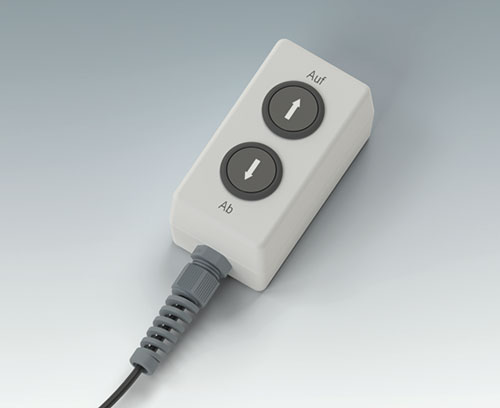

  • closed version (type G) also available with recessed top

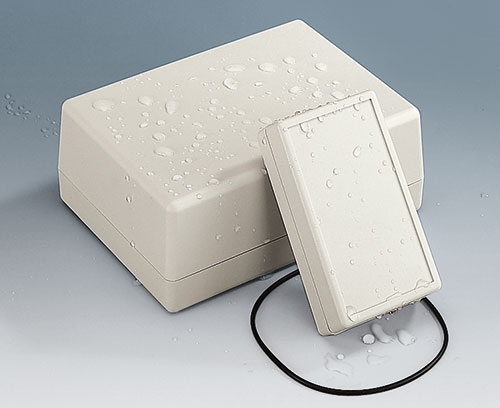

  • protection class IP 65 for closed versions (type G) without battery compartment when using the sealing kit (accessory)

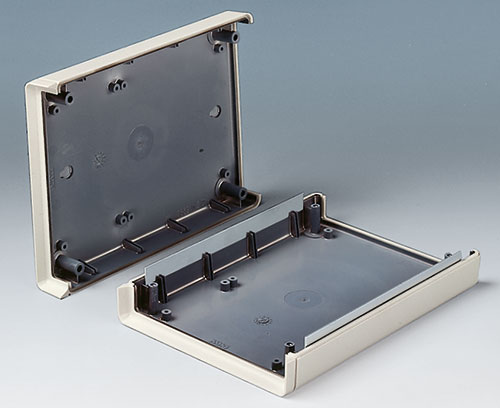

  • EMC: on request the SHELL-TYPE CASES are also available with aluminium metalisation; aluminium contact strips (accessories) provide additional electrical continuity between the top and base shells of the shielded cases

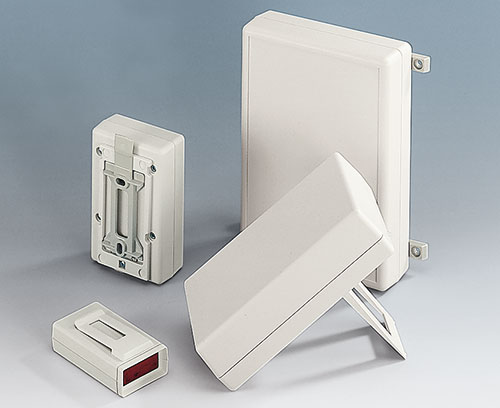

  • wall mounting brackets and wall suspension elements as accessories
  • additional functions with universal accessories

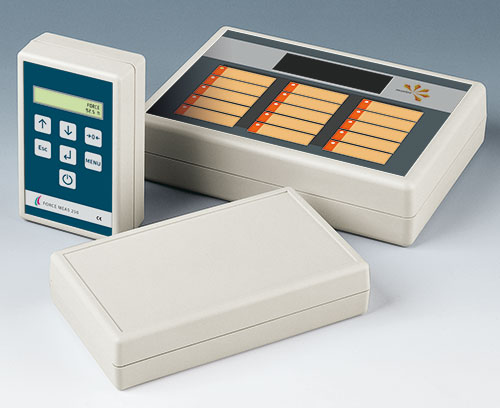

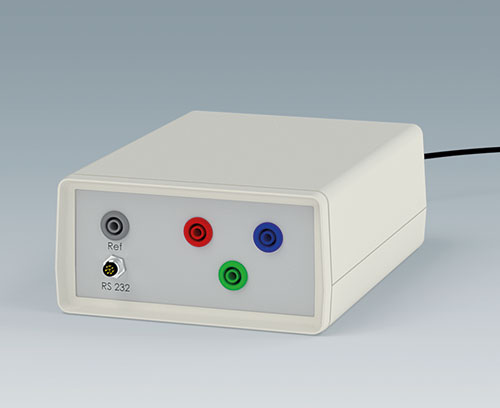

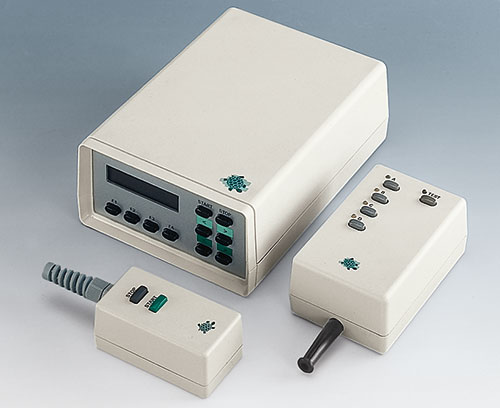

  • Application Examples

Application fields

  • Measuring and control technology
  • Medical, wellness and laboratory technology
  • Peripheral devices and interfaces, switchboxes etc.
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list
AltText

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Close

A9100001

Ring eyelet
product added to your list
PA 6
volcano
AltText

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your list
PA 6
volcano
AltText

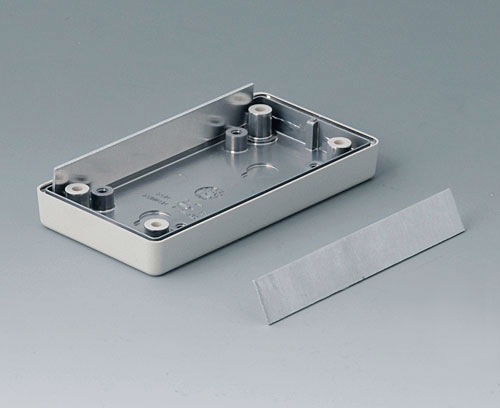

A9104073

Contact-strips V, G 85 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9104073

Contact-strips V, G 85
product added to your list
Aluminium
AltText

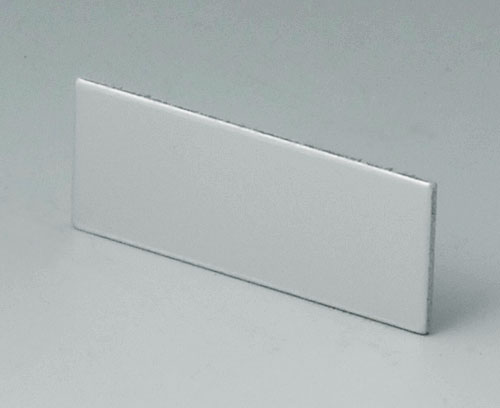

A9104111

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Close

A9104111

Front / rear panel V 85
product added to your list
Aluminium
matt anodised
36x14.6x1mm
AltText

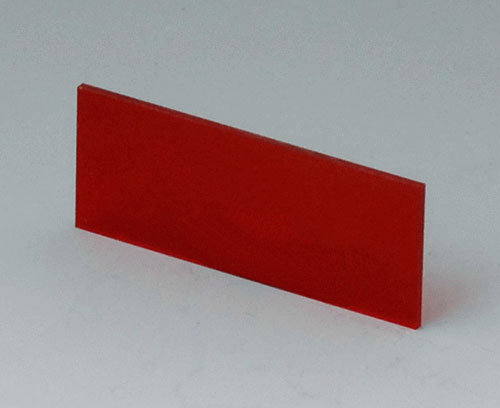

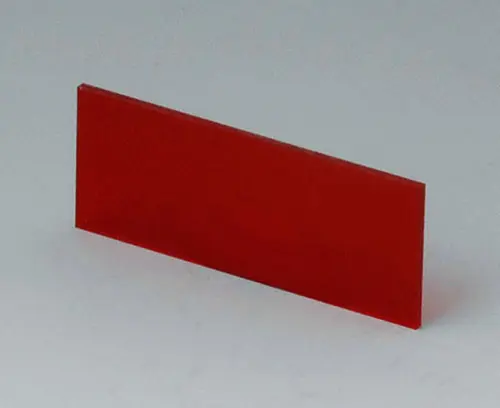

A9104113

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

Close

A9104113

Front / rear panel V 85
product added to your list
Acrylic glass
red transparent
36x14.6x1mm
AltText

A9104250

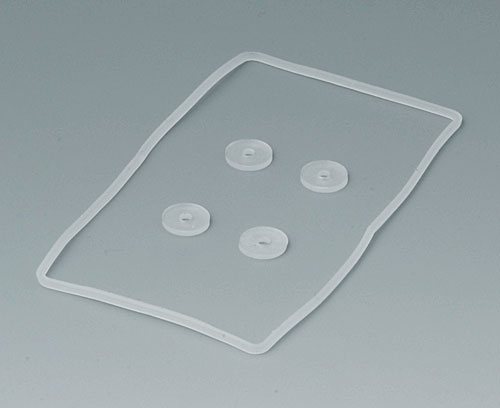

Sealing kit G 85 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Close

A9104250

Sealing kit G 85
product added to your list
AltText

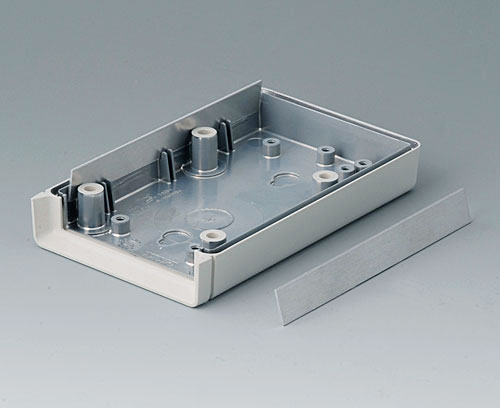

A9106095

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9106095

Contact-strips V, G 110
product added to your list
Aluminium
AltText

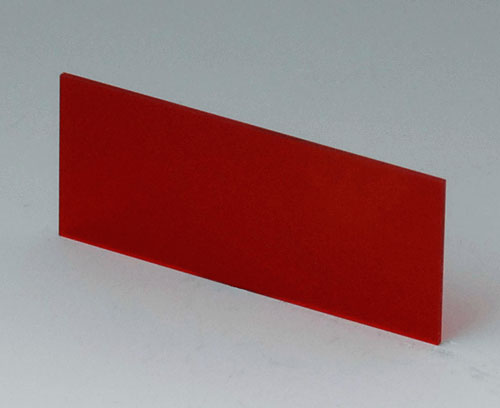

A9106113

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

Close

A9106113

Front / rear panel V 110
product added to your list
Acrylic glass
red transparent
59.3x25x1mm
AltText

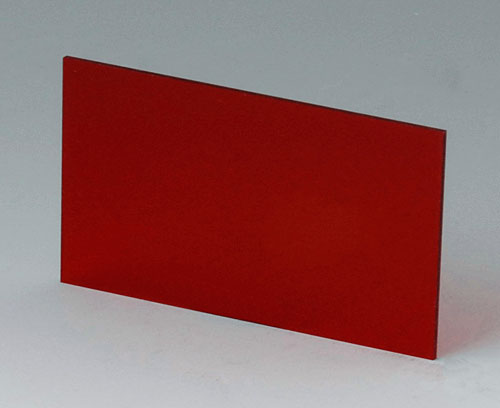

A9106123

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

Close

A9106123

Front / rear panel V 110
product added to your list
Acrylic glass
red transparent
59.3x37x1mm
AltText

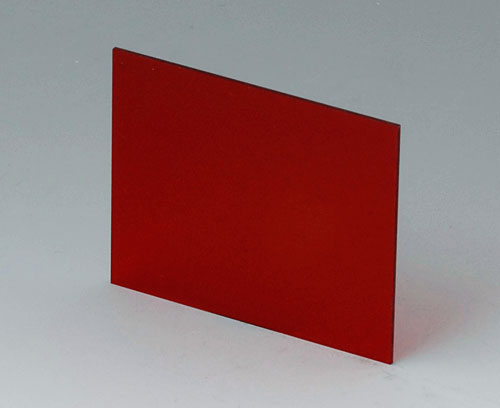

A9106223

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

Close

A9106223

Front / rear panel V 110
product added to your list
Acrylic glass
red transparent
59.3x49x1mm
AltText

A9106352

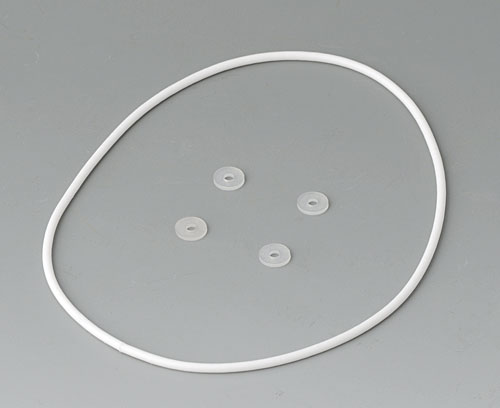

Sealing kit G 110 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Close

A9106352

Sealing kit G 110
product added to your list
AltText

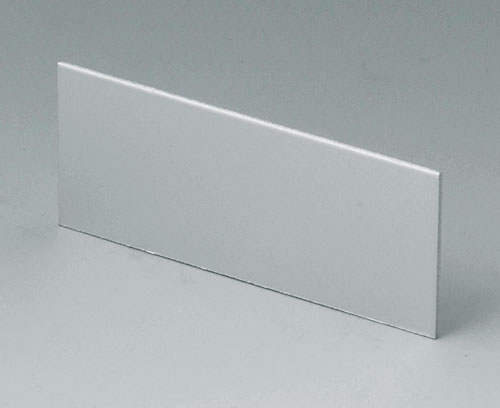

A9107111

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

Close

A9107111

Front / rear panel V 110
product added to your list
Aluminium
matt anodised
59.3x25x1mm
AltText

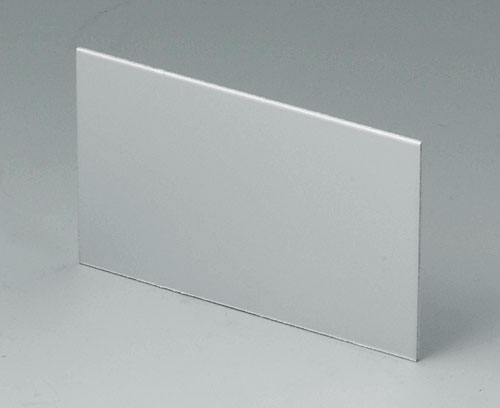

A9107121

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

Close

A9107121

Front / rear panel V 110
product added to your list
Aluminium
matt anodised
59.3x37x1mm
AltText

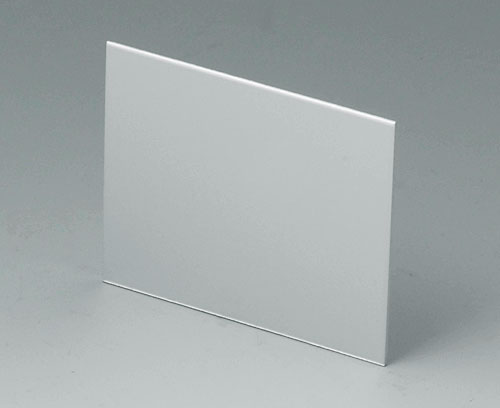

A9107221

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

Close

A9107221

Front / rear panel V 110
product added to your list
Aluminium
matt anodised
59.3x49x1mm
AltText

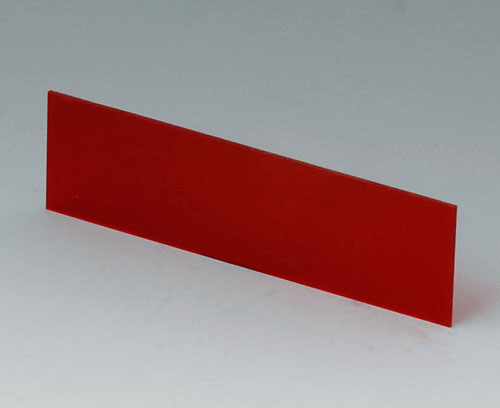

A9108113

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Close

A9108113

Front / rear panel V, O 155
product added to your list
Acrylic glass
red transparent
81.9x23.6x1mm
AltText

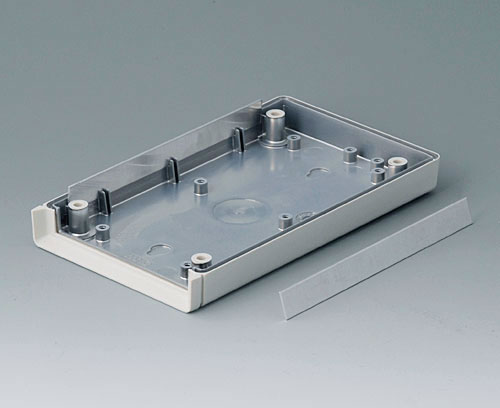

A9108120

Contact-strips V, O, G 155 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9108120

Contact-strips V, O, G 155
product added to your list
Aluminium
AltText

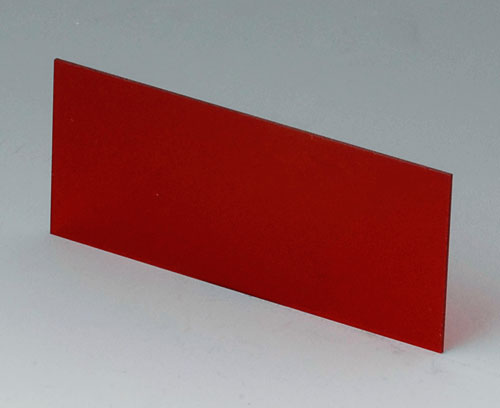

A9108123

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

Close

A9108123

Front / rear panel V, O 155
product added to your list
Acrylic glass
red transparent
81.9x35.6x1mm
AltText

A9108223

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply 1 front panel

Close

A9108223

Front / rear panel V, O 155
product added to your list
Acrylic glass
red transparent
81.9x47.6x1mm
AltText

A9108486

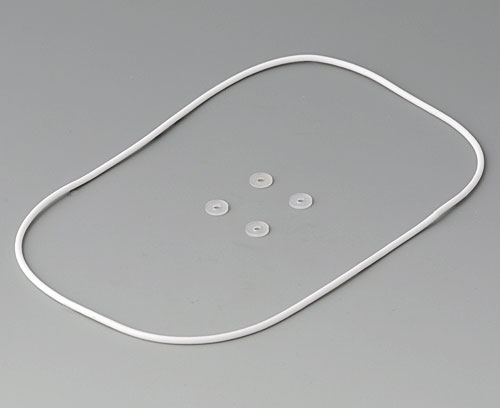

Sealing kit G 155 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Close

A9108486

Sealing kit G 155
product added to your list
AltText

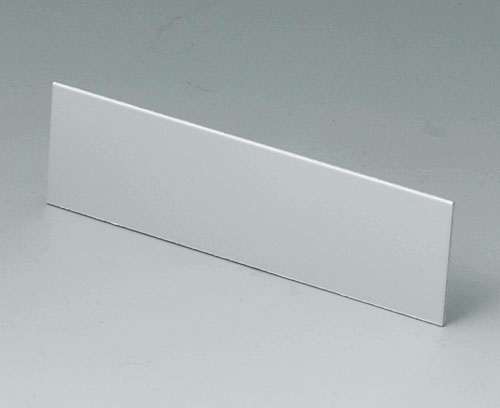

A9109111

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Close

A9109111

Front / rear panel V, O 155
product added to your list
Aluminium
matt anodised
81.9x23.6x1mm
AltText

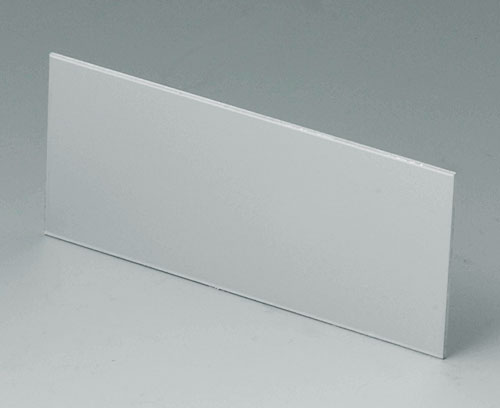

A9109121

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

Close

A9109121

Front / rear panel V, O 155
product added to your list
Aluminium
matt anodised
81.9x35.6x1mm
AltText

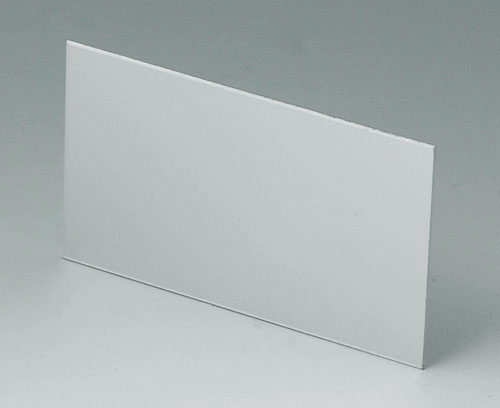

A9109221

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply 1 front panel

Close

A9109221

Front / rear panel V, O 155
product added to your list
Aluminium
matt anodised
81.9x47.6x1mm
AltText

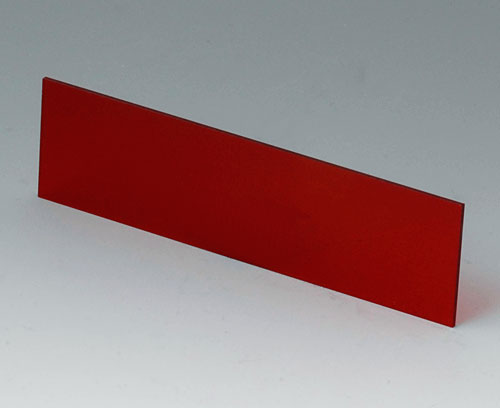

A9113113

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

Close

A9113113

Front / rear panel V, O 190
product added to your list
Acrylic glass
red transparent
124.2x33.6x1.5mm
AltText

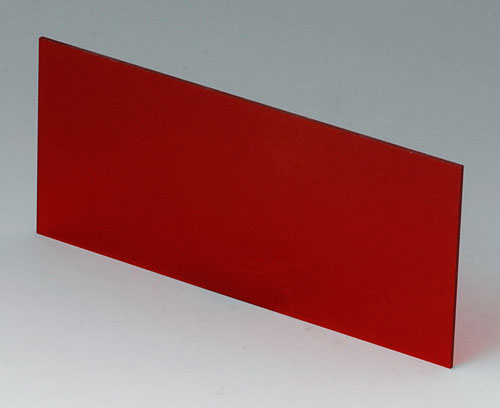

A9113123

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

Close

A9113123

Front / rear panel V, O 190
product added to your list
Acrylic glass
red transparent
124.2x56.6x1.5mm
AltText

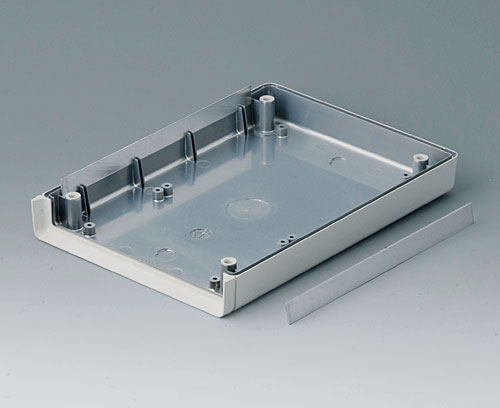

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9113150

Contact-strips V, O, G 190
product added to your list
Aluminium
AltText

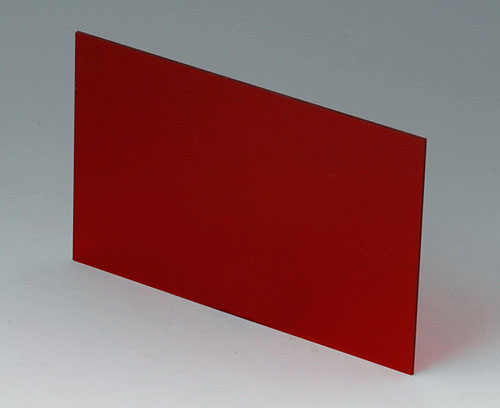

A9113223

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

Close

A9113223

Front / rear panel V, O 190
product added to your list
Acrylic glass
red transparent
124.2x79.6x1.5mm
AltText

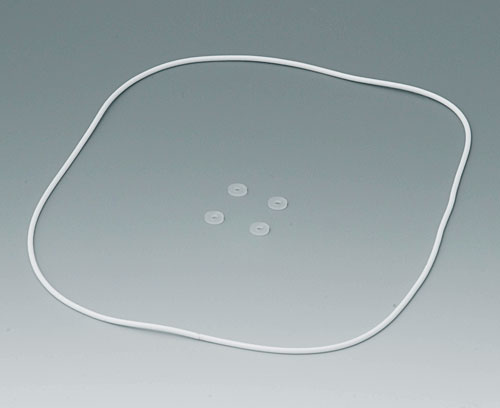

A9113630

Sealing kit G 190 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Close

A9113630

Sealing kit G 190
product added to your list
AltText

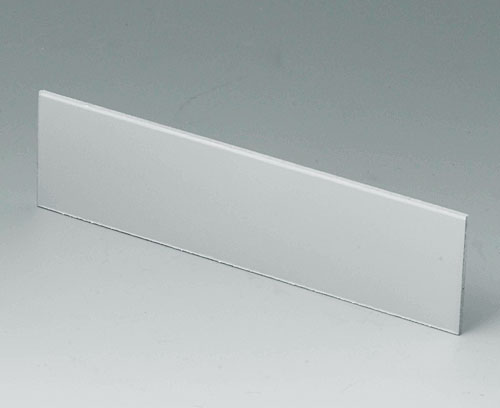

A9114111

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

Close

A9114111

Front / rear panel V, O 190
product added to your list
Aluminium
matt anodised
124.2x33.6x1.5mm
AltText

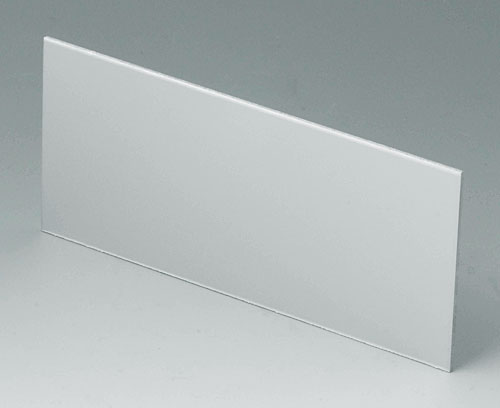

A9114121

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

Close

A9114121

Front / rear panel V, O 190
product added to your list
Aluminium
matt anodised
124.2x56.6x1.5mm
AltText

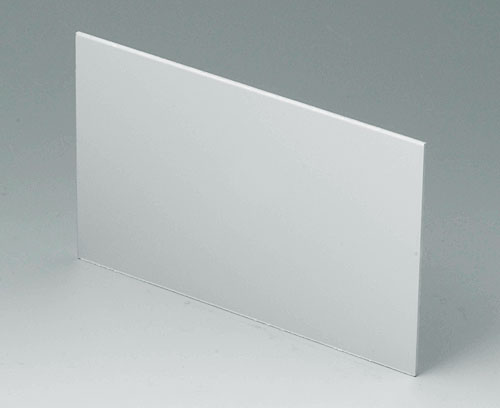

A9114221

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

Close

A9114221

Front / rear panel V, O 190
product added to your list
Aluminium
matt anodised
124.2x79.6x1.5mm
AltText

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your list
AltText

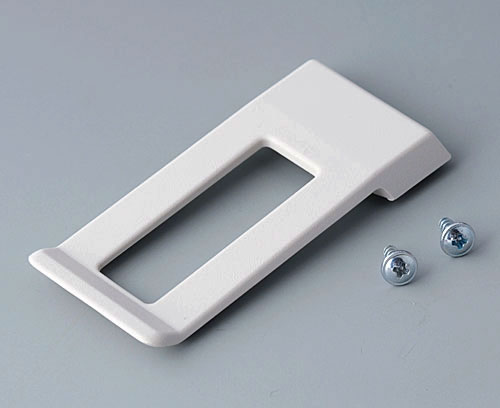

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Close

A9172107

Belt/Pocket clip
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
62x30mm
AltText

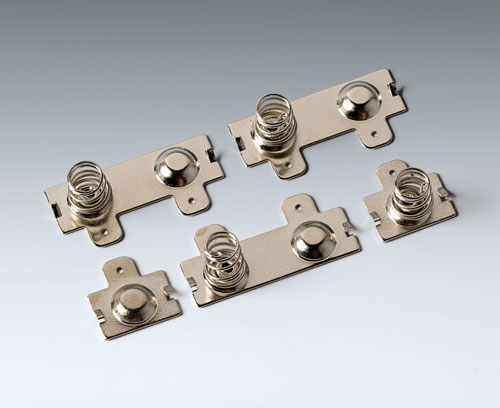

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190013

Set of battery clips, 4 x AA
product added to your list
Steel
nickel-plated
AltText

A9190014

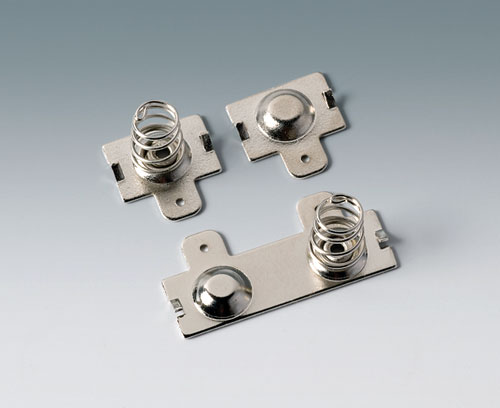

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190014

Set of battery clips, 2 x AA
product added to your list
Steel
nickel-plated
AltText

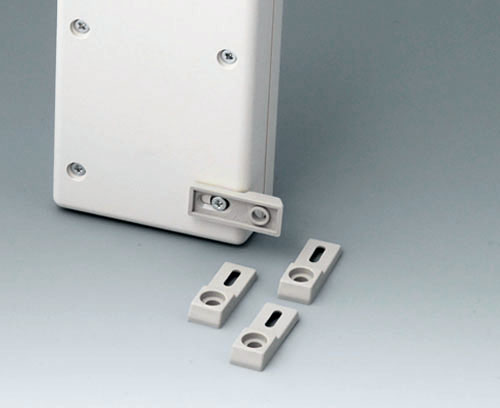

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Close

A9204108

Wall mounting brackets
product added to your list
PA 6
pebble grey RAL 7032
AltText

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent
AltText

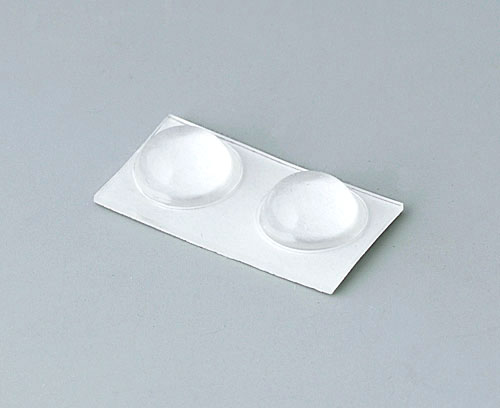

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 9.5 x 3.8 mm
product added to your list
transparent
AltText

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your list
PE foam
50x25x4mm
AltText

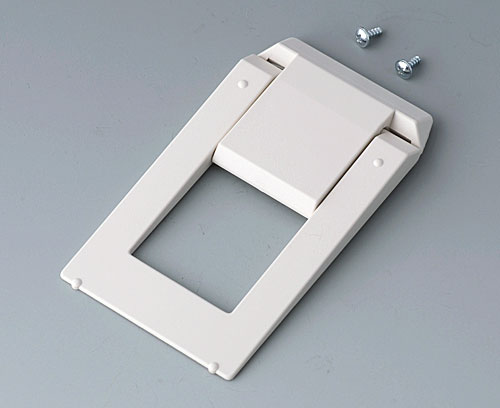

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250807

Tilt foot bar
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

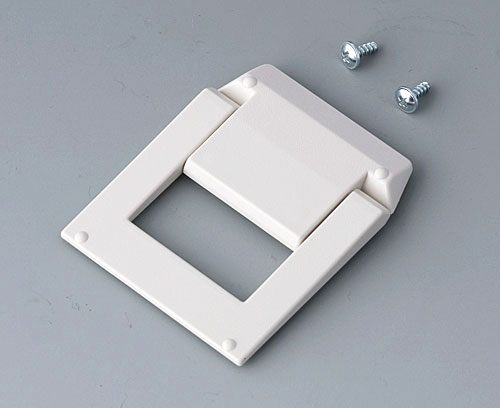

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250817

Tilt foot bar
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032
AltText

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your list
ABS (UL 94 HB)
pebble grey RAL 7032

Customising options for Shell-Type Cases

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
