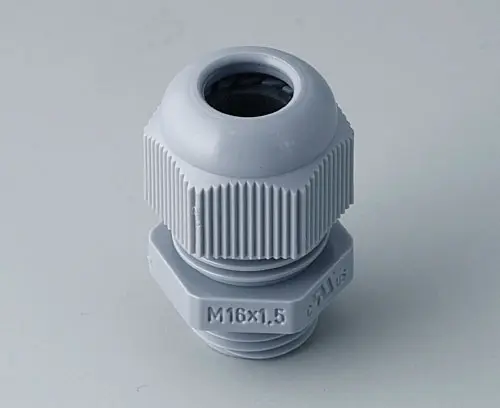

C2316418 Cable gland M16x1.5

C2316418

Cable gland M16x1.5

Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply

1 cable gland

  • Components/Accessories

Accessory

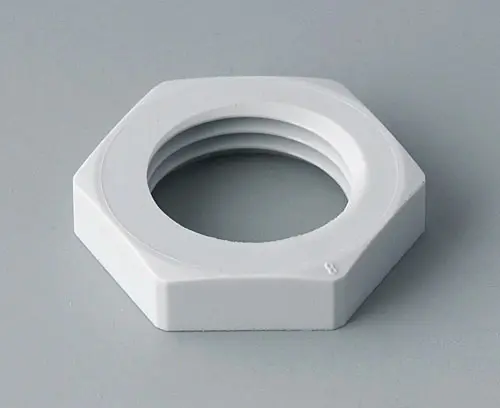

C2316117 Counternut M16x1.5

C2316117

Counternut M16x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Close

C2316117

Counternut M16x1.5 PA
light grey RAL 7035

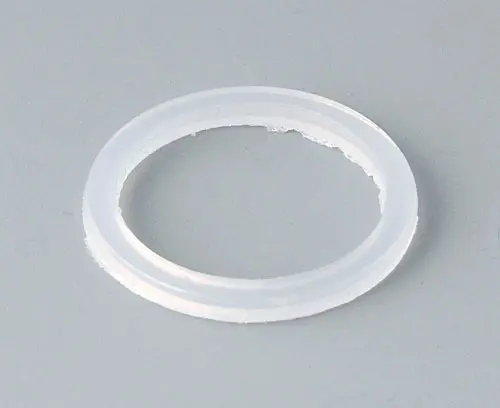

C2316126 Sealing ring for external thread M16x1.5

C2316126

Sealing ring for external thread M16x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Close

C2316126

Sealing ring for external thread M16x1.5 PE
natural-coloured
  • Technical Data
  • Purchasing Data
Material
Protection class
Colour
silver grey RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
