A9108120 Contact-strips V, O, G 155

A9108120

Contact-strips V, O, G 155

Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply

1 contact-strip

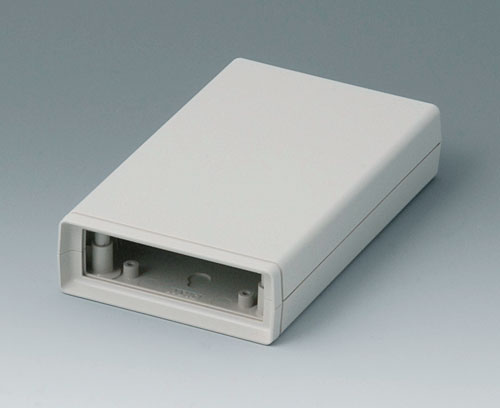

  • To be used for
A9408330 SHELL-TYPE CASES O 155, Vers. I

A9408330

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408330

SHELL-TYPE CASES O 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm

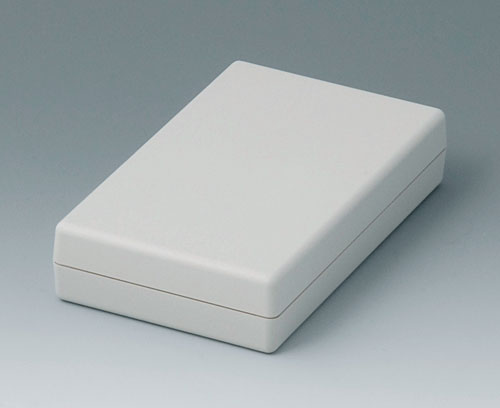

A9408331 SHELL-TYPE CASES G 155, Vers. I

A9408331

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408331

SHELL-TYPE CASES G 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
IP 65 opt.

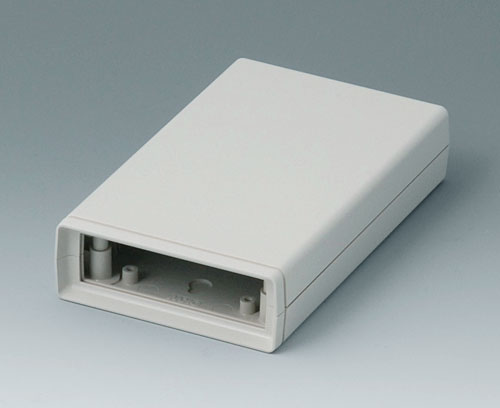

A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408333

SHELL-TYPE CASES V 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408335 SHELL-TYPE CASES G 155, Vers. IV

A9408335

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408335

SHELL-TYPE CASES G 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408336 SHELL-TYPE CASES V 155, Vers. IV

A9408336

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408336

SHELL-TYPE CASES V 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408340 SHELL-TYPE CASES O 155, Vers. I

A9408340

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408340

SHELL-TYPE CASES O 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm

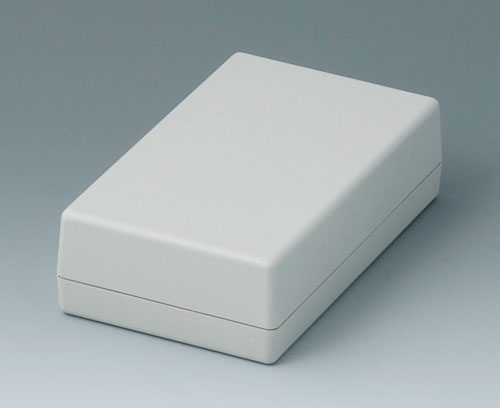

A9408341 SHELL-TYPE CASES G 155, Vers. I

A9408341

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408341

SHELL-TYPE CASES G 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
IP 65 opt.

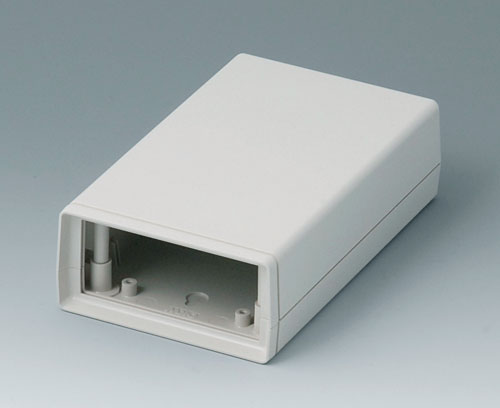

A9408343 SHELL-TYPE CASES V 155, Vers. I

A9408343

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408343

SHELL-TYPE CASES V 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408345 SHELL-TYPE CASES G 155, Vers. IV

A9408345

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408345

SHELL-TYPE CASES G 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408346 SHELL-TYPE CASES V 155, Vers. IV

A9408346

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408346

SHELL-TYPE CASES V 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm

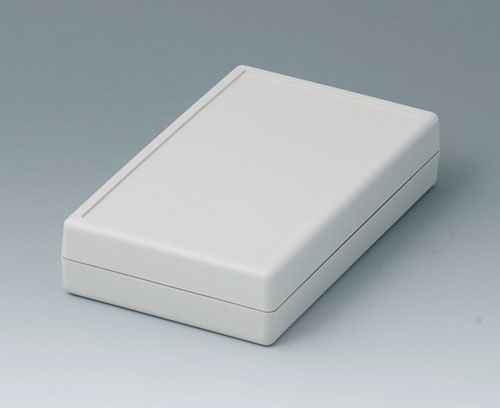

A9408351 SHELL-TYPE CASES G 155, Vers. I

A9408351

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408351

SHELL-TYPE CASES G 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33.5mm
IP 65 opt.
A9408355 SHELL-TYPE CASES G 155, Vers. IV

A9408355

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408355

SHELL-TYPE CASES G 155, Vers. IV
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33.5mm
A9408440 SHELL-TYPE CASES O 155, Vers. I

A9408440

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408440

SHELL-TYPE CASES O 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x155x57mm

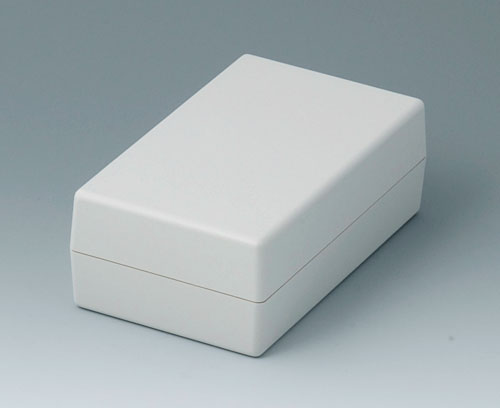

A9408441 SHELL-TYPE CASES G 155, Vers. I

A9408441

SHELL-TYPE CASES G 155, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408441

SHELL-TYPE CASES G 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x57mm
IP 65 opt.
A9408443 SHELL-TYPE CASES V 155, Vers. I

A9408443

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408443

SHELL-TYPE CASES V 155, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x57mm
A9408638 SHELL-TYPE CASES V 155, Vers. V

A9408638

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408638

SHELL-TYPE CASES V 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408648 SHELL-TYPE CASES V 155, Vers. V

A9408648

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408648

SHELL-TYPE CASES V 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408737 SHELL-TYPE CASES G 155, Vers. V

A9408737

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408737

SHELL-TYPE CASES G 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33mm
A9408747 SHELL-TYPE CASES G 155, Vers. V

A9408747

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408747

SHELL-TYPE CASES G 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408757 SHELL-TYPE CASES G 155, Vers. V

A9408757

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408757

SHELL-TYPE CASES G 155, Vers. V
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
95x158x33.5mm
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3.8 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
