Tilt foot bar and case feet
SOFT-CASE with tilt foot barCOMTEC enclosure with anti-slide feetMOTEC enclosure with case feetTilt foot bar and case feet

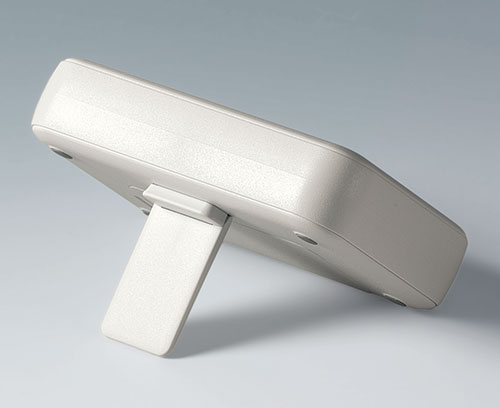

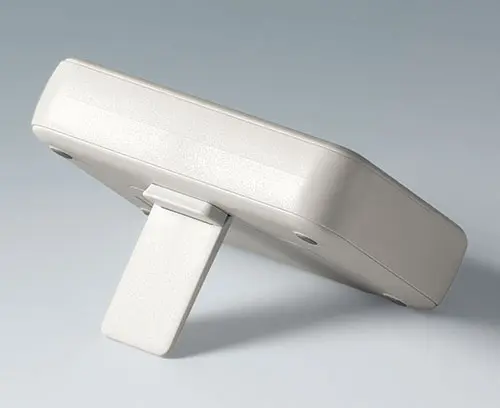

SOFT-CASE with tilt foot bar

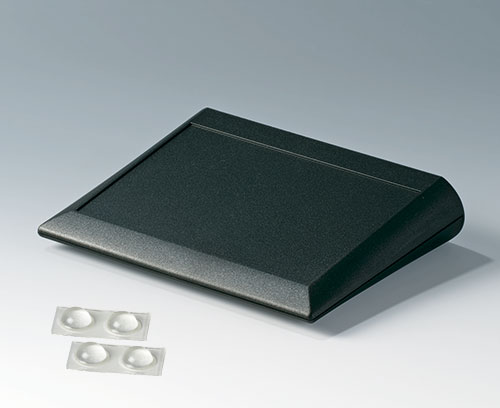

COMTEC enclosure with anti-slide feet

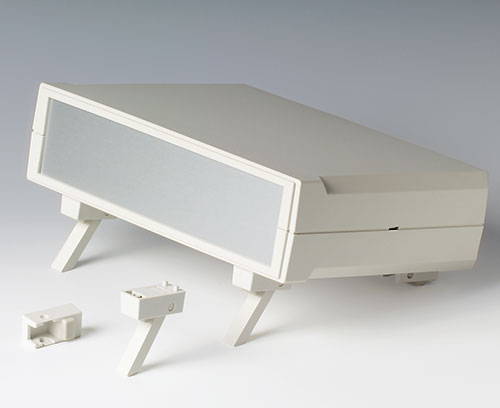

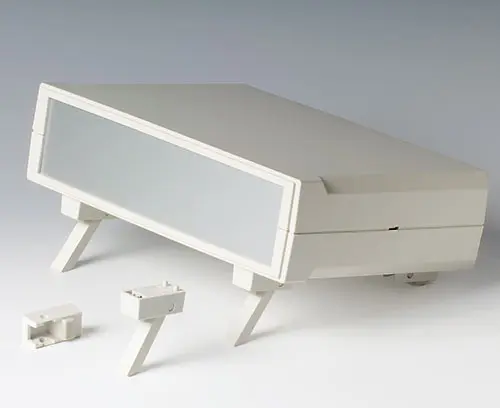

MOTEC enclosure with case feet

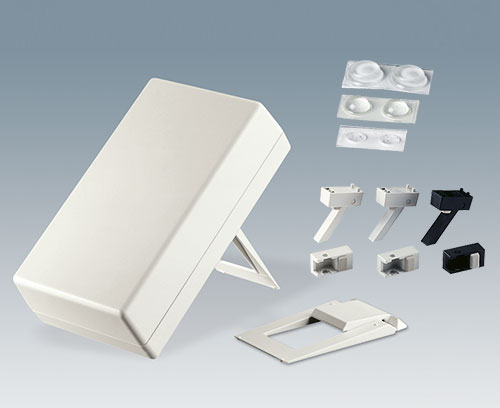

Tilt foot bar and case feet

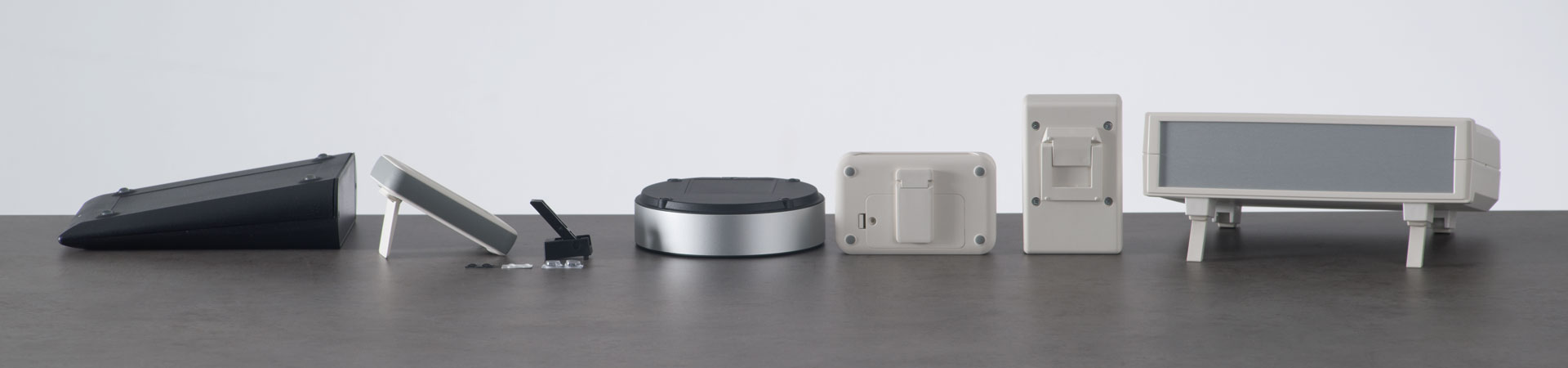

Tilt foot bar, tilt feet

  • Tilt and swivel carry handle bars made of plastic and diecast zinc. With matching anodised aluminium profile, cut to the correct width for your enclosure, and supplied as a separate component.
  • For small plastic enclosures we also offer a range of tilt foot bars which can be fitted anywhere on the base, and provide an ergonomic reading angle.


  • Browse Full List
  • Catalogue Documents
NEW PRODUCT
View

A0350007  Add to my list
Tilt foot

ABS (UL 94 HB)
off-white RAL 9002

A9152057  Add to my list
Tilt foot bar

ABS (UL 94 HB)
off-white RAL 9002

A9152058  Add to my list
Tilt foot bar

ABS (UL 94 HB)
lava

A9152059  Add to my list
Tilt foot bar

ABS (UL 94 HB)
black RAL 9005

A9210290  Add to my list
Rubber feet 9.5 x 3.8 mm

transparent

A9212330  Add to my list
Rubber feet 12 x 3.5 mm

transparent

A9250807  Add to my list
Tilt foot bar

ABS (UL 94 HB)
off-white RAL 9002

A9250809  Add to my list
Tilt foot bar

ABS (UL 94 HB)
black RAL 9005

A9250817  Add to my list
Tilt foot bar

ABS (UL 94 HB)
off-white RAL 9002

A9250819  Add to my list
Tilt foot bar

ABS (UL 94 HB)
black RAL 9005

A9257105  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
light grey RAL 7035

A9257107  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
off-white RAL 9002

A9257109  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
black RAL 9005

A9257205  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
light grey RAL 7035

A9257207  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
off-white RAL 9002

A9257209  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
black RAL 9005

A9257404  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
anthracite grey RAL 7016
⌀30x12mm

A9257405  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
light grey RAL 7035
⌀30x12mm

A9257407  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
off-white RAL 9002
⌀30x12mm

A9257409  Add to my list
Case feet, Vers. I

ABS (UL 94 HB)
black RAL 9005
⌀30x12mm

A9257504  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
anthracite grey RAL 7016
⌀30x12mm

A9257505  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
light grey RAL 7035
⌀30x12mm

A9257507  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
off-white RAL 9002
⌀30x12mm

A9257509  Add to my list
Case feet, Vers. II

ABS (UL 94 HB)
black RAL 9005
⌀30x12mm

Accessory

A9207150  Add to my list
Rubber feet 6.5 x 2 mm

transparent

A9250809

Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply
1 tilt foot bar, assembly kit

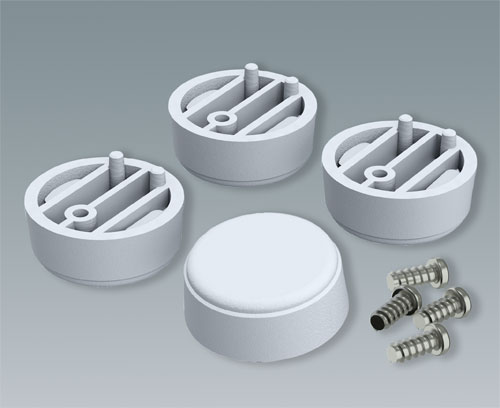

A9257405

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

A9257507

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

A9250807

Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply
1 tilt foot bar, assembly kit

A9152059

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply
1 tilt foot bar, assembly kit

A9212330

Rubber feet with self-adhesive foil facilitate a secure position.

Supply
2 rubber feet

A9257207

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

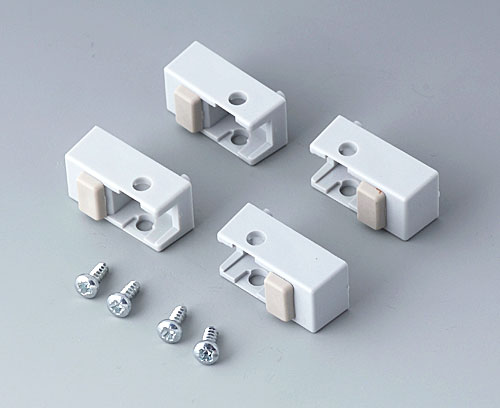

A9257105

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

A9257404

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

A9210290

Rubber feet with self-adhesive foil facilitate a secure position.

Supply
2 rubber feet

A9257109

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

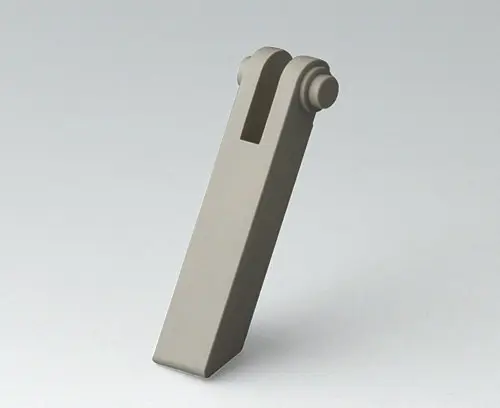

A0350007

The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply
1 tilt foot

A9250819

Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply
1 tilt foot bar, assembly kit

A9257509

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

A9152058

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply
1 tilt foot bar, assembly kit

A9207150

Rubber feet with self-adhesive foil facilitate a secure position.

Supply
2 rubber feet

A9257407

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

A9257505

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

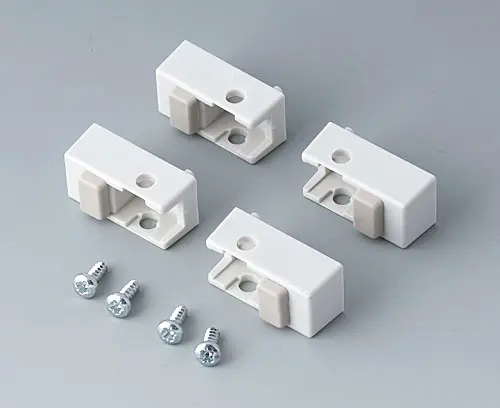

A9257107

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

A9257504

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

A9257209

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

A9250817

Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply
1 tilt foot bar, assembly kit

A9152057

Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply
1 tilt foot bar, assembly kit

A9257409

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.

Version
Without tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

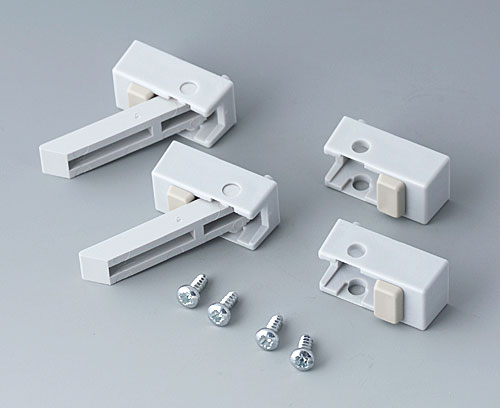

A9257205

Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Version
With tilt legs

Supply
4 foot mouldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws
