ERGO-CASE RANGE COMPLETED

New SLIM-CASE enclosures with smooth top for keypads, push-buttons, LEDs

OKW’s innovative and elegant new SLIM-CASE for mobile devices is now available in a smooth-top version for installing displays, push buttons and LEDs.

Ergonomic SLIM-CASE (IP 54/IP 65) is the new-generation handheld enclosure for mobile measuring and control applications, wireless communications, IoT/IIoT, healthcare, laboratories, offices, safety engineering and environmental technology.

SLIM-CASE underlines its aesthetic credentials with a virtually frameless, low-profile design and soft contours that enhance the ergonomics. There is plenty of space inside for PCBs, plug connectors, interfaces and sensors.

In addition to the smooth-top version, there is also a 1 mm recessed top for product labels or a 1.6 mm recessed top for a touchscreen or membrane keypad. Each of the three variants can be specified with or without a soft-touch TPE intermediate ring for extra comfort and impact protection. This offers a choice of six versions in total.

SLIM-CASE can accommodate inductive charging with the correct coil and NFC technology with Qi chargers. Power can be supplied by a flat battery mounted on the PCB.

The enclosures are available in one plan size (M) – 148 x 74 mm – and two heights: 19 mm (without TPE ring) and 22 mm (with TPE ring). Inside there are PCB mounting pillars in both the top and base.

SLIM-CASE is moulded from tough, UV-stable ASA+PC-FR (UL 94 V-0) for indoor and outdoor use. For added security, the enclosures are assembled using tamperproof Torx T8 stainless steel screws. The cases’ standard colour is off-white (RAL 9002). Prices start at £19.

Accessories include an IP 65 seal for cases without the TPE ring, a transparent front screen (for use with touchscreens), an adhesive foil (for securing the screen), self-tapping PCB screws and a Torx T8 screwdriver.

OKW can supply SLIM-CASE fully customised. Services include custom colours for the main case and TPE ring, machining, lacquering, printing, laser marking, product labels, EMC shielding and installation/assembly of accessories.

View SLIM-CASE range >>

Ergo case wearable enclosures

March 2014

OKW COMPLETES ITS ERGO-CASE HANDHELD ENCLOSURES RANGE

OKW has completed its range of advanced ERGO-CASE handheld enclosures with six new smaller XS models, giving designers a choice of 42 individual housings. The new extra small cases are ideal for compact handheld electronic devices and have an ergonomically contoured design which is very comfortable to hold or wear.

Typical applications for ERGO-CASE include personal electronics such as medical and wellness equipment, security devices, building access and dosage detectors.

The new ERGO-CASE XS consists of a top, base and intermediate ring. They are assembled with two self-tapping screws. They can be specified with no eyelets (Type I), one eyelet for a lanyard (Type II) or two lateral eyelets (Type III) for fitting the device to a wrist strap or belt.

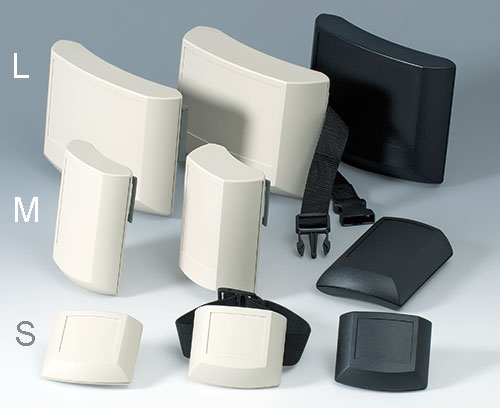

The extended range now includes four plan sizes: XS, S, M and L in flat and high models with external dimensions from 82 x 56 x 24 mm to 150 x 200 x 69 mm. The XS and S models are designed for wearing on straps or lanyards. The M and L models can be fitted to arm and belt straps or wall mounted using the accessory eyelets and wall mounting elements. L models are also available with a clear display window.

All models feature a recessed area in the top for mounting a membrane keypad or product label. Screw pillars in the top section and location pillars in the base section are provided for fitting PCBs and battery assemblies.

ERGO-CASE enclosures are moulded in ABS (UL 94 HB) in Off-white or Black. The new XS size features an intermediate ring in grey soft-touch TPE elastomer.

Accessories include belt clips, wrist straps, belt/arm straps, lanyards, eyelet kits, sealing kits, a wall mounting kit and battery cradles (2 x AAA, 1 x 9V, 2 x 9V and 4 x AA).

Customizing options for ERGO-CASE include custom colours, CNC milling and drilling of holes and cut outs, silk-screen and tampo printing of legends and logos, EMC shielding and assembly of components.

View range here >>
